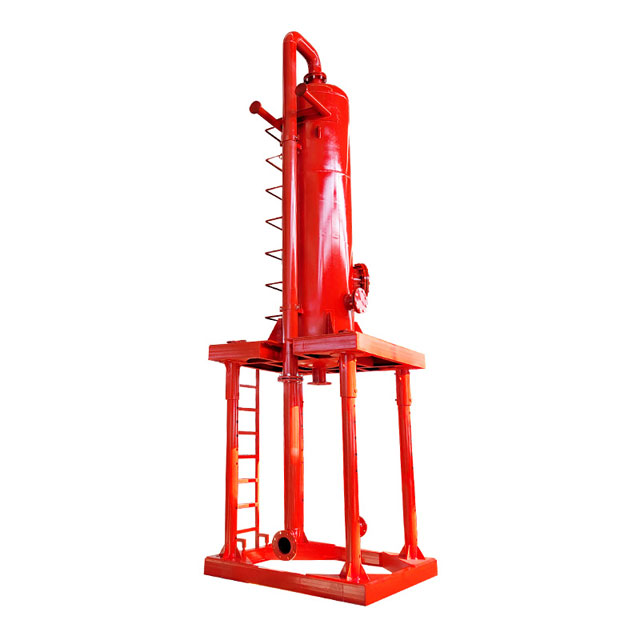

Mud Gas Separator

< >

Product Overview:

HL Petroleum produces and sells mud-gas separators, gas-mud separators, and drilling fluid-gas invasion equipment. mud-gas separators, also known as drilling fluid-mud-gas separators, are often used in conjunction with electronic ignition devices and are one of the safety equipment in oilfield drilling.

Booking Online

sales@hlsolidscontrol.com

Mud Gas Separator Details

Mud Gas Separator, also called atmospheric pressure hydrogen sulfide-proof drilling fluid liquid-gas separator is made of high-quality materials, which can effectively prevent the erosion of harmful gases and ensure the safe production of man and machine. When the drilling fluid produces gas intrusion, its specific gravity and viscosity will deviate greatly, which cannot meet the drilling requirements. In severe cases, if it is not handled in time, it will cause well kicks and even blowout accidents. The combined use of the liquid-gas separator and the electronic ignition device can ensure the smooth progress of the drilling process.
The mud gas separator produced by HL Petroleum is mainly used to treat large bubbles in the drilling fluid. When gas intrusion occurs, it performs throttling and exhaust operations. When overflow occurs, it performs well killing operations. The flow manifold enters the mud gas separator for degassing treatment.

Mud Gas Separator Advantage
1.Prevent blowout
2.Adjust the specific gravity of mud
3.Mechanical separation, zero energy consumption
4.Special material, resistant to H2S corrosion

Mud Gas Separator Parameters

Model Parameter	HYQ800	HYQ1000	HYQ1200	HYQ1400
Liquid processing capacity m3/h	6000	7000	8000	8000
Gas processing capacity m3/h	10000	12000	14700	14700
Cylinder diameter mm	800	1000	1200	1400
Cylinder volume m3	≥1.6	≥3.0	≥4.0	≥6.0
Design pressure MPa	1.0	1.0	1.0	1.0
Outlet diameter mm	159(6”)	219(8”)	219(8”)	219(8”)
Discharge port diameter mm	219(8”)	219(8”)	273(10”)	273(10”)
Inlet diameter mm	133(4”)	133(4”)	133(4”)	133(4”)
Dimensions mm	1900×1900×5700	2000×2000×5920	2100×2100×6700	2300×2300×7000
Weight kg	1900	2300	3200	3800

mud gas separator

Mud Gas Separator Structure

Mud Gas Separator Structure
1-Base 2-Feeding pipe 3-Manhole 4-Mud discharge pipe 5-Shell 6-Baffle

7-Impingement plate 8-Safety valve 9-Pressure gage 10-Gas discharge pipe 11-Ladder

Poor Boy Degasser Working Principle

1.Gas outlet 2.Exhaust pipe 3. Outlet 4. Sewage outlet

Drilling fluid with gas invades goes into the separator at the import tangentially and drops to a series baffles along the inner wall. After collision to increasing the contact area, It flows downward and become to a turbulent state which makes gas separate from mud and the free gas passes through the top of tank and discharged from the gas export. The length of gas export pipe can be determined at site and be induced to the safe place. The drilling fluid without gas will flow into the circular tank.

Oilfield Mud Gas Separator Using Site
