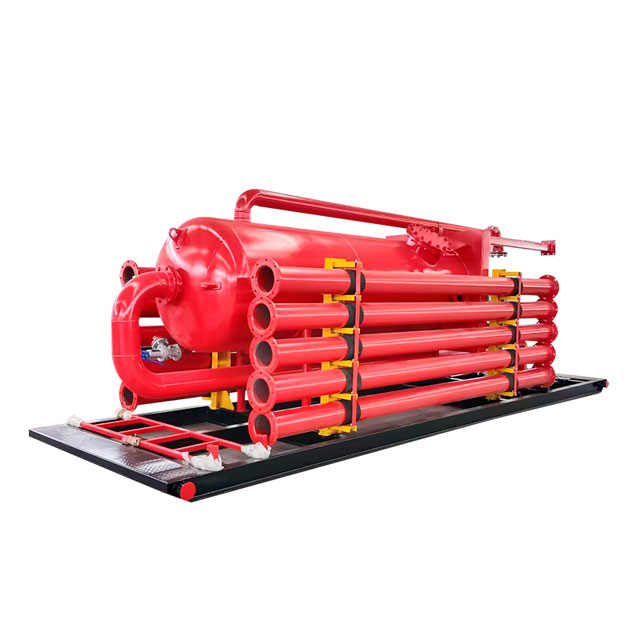

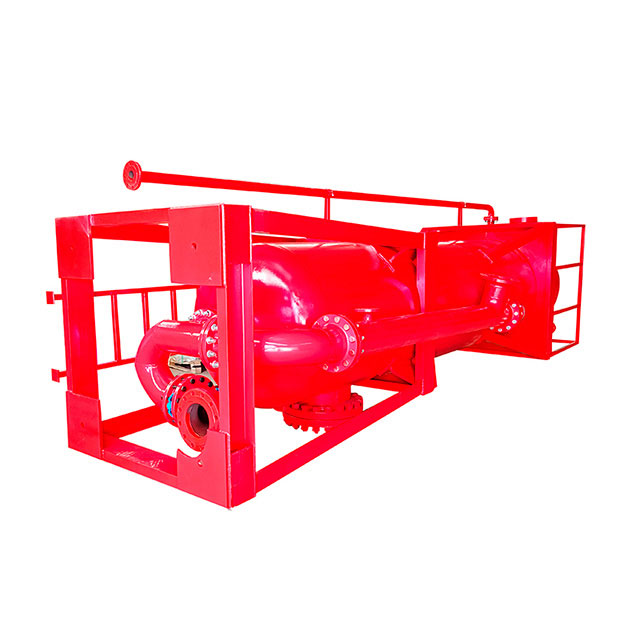

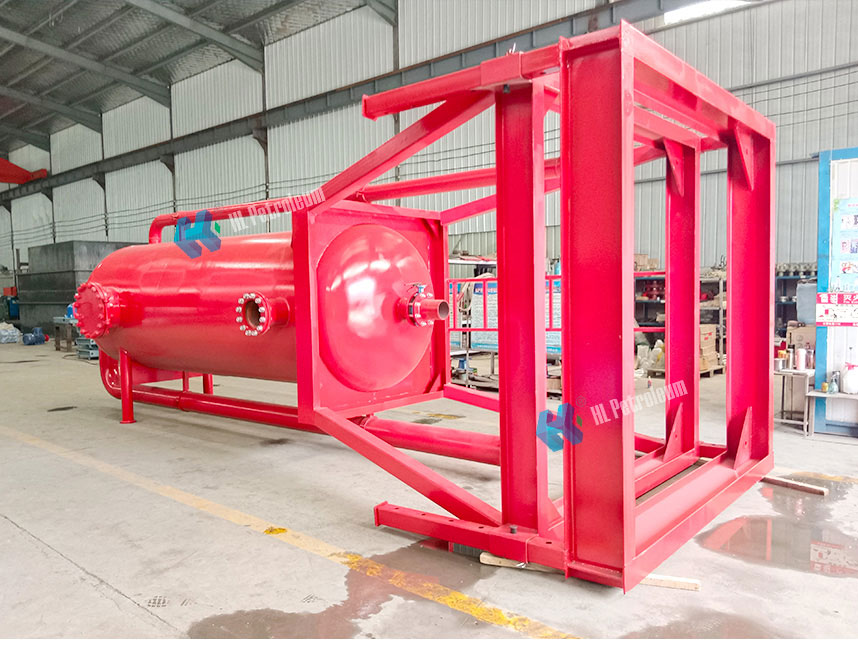

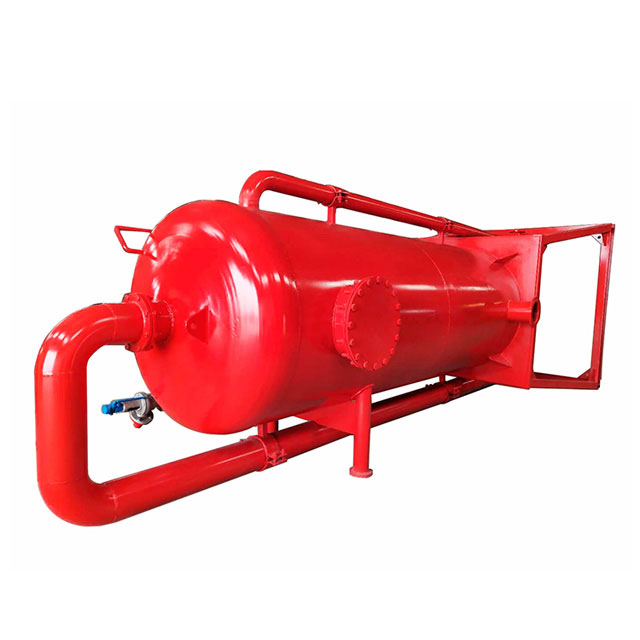

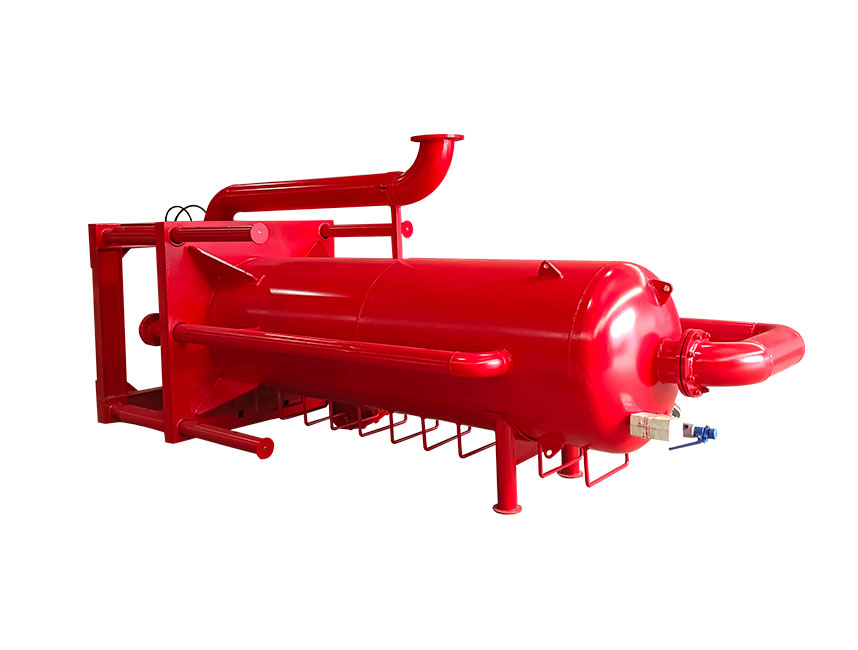

Mud Liquid-gas Separator
Product Overview:
1.Prevent blowout
2.Adjust the specific gravity of mud
3.Mechanical separation, zero energy consumption
4.Special material, resistant to H2S corrosion
Mud Liquid-gas Separator Details
HYQ series mud liquid-gas separator is a special equipment for the primary degassing of gas-invasion drilling fluid. It is mainly used to remove large air bubbles with a diameter of approximately ≥φ3mm in the gas-invasion drilling fluid. These large bubbles refer to most of the swelling gas in the drilling fluid that fills a certain section of the wellbore annulus. If not removed, it will easily cause a kick or even blow out the surface of the drill pad. HYQ series mud liquid gas separator is made of high-quality materials, which can effectively prevent the erosion of harmful gases and ensure the safe production of man and machine.
Mud Liquid-gas Separator Parameters
|
Model |
HYQ800 |
HYQ1000 |
HYQ1200 |
|
Dia. of main body |
800mm |
1000mm |
1200mm |
|
Displacing rate |
180-220m3/h |
200-280m3/h |
220-300 m3/h |
|
Inlet pipe |
5″/4″ |
5″ |
5″ |
|
Outlet pipe |
8″ |
8″ |
10″ |
|
Gas discharge pipe |
8″ |
8″ |
8″ |
|
Weight |
1900kg |
2300kg |
3200kg |
|
Dimension |
1900×1900×5700mm |
2000×2000×5920mm |
2100×2100×6700mm |
FAQ
Q1: How can I make order online?
A: Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order.
Q2: Do you have MOQ limit?
A: The MOQ is 1 set.
Q3: What's your warranties?
A: 1 year after delivery
Q4: Can I buy parts separately?
A: Yes, all of the separator spare parts can buy separately.
