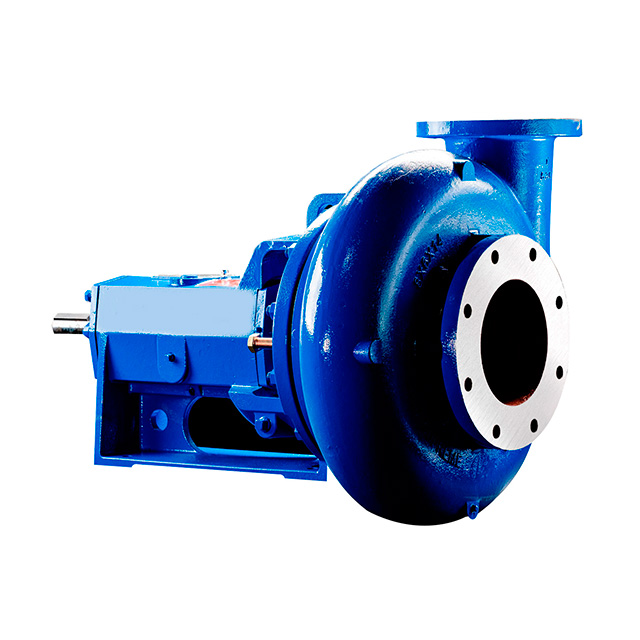

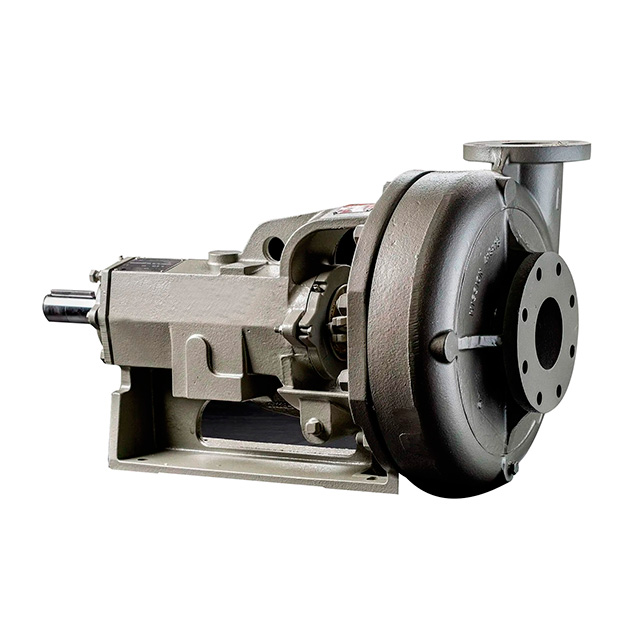

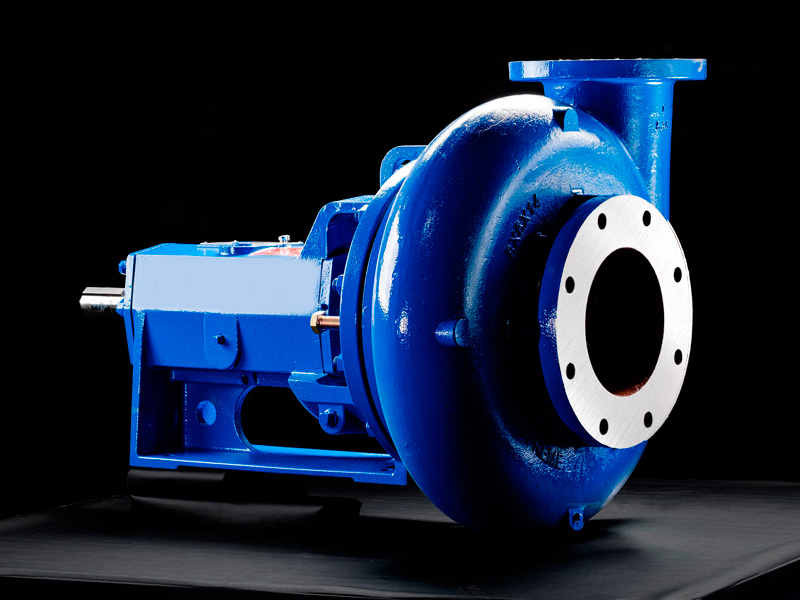

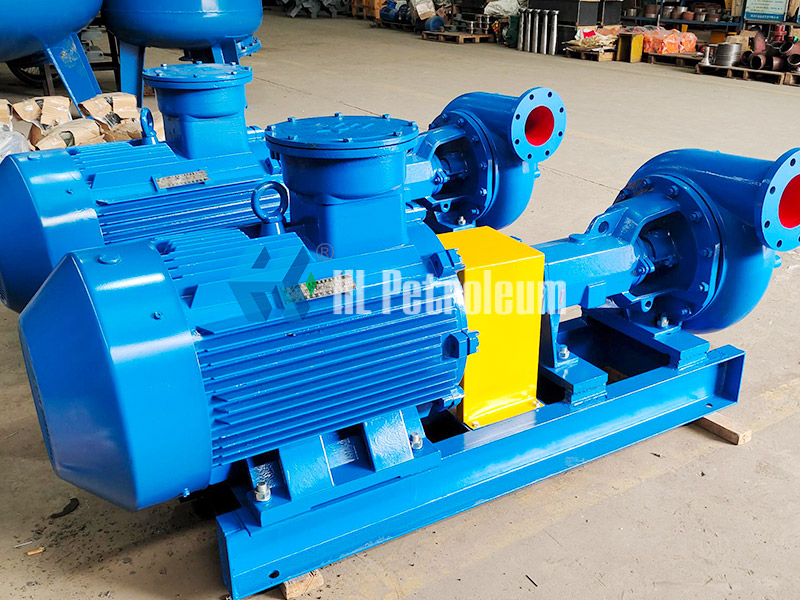

Mission Magnum Pump 8x6x14
Product Overview:
Model: 8x6x14
Flow: 270-320 m3/h
Head: 28-40 m
Impeller diameter: 9-14 inches
Recommended power: 55/75 kW
Material: Hard iron, cast iron, stainless steel
Mission Magnum Pump 8x6x14 Details
Mission Pump 8x6x14 Magnum horizontal sand pump with tungsten carbide coated mechanical seal and stainless steel sleeve for well maintenance.
Mission Pump Magnum models are proven reliable, heavy duty, low cost mud pumps. 3x2x13 to 8x6x14 pumps all feature the same power end to ensure production and reduce spare parts inventory requirements. Mission Magnum I is designed for the toughest jobs in drilling, production, well maintenance and industrial applications. Magnum I is more powerful, more durable and easier to maintain than any conventional pump currently in use.
Mission Pumps feature an open impeller design incorporating wide tip blades and a larger suction tangential circumference, enabling the pump to produce a smoother flow pattern when handling abrasive fluids.
Mission Magnum I Pump Applications:
Mission centrifugal pumps can be used as fracturing discharge pumps, fracturing suction pumps, oil drilling centrifugal pumps, electric centrifugal transfer pumps, transfer pumps, circulating mud pumps, centrifugal sludge pumps, drilling fluid centrifugal pumps, horizontal directional drilling pumps, filling pumps, feed pumps, etc.
Mission Magnum 8x6x14 Pump Technical Parameters
| Model |
Impeller diameter （inch） |
Speed
(r/min) |
Capacity
(m3/h) |
Head
(m) |
Efficiency
(%) |
NPSH
(m) |
Power
(kw) |
| 8x6x14 | 14 | 1450 | 260 | 28-33 | 65 | 4.5 | 75 |
| 13 | 1450 | 250 | 28-33 | 65 | 4.5 | 75 | |
| 12 1/2 | 1450 | 240 | 28-33 | 65 | 4.5 | 55 | |
| 12 | 1450 | 240 | 28-33 | 65 | 4.3 | 55 | |
| 11 | 1450 | 220 | 28-33 | 65 | 4.0 | 55 | |
| 12 | 1750 | 240 | 28-33 | 65 | 4.3 | 75 | |
| 11 | 1750 | 220 | 28-33 | 65 | 4.0 | 75 |
