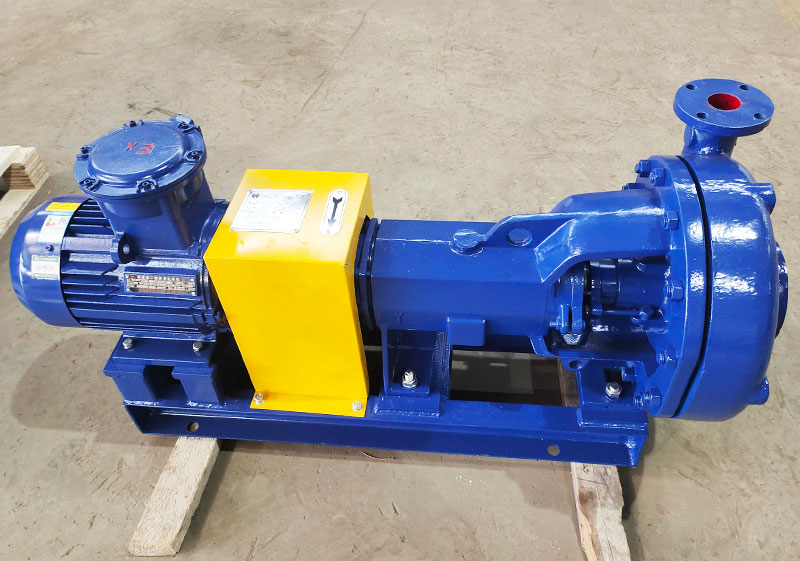

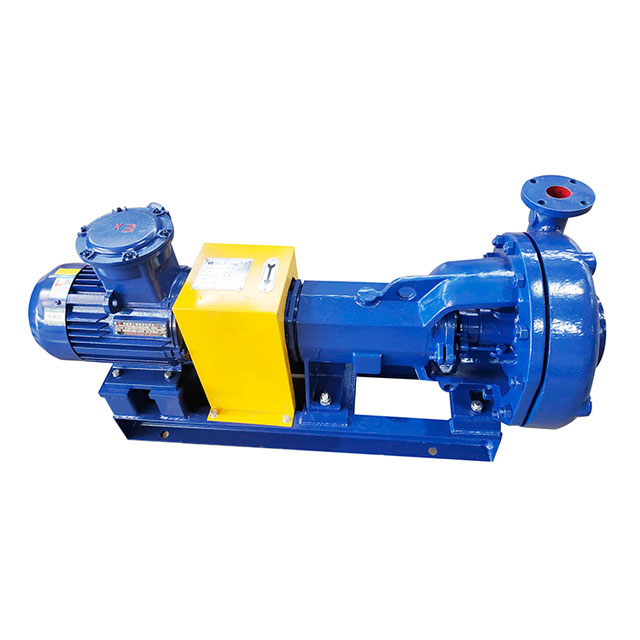

Mission Magnum Pump 3x2x13
Product Overview:
Size Designation: The "3x2x13" indicates the following dimensions:
3-inch suction inlet size.
2-inch discharge outlet size.
13-inch impeller diameter.
Mission Magnum Pump 3x2x13 Details
The Mission Magnum 3x2x13 is another type of centrifugal pump, commonly used in industries like oil and gas, mining, and other sectors that require heavy-duty pumping solutions. Here's a breakdown of its key features:
Specifications:
- Size Designation: The "3x2x13" indicates the following dimensions:
- 3-inch suction inlet size.
- 2-inch discharge outlet size.
- 13-inch impeller diameter.
Key Features:
1.Robust Construction: Like other Mission Magnum pumps, the 3x2x13 is designed to handle abrasive, corrosive, and heavy-duty applications. It's typically made from high-quality materials to withstand wear and tear.
2.Applications: This pump is ideal for pumping drilling mud, mining slurry, and other fluids that may contain solid particles. It's commonly used in well drilling, fracking, and similar operations.
3.High Performance: The pump is known for its ability to handle high volumes and high-pressure applications. It is designed for reliability in demanding environments.
4.Sealing Options: The pump can come with different sealing options like mechanical seals, lip seals, or packing, depending on the specific application.
3x2 Series Mission Sand Pump Technical Parameters
| Model |
Impeller diameter（inch） |
Capacity(m3/h) | Head(m) | Efficiency(%) | NPSH(m) | Power(kw) |
| 3x2 | 13 | 25 | 35 | 40 | 3 | 11 |
| 12 | 23 | 29 | 39 | 3 | 7.5 | |
| 11 | 20 | 23 | 39 | 3 | 5.5 |
Would you like more technical details, performance curves, or help with maintenance tips for this specific pump? You can contact us sales@hlsolidscontrol.com
