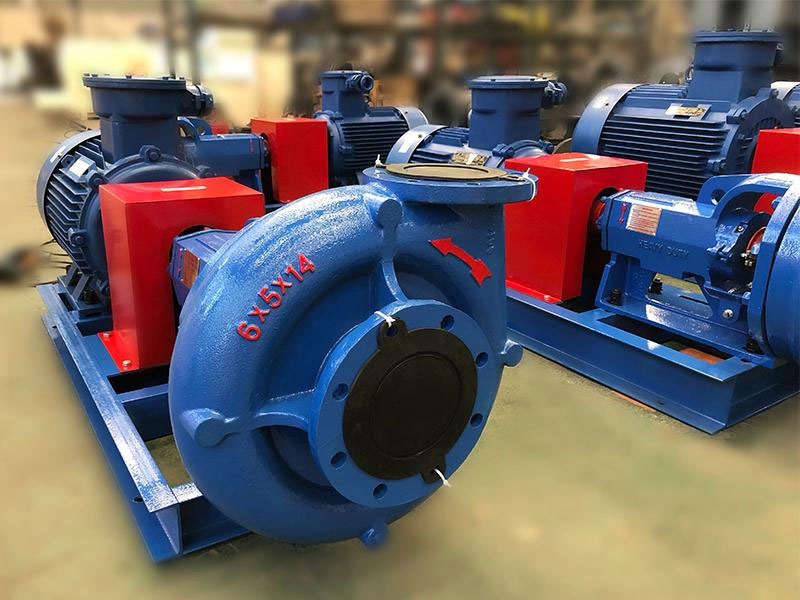

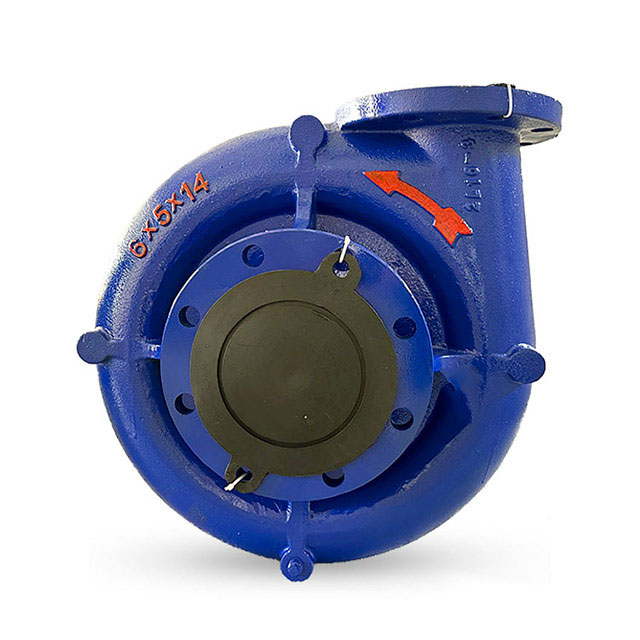

Mission Magnum Pump 6x5x14
Product Overview:
Model: 6x5x14
Flow: 160-200 m3/h
Head: 12-40 m
Recommended power: 9~55kW
Material: Hard iron, cast iron, stainless steel
Mission Magnum Pump 6x5x14 Details
Mission Magnum Pump 6x5x14 is one of the most popular oilfield centrifugal pump equipment.
Magnum Pump series we can provide models: 3x2x13, 4x3x13, 5x4x14, 6x5x11, 6x5x14, 8x6x11, 8x6x14.
Magnum Pump is a reliable high-power, low-cost mud pump. Special concentric casing, front wear plate and wide impeller design make the Magnum Pump centrifugal pump show the characteristics of wear resistance, long service life and low maintenance cost.
Mission Magnum Pump Features
1 Thick, sturdy concentric casing with replaceable casing gasket, which has a longer service life than ordinary volute design. The concentric design minimizes wear and tear, and the casing repair cost is lower than replacing the entire casing.
2. The casing gasket is recessed for protection.
3. Replaceable pump box cover with double sliding box bolts
4. Optional pump box suitable for single and double mechanical applications and can be configured for flushing lines.
5. Long life non-adjustable mechanical seal.
Technical parameters of Mission Magnum Pump 6x5x14
| Model |
Impeller diameter （inch） |
Capacity
(m3/h) |
Head
(m) |
Efficiency
(%) |
NPSH
(m) |
Power
(kw) |
| 6x5 | 14 | 200 | 40 | 62 | 3.2 | 55 |
| 13 | 180 | 34 | 60 | 3.0 | 45 | |
| 12 | 160 | 30 | 60 | 3.0 | 30 | |
| 11 | 200 | 21 | 62 | 2.5 | 30 | |
| 9 | 160 | 12 | 58 | 3.0 | 15 |
