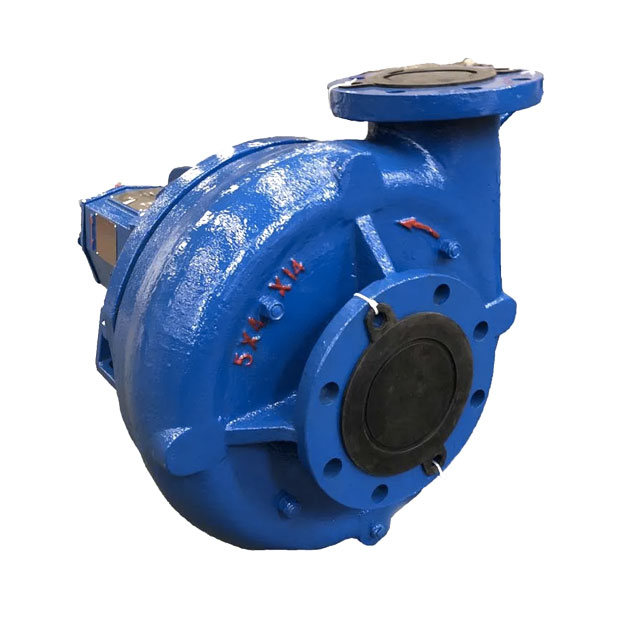

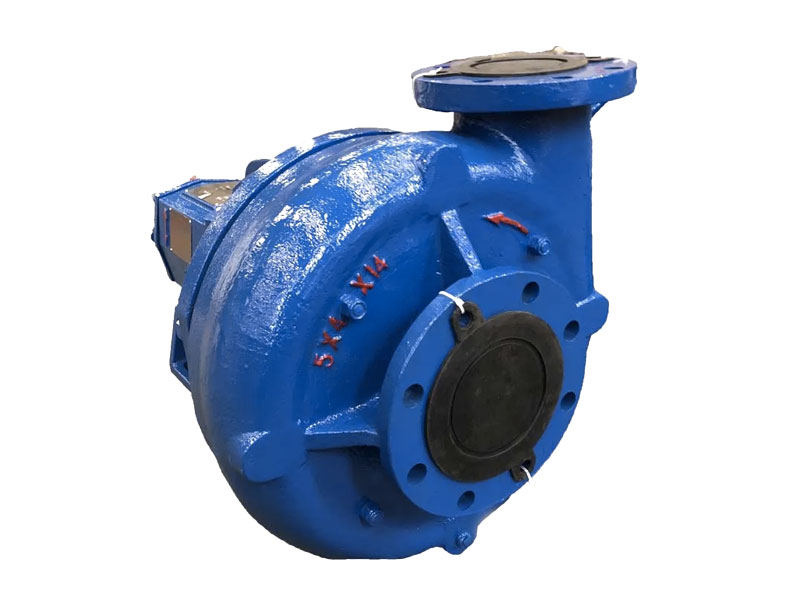

Mission magnum pump 5x4x14

Mission centrifugal pumps are mainly used to support the circulating solid control system of oilfield drilling rigs. Their function is to provide drilling fluid with a certain displacement and pressure to desanders, desilters, mixers, etc. to ensure that these equipment work efficiently. Mission magnum pump 5x4x14 sand pump is a high-power centrifugal pump that can handle heavy mud in oilfield applications.

Mission The models we can provide for the magnum series are: 3x2x13, 4x3x13, 5x4x14, 6x5x11, 6x5x14, 8x6x11, 8x6x14.

Among them, the 10×8×14 Misen pump is mainly suitable for drilling rigs above 3000m, and the drilling fluid viscosity and specific gravity are relatively large; the 8×6×14 Misen pump is mainly used for drilling rigs above 3000m; the 8×6×11 Misen pump is mainly used for drilling rigs below 3000m, and can also be used as a perfusion pump to supply slurry to the three-cylinder mud pump; the 6×5×11 and 5×4×14 Misen pumps are generally used for vehicle-mounted drilling rigs or small drilling rigs; the 4×3×13 Misen pump is matched with a metering tank, usually called a metering pump or a supply pump; the 3×2×13 Misen pump is generally used as a clean water pump.

Mission magnum pump Features

1. Replaceable sleeves prevent shaft wear.

2. Single row roller bearings extend bearing life

3. Bearing oil lubrication available upon request, recommended for pump speeds over 2400RPM.

4. Duplex angular contact bearings eliminate shaft end play and extend bearing and seal life

5. Labyrinth seals provide maximum bearing protection and are standard. Lip seals are recommended for oil lubricated pumps.

6. Optional flanged bearing housing for hydraulic drives.

Technical parameters of Mission sand pump 5x4x14
