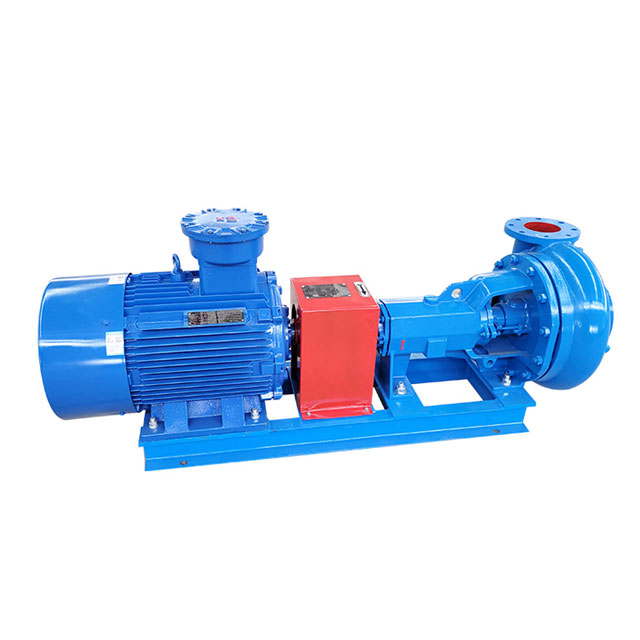

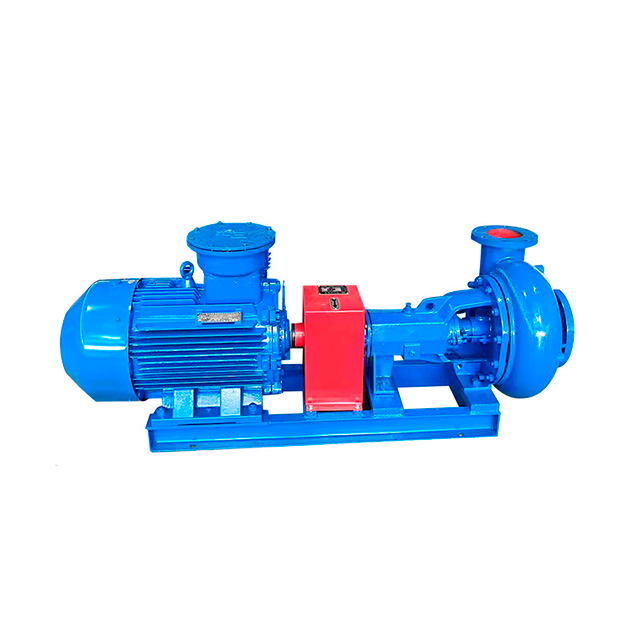

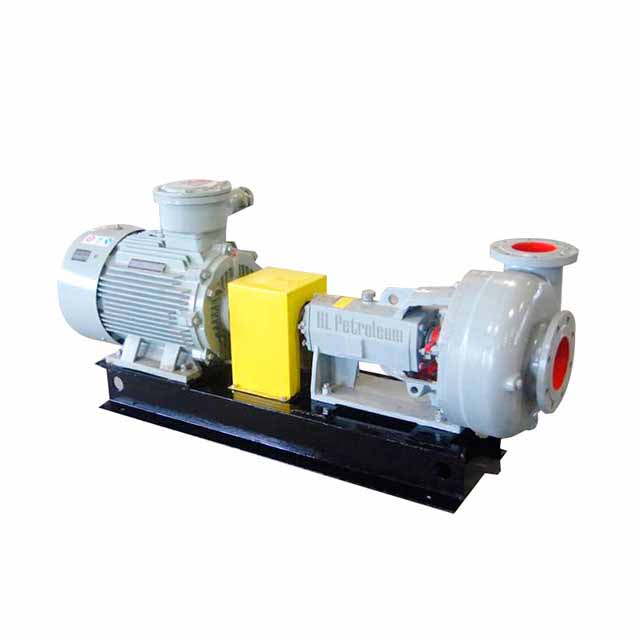

Centrifugal Mud Pump

The pump body of the centrifugal mud pump is strong and durable, so the service life is relatively long. Due to its special strength, the wall thickness of the pump body is thicker than that of ordinary pumps. The pump is of centrifugal design with the same axial clearance between the impeller and pump body. This design allows the pump to pump a streamlined flow of liquid, even in shut-off conditions. The pump body is designed as an annular flow channel, which helps to eliminate eddy current and cavitation, and also reduces the radial load of the bearing. Due to the reasonable design of the inlet pipe diameter of the pump, it requires a lower suction pressure. In order to prevent the liquid from flowing out of the impeller, the sealing part of the pump body adopts a groove structure.

Centrifugal Mud Pump Parameters

Model	Capacity (m3/h)	Head (m)	Efficiency (%)	NPSH (m)	Power (kW)
					Shaft power	Motor power
SB8×6-14	320	40	65	4.0	53.63	75
SB8×6-13	290	33	64	4.5	40.7	55
SB8×6-12	270	28	64	4.5	32	45
SB8×6-14I	200	40	62	3.2	35.1	55
SB8×6-13I	180	34	60	3.0	27.8	45
SB8×6-12I	160	30	60	3.0	22	30
SB6×5-14	200	40	62	3.2	35.1	55
SB6×5-13	180	34	60	3.0	27.8	45
SB6×5-12	160	30	60	3.0	22	37
SB6×5-11	200	21	62	2.5	18.5	30
SB6×5-9	160	12	58	3.0	9.02	15
SB5×4-14	120	45	56	4.6	23.3	37
SB5×4-13	90	40	56	4.5	17.5	30
SB5×4-12	90	30	56	4.5	13.1	22
SB5×4-11	90	24	56	4.5	10.5	18.5
SB5×4-10	85	20	56	4.2	8.4	15
SB5×4-9	80	19.5	54	4.5	7.9	15
SB4×3-13	50	40	48	4.5	11.3	18.5
SB4×3-12	45	30	47	4	7.8	15
SB4×3-11	45	24	46	4	6.4	11
SB3×2-13	25	35	40	3	5.9	11
SB3×2-12	23	29	39	3	5.1	7.5
SB3×2-11	20	23	39	3	3.2	5.5

Xi'an HL is your reliable source for a comprehensive range of centrifugal mud pumps and accompanying spare parts. Our commitment extends beyond standard offerings, as we proudly offer customizable solutions to meet your specific requirements. Whether you're seeking top-quality mud pumps, replacement parts, or tailored configurations, Xi'an HL is dedicated to delivering excellence that aligns with your individual needs.
