Composite Mats

< >

Product Overview:

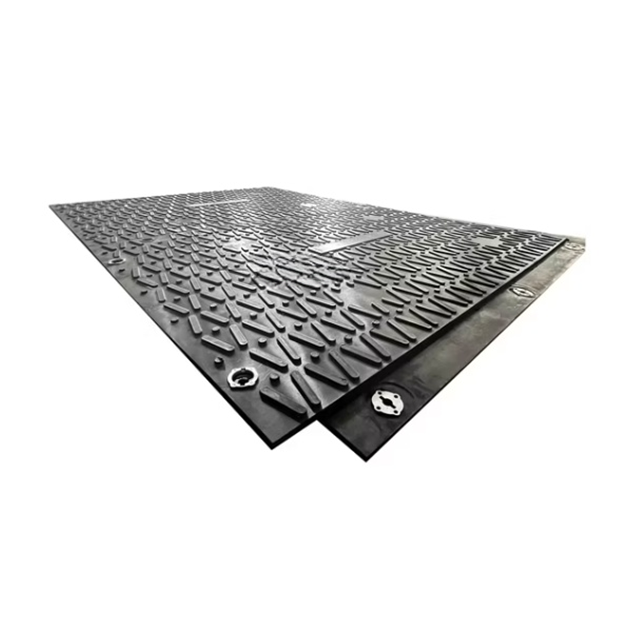

This type of plastic rig mats is made of high-strength composite polyethylene material through hot processing, also known as Composite Mats. It has a hollow structure and uses heavy flanges and interlocking pins to achieve fast and safe connection between mats. Based on so many advantages, the mat is widely used in oil fields, engineering construction, emergency rescue and other fields.

Booking Online

sales@hlsolidscontrol.com

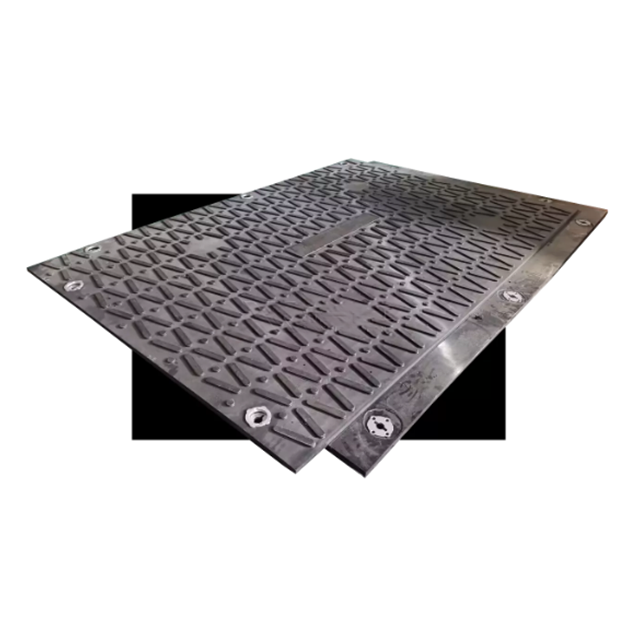

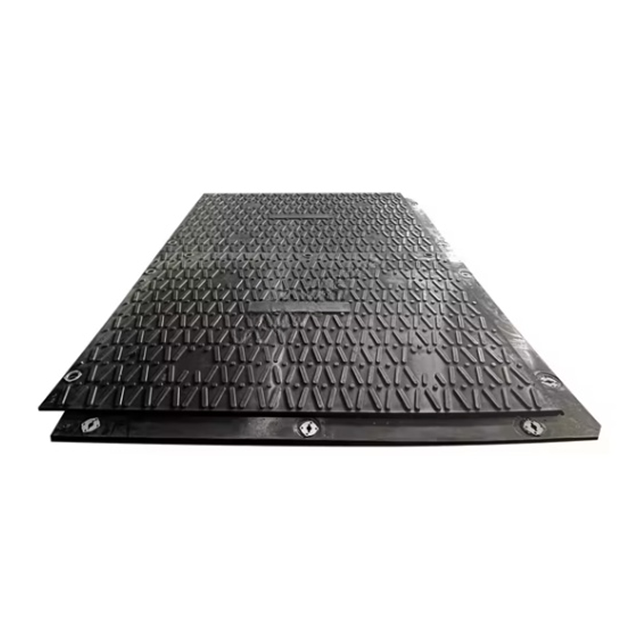

Composite Mats Details

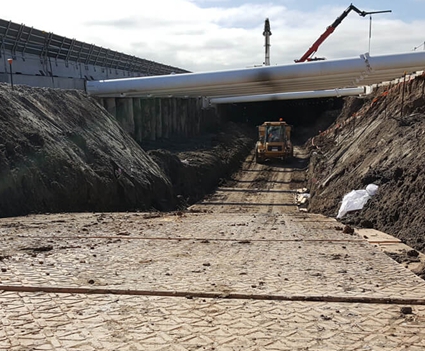

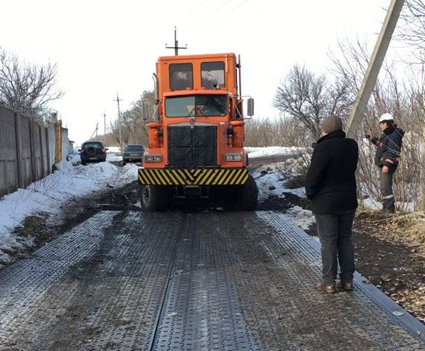

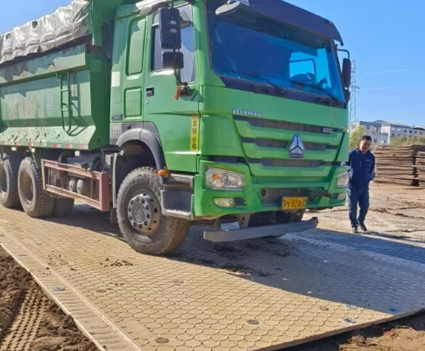

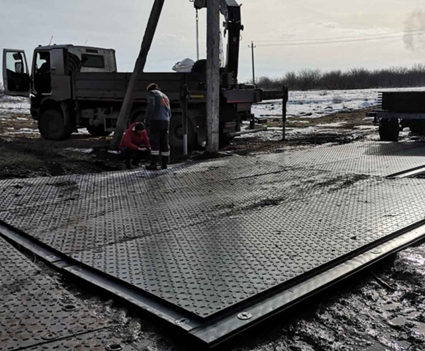

This type of plastic rig mats is made of high-strength composite polyethylene material through hot processing, also known as Composite Rig Mats. It is suitable for temporary road construction on soft surfaces and foundation construction on construction sites, with the advantages of light weight, anti-slip and wear resistance, high load-bearing and pressure resistance, corrosion resistance and aging resistance, long service life, and easy disassembly and assembly, which can still maintain stable performance in extremely cold and hot weather. In addition, it has obvious advantages in special landforms such as swamps.

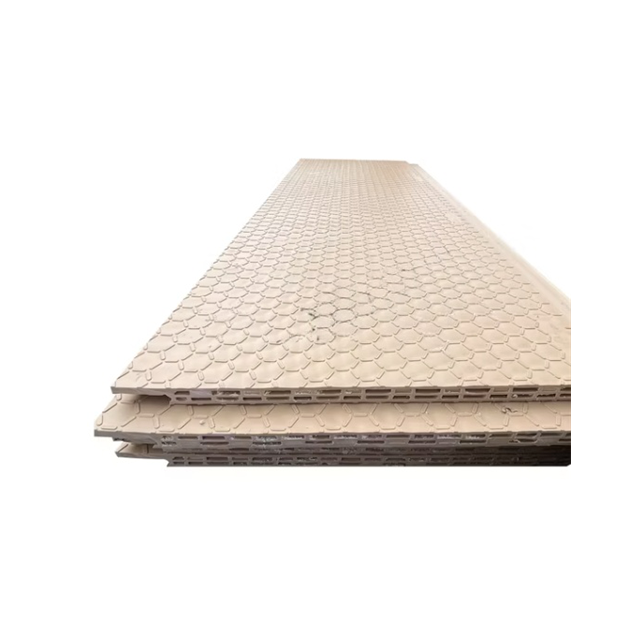

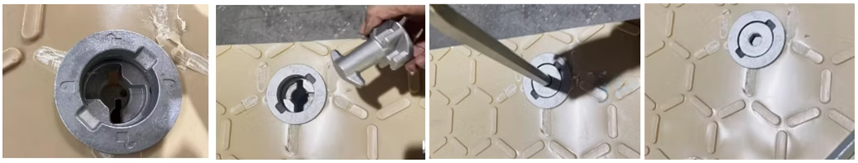

The mat has a hollow structure and uses heavy flanges and interlocking pins to achieve fast and safe connection between mats. Based on so many advantages, the mat is widely used in oil fields, engineering construction, emergency rescue and other fields.

Specification

Model	Length	Width	Thickness (including pattern)	Weight	Load Capacity	Qty in Container
HXA-01	19'/5800mm	7.2'/2180mm	3.5''/88mm	590kgs/1300lbs	120tons	42pcs in 40ft 21pcs in 20ft
HXA-02	14'/4270mm	7.0'/2134mm	3.5''/88mm	435kgs/960lbs	120tons	42pcs in 40ft 21pcs in 20ft
HXA-03	19'/5800mm	7.2'/2180mm	4.0''/100mm	672kgs/1480lbs	140tons	38pcs in 40ft 19pcs in 20ft
HXA-04	14'/4270mm	7.2'/2134mm	4.0''/100mm	488kgs/1075lbs	140tons	38pcs in 40ft 19pcs in 20ft

More details about the plastic rig mats

Product	Composite plastic mats
Material	High-Density Polyethylene (HDPE) with special impact modifiers that incorporate UV resistance and anti-static properties
Product Edging	Straight
Dimension	Refer to specification sheet
Weight	Refer to specification sheet
Packaging	Shrink Wrapped on Pallets
Non Absorbent	Yes
Special Adhesives	No
Interlock Loss	0.00 feet
Interlocking Connections	No
Made In	P.R.C
Surface Finish	Textured Tread
Surface Design	Solid color,Black or Tan/Beige
Installation Method	Dry lay
UV Treated	Yes
Reversible	No
Border Strips Included	No
Manufacturer Warranty	1 Year Limited
