Oil Drilling Rig Mat
Product Overview:
Oil drilling rig mat , also known as rig pad, is often used in oil field drilling. It can also be used as a temporary road mat during field operations. Model HGM rig mat.
High strength
Strong carrying capacity
No cracking, no fear of water, no deformation, corrosion resistance
Oil Drilling Rig Mat Details
HGM series oil drilling mat is a new rig mat developed by HL Solid Control according to the needs of the well site. The rig mat replaces the traditional concrete foundation, which greatly reduces the drilling cost and improves the economy. Benefit, not only saves land, but also improves on-site management level.
Rig Mat Parameters
|
Model |
Length（mm） |
Width（mm） |
Height（mm） |
|
HGM204 |
2000 |
2000 |
200 |
|
HGM205 |
2500 |
2000 |
200 |
|
HGM203 |
3000 |
1000 |
200 |
|
HGM206 |
3000 |
2000 |
200 |
|
HGM209 |
3000 |
3000 |
200 |
|
HGM208 |
4000 |
2000 |
200 |
|
HGM210 |
4000 |
2500 |
200 |
|
HGM212 |
4000 |
3000 |
200 |
|
HGM216 |
4000 |
4000 |
200 |
|
HGM210 |
5000 |
2000 |
200 |
|
HGM215 |
5000 |
3000 |
200 |
Rig Mat Processing Material Display
Oilfield Rig Mats Usage
Oil drilling rig mat is suitable for ZJ20, ZJ30, ZJ40, ZJ50, ZJ70 and other types of drilling rigs in the plains, plateaus, deserts, hills, beaches, swamps and other areas where the drilling depth is 1000-7000m.
Oilfield Rig Mats Features
The oil drilling rig mat has high strength, strong carrying capacity, good interchangeability, convenient transportation, low cost, convenient and quick installation, strong shock absorption, no dry cracking, no fear of water, corrosion resistance, no deformation, long service life, easy recovery and storage, etc. advantage.

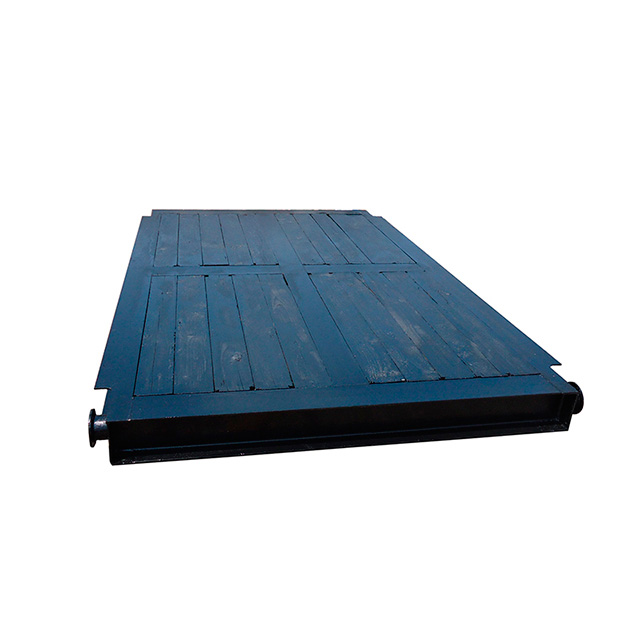

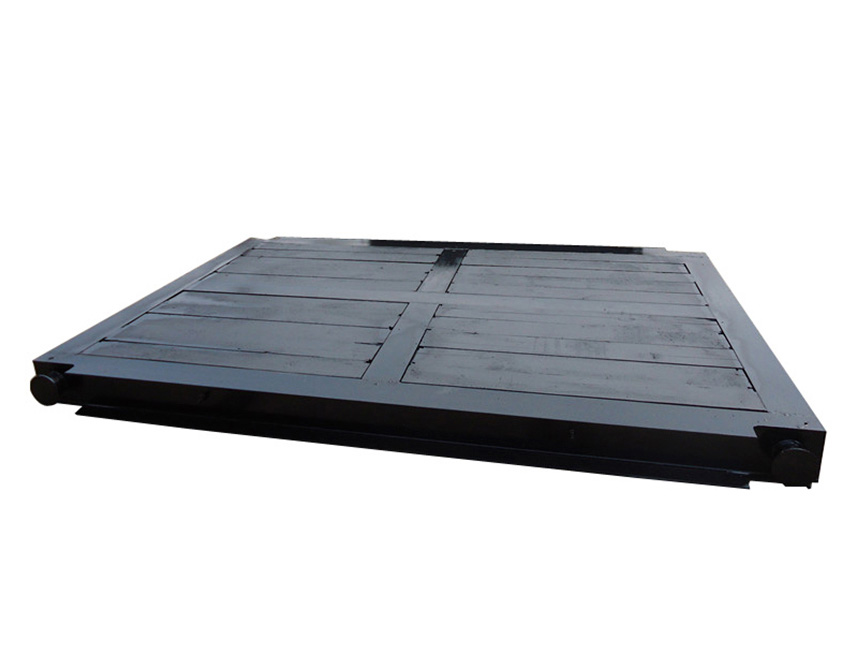

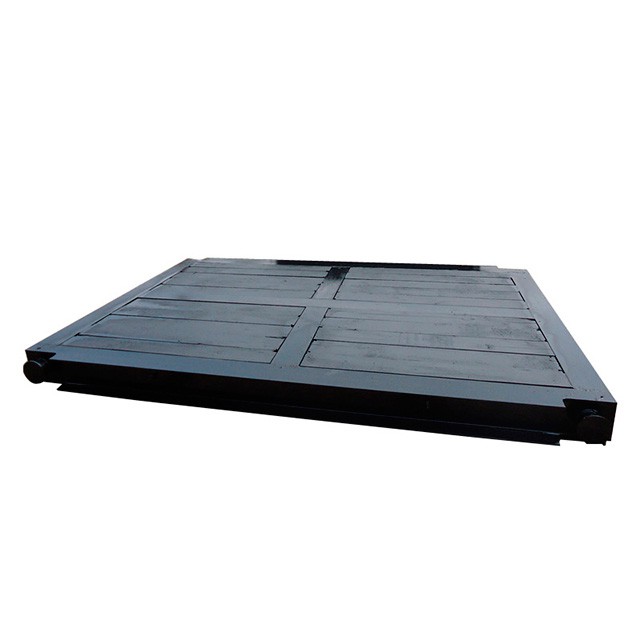

Rig Mats Pictures

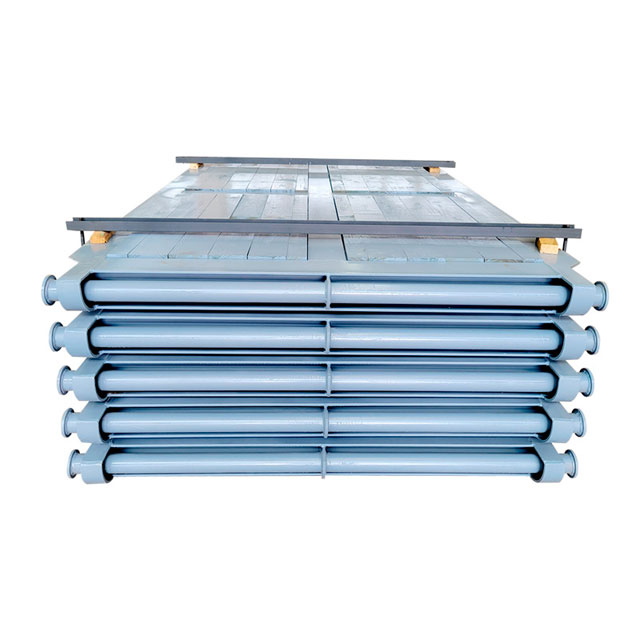

Rig Mat Delivery
