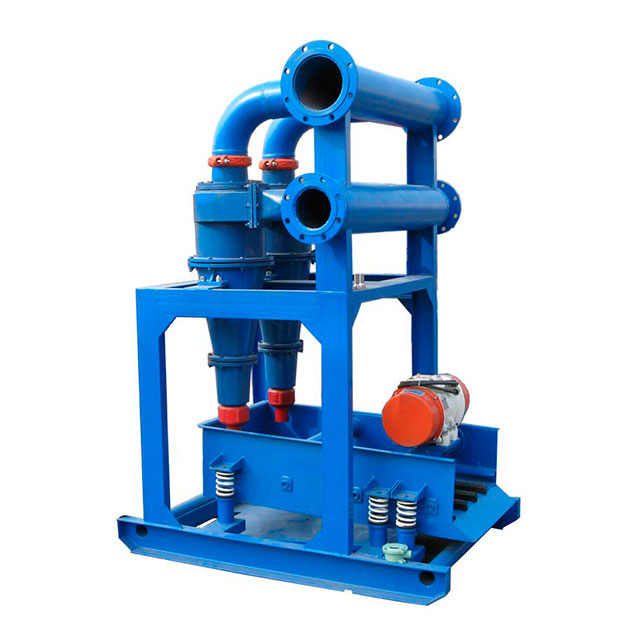

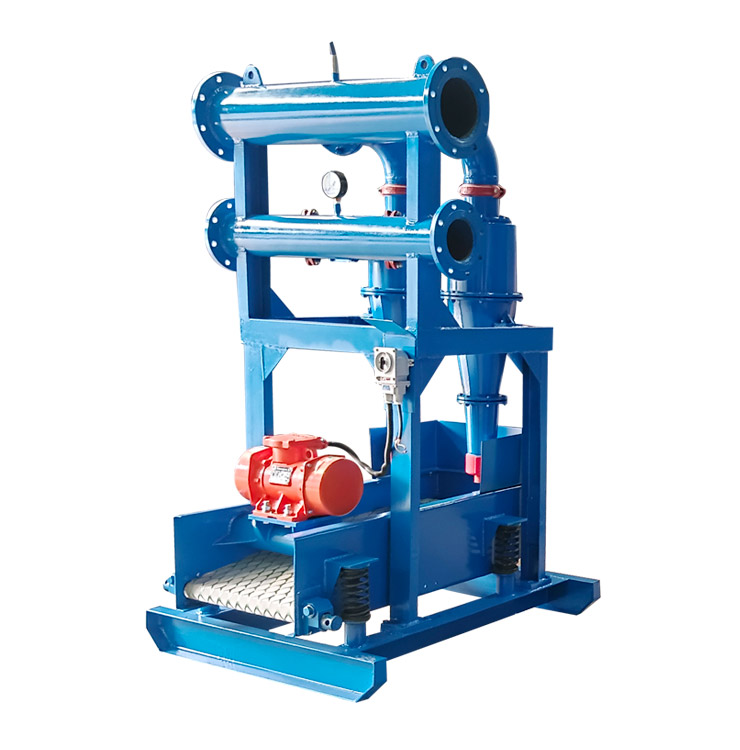

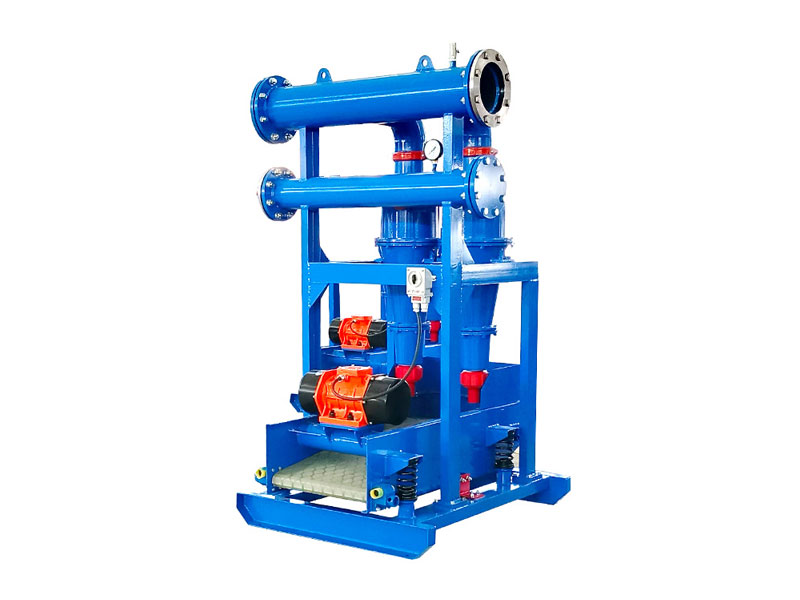

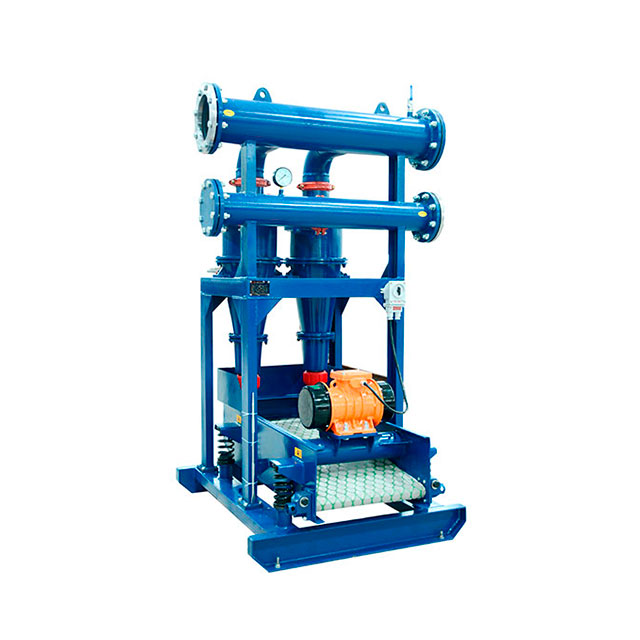

Desander
Product Overview:
Drilling mud desander is a secondary solids control system for processing drilling fluid. According to the diameter of the cyclone, it is divided into cyclone desander and cyclone desilter. Generally, cyclones above 8" are called desanders, and 8", 10", 12" cyclones are...
Desander Details
Desander is a secondary solids control system for processing drilling fluid. According to the diameter of the cyclone, it is divided into cyclone desander and cyclone desilter. Generally, cyclones above 8" are called desanders, and 8", 10", 12" cyclones are commonly used, which are mainly used to separate solid particles with a particle size of 47-76μm in the drilling fluid. According to the size of the processing capacity required by the customer, select several groups of cyclones to combine to form a desander.>>Send an Enquiry sales@hlsolidscontrol.com<<
Desander Parameters
|
Model |
HCS250S |
HCS200×2S |
HCS250×2S |
HCS300×2S |
|
Capacity |
50 m3/h |
100 m3/h |
200 m3/h |
240 m3/h |
|
Cyclone Diameter |
250mm(10”) |
200mm(8”) |
250mm(10”) |
300mm(12”) |
|
Cyclone Quantity |
1 |
2 |
2 |
2 |
|
Separation Particle Size |
44～74μm |
44～74μm |
44～74μm |
44～74μm |
|
Motor Power |
0.5 KW |
0.5 KW |
0.5 KW |
0.75 KW |
|
Applicable Field |
Wells less than 100 meters |
Horizontal Directional Drilling |
4000m oil drilling |
Oil drilling above 5000 meters |
|
Supporting Sand Pump |
SB4×3-15KW |
SB5×4-22KW |
SB8×6-55KW |
SB8×6-75KW |
|
Weight |
550KG |
750KG |
800KG |
1100KG |
|
Dimension: L×W×H |
1500×800×1800 mm |
1500×1200×1800 mm |
1500×1300×1800 mm |
1500×1500×1800 mm |
>>Send an Enquiry sales@hlsolidscontrol.com<<
Oil Mud Desander Application
Desander is mainly suitable for the treatment and control of water quality of raw water and supplemental water, such as: oil field drilling, trenchless horizontal directional crossing, mud purification cyclonic separation of coalbed methane drilling, sand removal from river water and well water, coal washing water, industrial mineral processing, solid-liquid Separation, degassing of liquids and separation of non-mutual liquids, etc.
