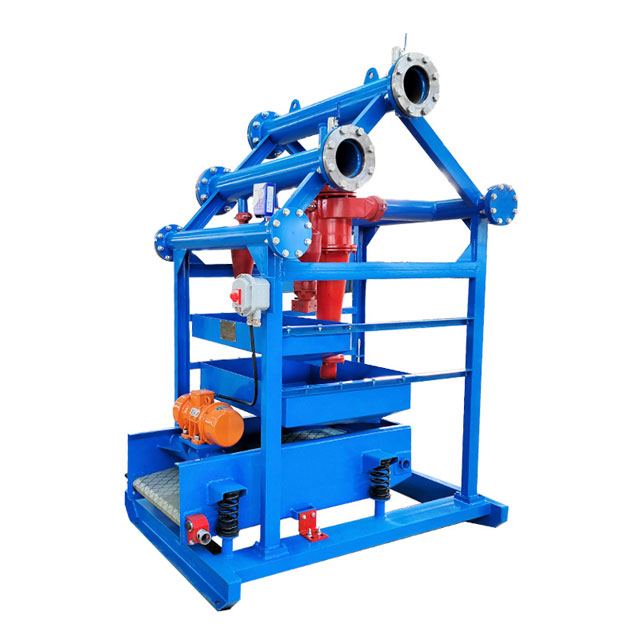

Mud Cleaner

< >

Product Overview:

1.Match HL technology advanced drilling fluid shaker.
2.Desanding and desilting cyclones are made of 100% polyurethane.
3.Compact structure, saving space.
4.Vibration motor: Italian Oli, IEC EX and ATEX explosion-proof standards are available.
5.Wedge block design is convenient for screen replacement.
6.The screen box angle can be adjusted mechanically during work, with reliable performance.
7.The number of customized cyclones is available

Booking Online

sales@hlsolidscontrol.com

Mud Cleaner Details

The mud cleaner is the desander and desilter integrated machine.The mud cleaner is the second and third stage solids control equipment for drilling mud. The mud cleaner is a three-in-one de-sanding cyclone, a desilting cyclone and an underflow shale shaker. The Mud cleaners have a compact structure, a small footprint, and powerful functions. It is an ideal choice for high-efficiency cleaner equipment for secondary and tertiary solid phase control of drilling mud.

The Mud cleaner produced by Xi'an HL Petroleum Equipment Co., Ltd. matches the shale shaker with HL advanced technology. The damping spring of the mud cleaner uses metal rubber composite materials. The number of customized cyclones for drilling fluid mud cleaners is available, reliable performance and practical long life.

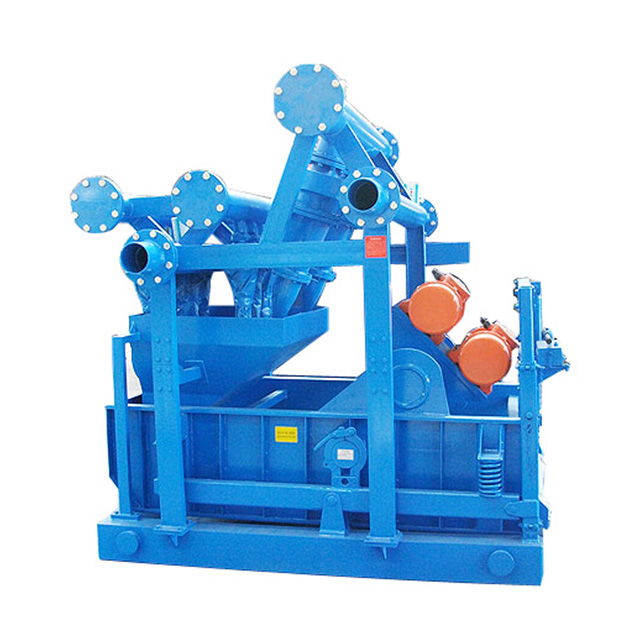

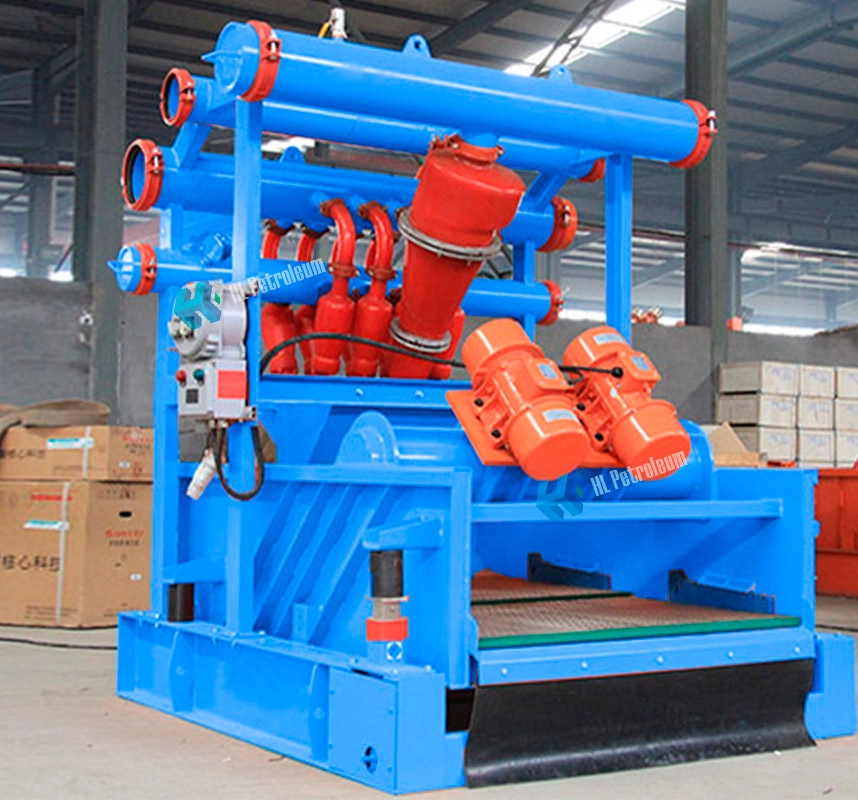

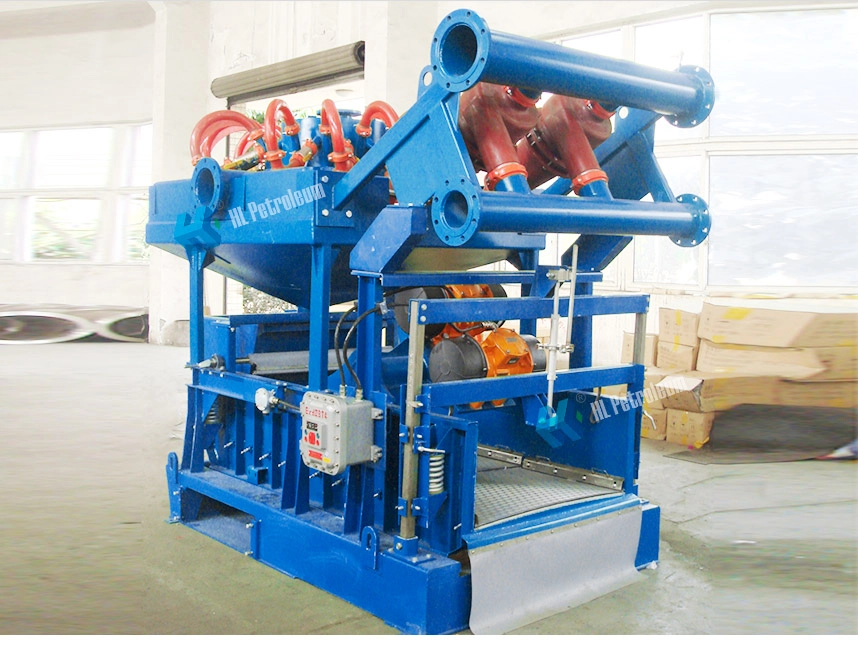

Mud cleaners

Mud cleaner Parameters

Model	HQJ250-100×6	HQJ300-100×8	HQJ250×2-100×12	HQJ300×2-100×16	HQJ250×3-100×20
Processing capacity	80 m3/h	100 m3/h	160 m3/h	200 m3/h	240 m3/h
Motor power	2×1.3 KW	2×1.3 KW	2×1.5 KW	2×2.2 KW	2×2.5 KW
Shale shaker amplitude	≥5 mm	≥5 mm	≥5 mm	≥5 mm	≥5 mm
Shale shaker screen	2×1050×700 mm Crochet screen	2×1050×700 mm Crochet screen	3×1050×700 mm Crochet screen	4×1165×585 mm Frame screen	5×1165×585mm Frame screen
Desander cyclone diameter	250mm(10”)	300mm(12”)	250mm(10”)	300mm(12”)	250mm(10”)
Desander cyclone quantity	1	1	2	2	3
Desander separation scale	40～100μm	50～150μm	40～100μm	50～150μm	40～100μm
Desilter cyclone diameter	100mm(4”)	100mm(4”)	100mm(4”)	100mm(4”)	100mm(4”)
Desilter cyclone quantity	6	8	12	16	20
Desilter separation scale	20～40μm	20～40μm	20～40μm	20～40μm	20～40μm
Matched sand pump	SB4×3-15KW	SB5×4-22KW	SB6×5-37KW	SB8×6-55KW	SB8×6-75KW
Weight	1800KG	2000KG	2800KG	3100KG	3500KG
Dimensions	2565×1920×2670 mm	2565×1920×2670 mm	2865×1920×2670 mm	3065×1920×2700 mm	3365×1920×2700 mm

Mud cleaner Model explanation

Mud cleaners Model explanation

For Example: HQJ/ 250×2－100×12 means that the cleaner is made up of two desanding cyclones whose nominal diameter is 250mm and twelve desilting cyclones whose nominal diameter is 100mm.

Mud Cleaner Shaker Features

• Match HL technology advanced drilling fluid shaker
• Desanding and desilting cyclones are made of 100% polyurethane
• Compact structure, saving space
• Vibration motor: Italian Oli, IEC EX and ATEX explosion-proof standards are available
• Wedge block design is convenient for screen replacement
• The screen box angle can be adjusted mechanically during work, with reliable performance
• The number of customized cyclones is available

Outline dimensional drawing
