Drilling Fluid Desander

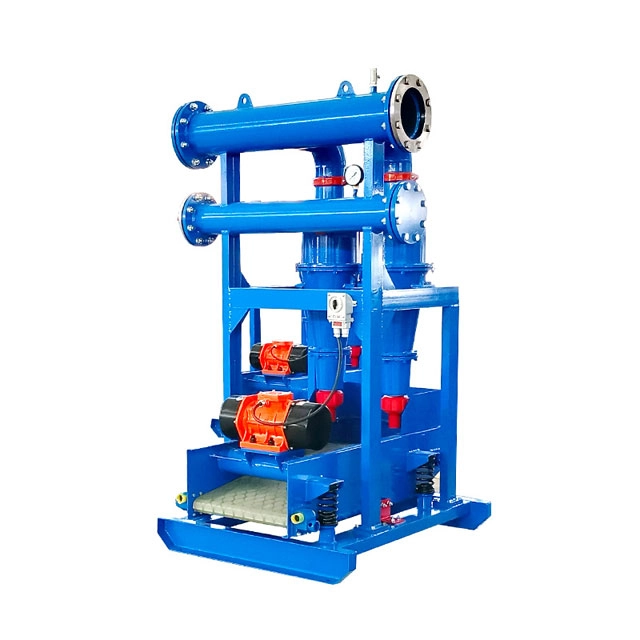

Drilling fluid desander, also known as hydrocyclone desander, is a secondary Solid-liquid Separation device in the drilling fluid solids control system, used to stabilize and regulate the drilling mud returned from the wellhead. The HCS series mud desanders produced by HL Petroleum are used in various drilling projects, mainly oil and gas field drilling, geothermal drilling, trenchless projects. The commonly used desander cyclone is 8'', 10'' and 12'' in size, to separate solid particles with a size of 44~74 microns in the drilling fluid. According to different user needs, we can produce desanders with or without underflow screens. >>Send an Enquiry sales@hlsolidscontrol.com<<

Technical Parameters Drilling Fluid Desander >>Send an Enquiry sales@hlsolidscontrol.com<<

Model	HCS250S	HCS200x2S	HCS250x2S	HCS300x2S
Processing capacity	50 m3/h	100 m3/h	200 m3/h	240 m3/h
Cyclone diameter	250mm(10")	200mm(8")	250mm(10")	300mm(12")
Cyclone quantity	1	2	2	2
Separation scale	20～40μm	20～40μm	20～40μm	20～40μm
Motor power	0.5 KW	0.5 KW	0.5 KW	0.75 KW
Application	Wells less than 100 meters	Horizontal directional drilling	4000m oil drilling	Oil drilling over 5000 meters
Matched sand pump	SB4x3-15KW	SB5x4-22KW	SB8x6-55KW	SB8x6-75KW
Weight	550KG	750KG	800KG	1100KG
Dimensions	1500x800x1800 mm	1500x1200x1800 mm	1500x1300x1800 mm	1500x1500x1800 mm

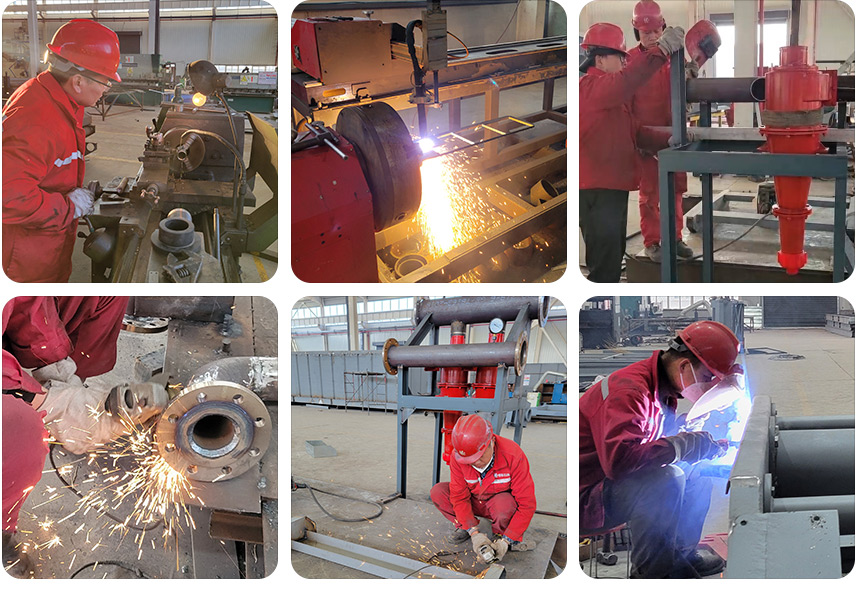

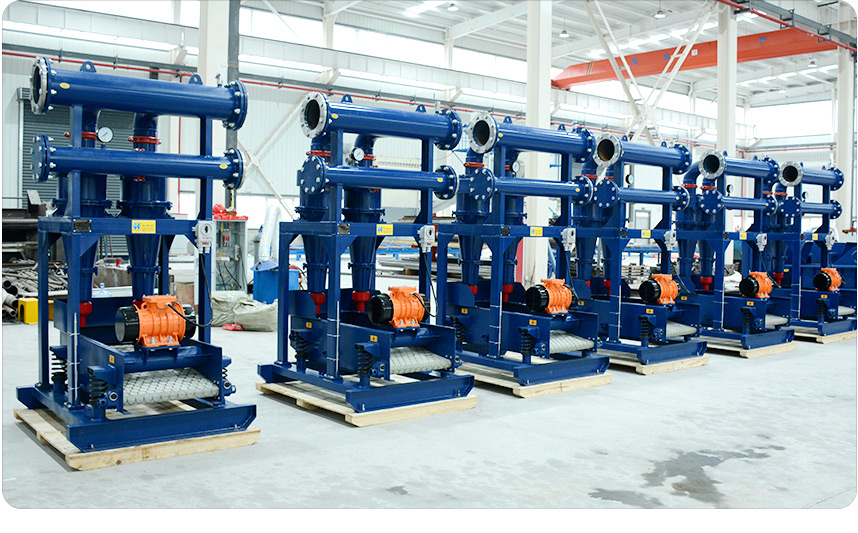

Processing Pictures
