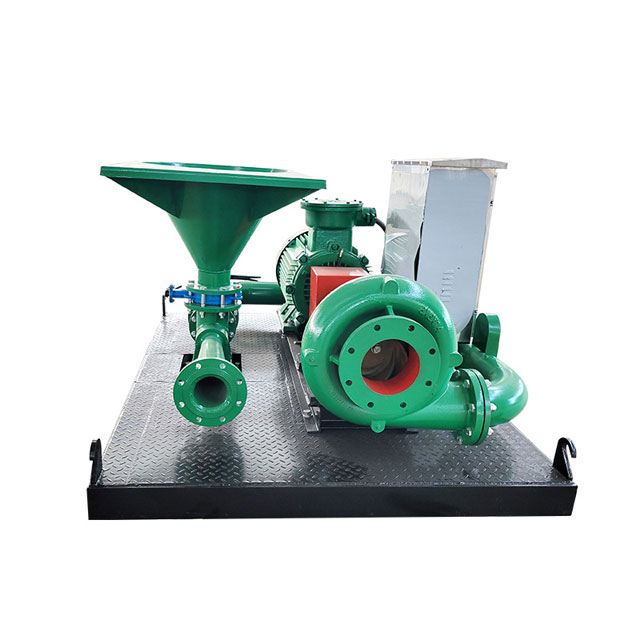

Drilling Fluid Mixer
Product Overview:
The drilling fluid mixer is a special oilfield equipment mainly for mixing and weighting the drilling fluid. It can change the density, viscosity, water loss, etc. of the drilling fluid, and the combined use of the shear pump has a more outstanding effect.
1. Single jet mixer or double jet mixer can be selected according to customer needs.
2. The injection hopper and centrifugal mud pump can be combined or installed separately.
3. Use jet mud mixer to fully circulate and mix the mud in the tank.
Drilling Fluid Mixer Details

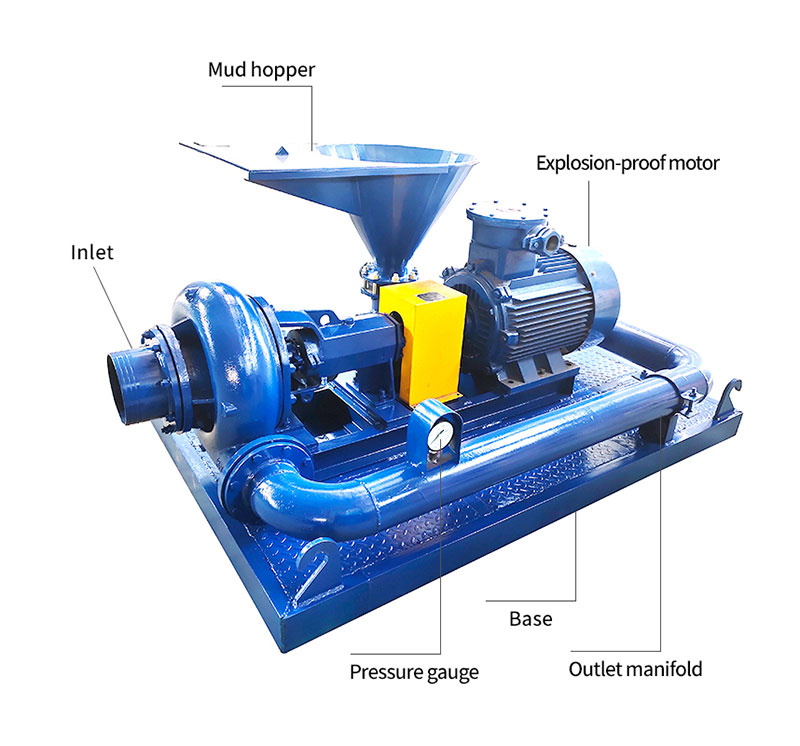

The drilling fluid mixer is a supporting equipment for the drilling rig solids control system and the trenchless mud system. It can meet the weighting and preparation of the drilling rig solids control system from 1000 meters to 9000 meters. The mixer is composed of a centrifugal mud pump and jet mixing. The mixing hopper is connected with the manifold and valve and installed on the skid-mounted base. Single jet mixing device or double jet mixing device can be selected according to customer needs.
Drilling fluid mixer parameters
|
Model |
HHQ150-50 |
HHQ150-40 |
HHQ150-30 |
HHQ100-25 |
|
Matching pump |
SB6×8(55/75kW) |
SB5×6(45kW) |
SB5×6(37kW) |
SB3×4(15kW) |
|
Capacity |
240m3/h (1056GPM) |
180m3/h (792GPM) |
120m3/h (528GPM) |
60m3/h (264GPM) |
|
Pressure |
0.25~0.40MPa |
0.25~0.40MPa |
0.25~0.40MPa |
0.25~0.40MPa |
|
Inlet dia. |
150mm(6") |
150mm(6") |
150mm(6") |
150mm(4") |
|
Nozzle caliber |
50mm |
40mm |
30mm |
25mm |
|
Burden speed |
≤100kg/min |
≤80kg/min |
≤60kg/min |
≤40kg/min |
|
Density |
≤2.8g/cm3 |
≤2.4g/cm3 |
≤2.0g/cm3 |
≤1.5g/cm3 |
|
Viscosity |
≤120s |
≤120s |
≤80s |
≤60s |
|
Dim.(mm) |
2200*1700*1200 |
2200*1700*1200 |
2000*1650*1100 |
1800*1600*1000 |
|
Weight(kg) |
1680/1590 |
1400/1380 |
1280/1200 |
1100/1080 |
Mud mixer features
1). Automatic and efficient ingredients,
2). Save labor costs and mobile operations,
3). Flexible operation, strong climbing ability, ground operation, eliminating safety hazards,
4). Interactive combination of jet and swirl, wide application range
Drilling fluid mixer's installation and application

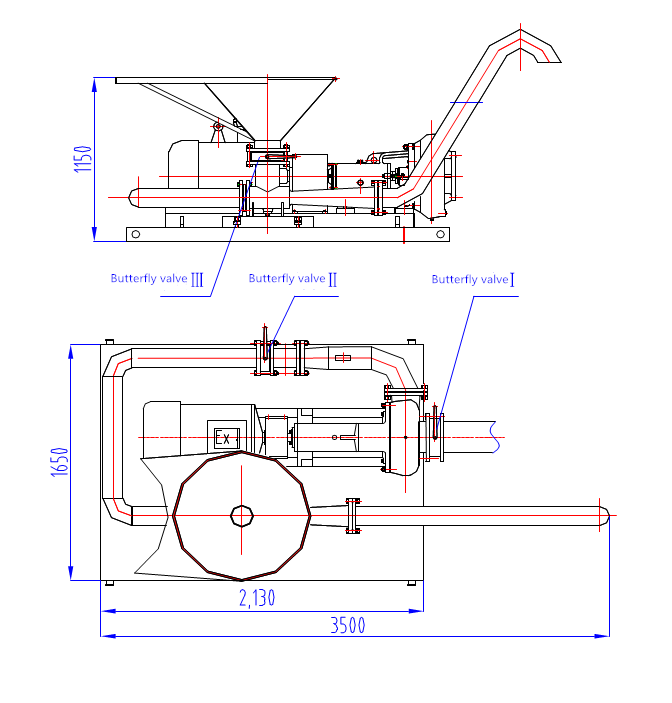

(1) Before use, open the inlet butterfly valve I and outlet butterfly valve II of the centrifugal mud pump. Then start the centrifugal pump. When the pump runs normally, open the inlet butterfly valve III of the funnel, then add the materials of drilling fluid (such as betonies and barite powder) and corresponding chemical additives (such as polymer) from the funnel to strengthen and make up the slurry.
(2) Before stop the centrifugal mud pump, close the inlet butterfly valve III of the funnel to prevent the instant pressure from lowering, resulting in overflowing of slurry from the surface of the funnel.
(3) When mud mixer stops working for a long term, close the suction inlet butterfly valve I, then loosen the pipe plugs under the casing of the sand pump and ones under the inlet pipe of the funnel to drain the slurry to prevent the pump body and pipeline from being blocked and frost cracked.

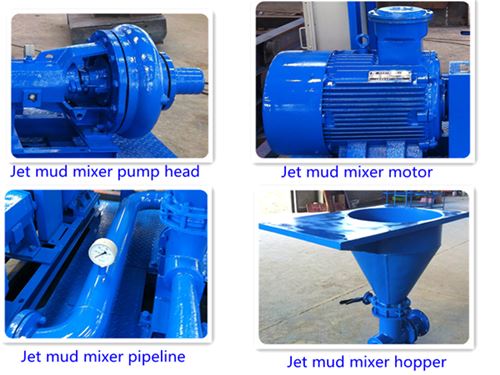

Jet Mud Mixer Details
FAQ
Q1: How can I make order online?
A: Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order.
Q2: Do you have MOQ limit?
A: The MOQ is 1 set.
Q3: What's your warranties?
A: 1 year after delivery
Q4: Can I buy parts separately?
A: Yes, all of the mud mixer parts can buy separately.
