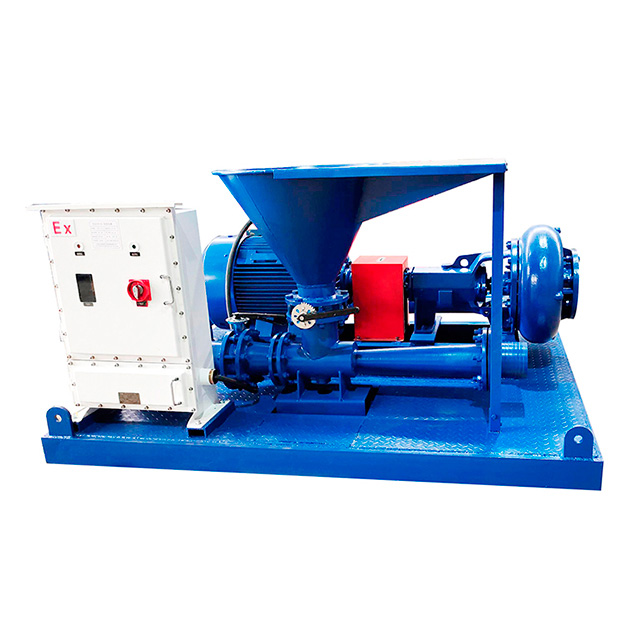

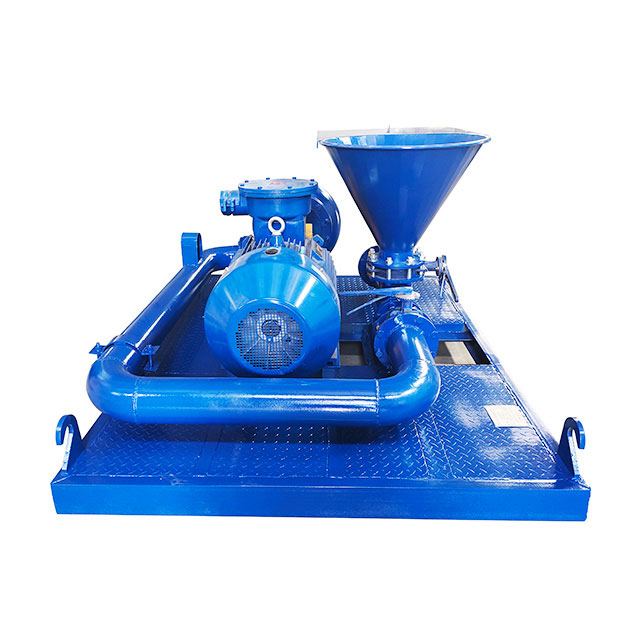

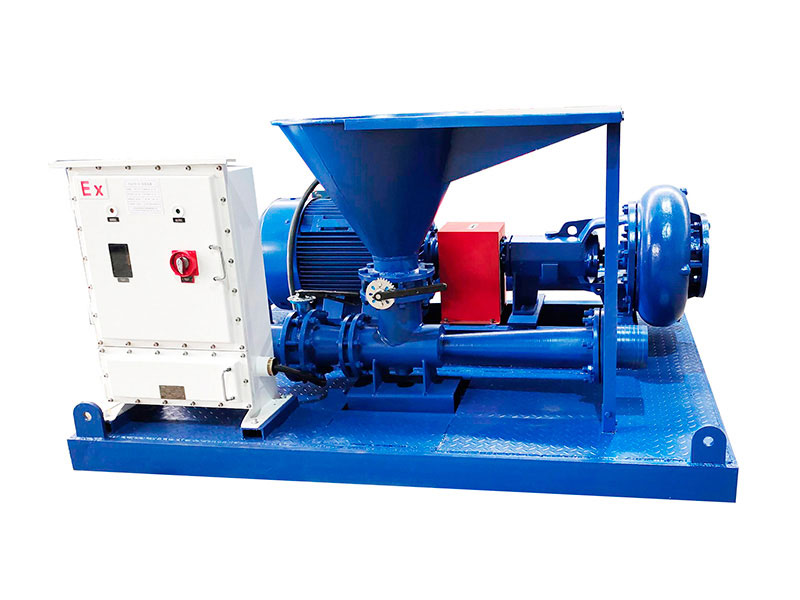

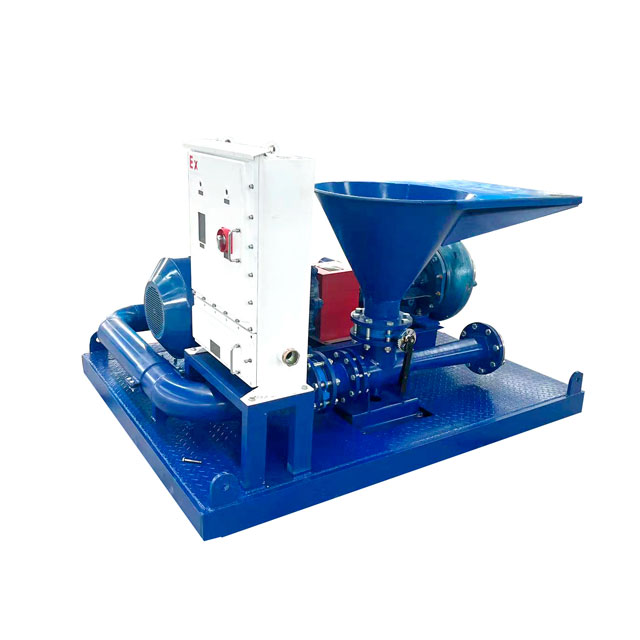

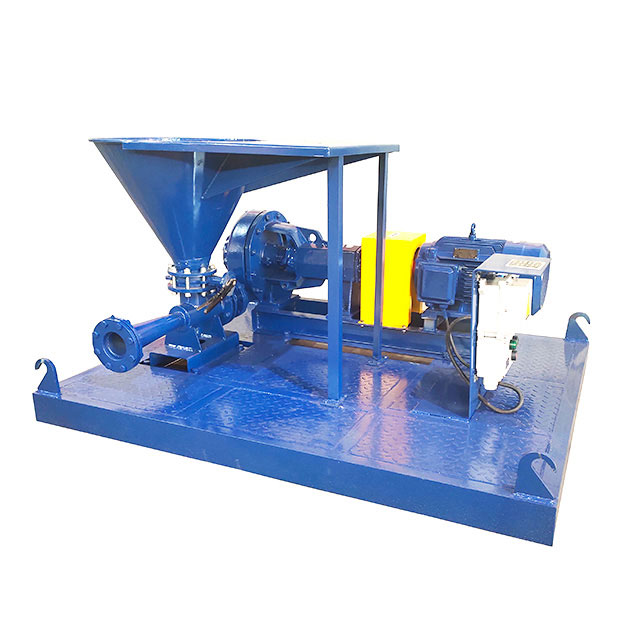

Hopper Mud Mixing Pump
Product Overview:
Hopper Mud Mixing Pump is the most commonly used fluid distribution device in oil field drilling. The slurry mixing device can reduce the risk of blowout, and can mix a large amount of weighting materials in a short time. If there is no drilling fluid mixing device with good performance, it may cause serious consequences.
1. Automatic and efficient ingredients,
2. Save labor costs and mobile operations,
3. Flexible operation, strong climbing ability, ground operation, eliminating safety hazards,
4. Interactive combination of jet and swirl, wide application range
Hopper Mud Mixing Pump Details
Hopper Mud Mixing Pump is the most commonly used fluid distribution device in oil field drilling. The slurry mixing device can reduce the risk of blowout, and can mix a large amount of weighting materials in a short time. If there is no drilling fluid mixing device with good performance, it may cause serious consequences.
Hopper Mud Mixing Pump Parameters
|
Model |
HHQ150-50 |
HHQ150-40 |
HHQ150-30 |
HHQ100-25 |
|
Matching pump |
SB6×8(55/75kW) |
SB5×6(45kW) |
SB5×6(37kW) |
SB3×4(15kW) |
|
Capacity |
240m3/h (1056GPM) |
180m3/h (792GPM) |
120m3/h (528GPM) |
60m3/h (264GPM) |
|
Pressure |
0.25~0.40MPa |
0.25~0.40MPa |
0.25~0.40MPa |
0.25~0.40MPa |
|
Inlet dia. |
150mm(6") |
150mm(6") |
150mm(6") |
150mm(4") |
|
Nozzle caliber |
50mm |
40mm |
30mm |
25mm |
|
Burden speed |
≤100kg/min |
≤80kg/min |
≤60kg/min |
≤40kg/min |
|
Density |
≤2.8g/cm3 |
≤2.4g/cm3 |
≤2.0g/cm3 |
≤1.5g/cm3 |
|
Viscosity |
≤120s |
≤120s |
≤80s |
≤60s |
|
Dim.(mm) |
2200*1700*1200 |
2200*1700*1200 |
2000*1650*1100 |
1800*1600*1000 |
|
Weight(kg) |
1680/1590 |
1400/1380 |
1280/1200 |
1100/1080 |
Xi'an HL drilling fluid mixing device is mainly composed of nozzle, mixing chamber, wendri tube, feeding funnel and butterfly valve. After a lot of field practical research, the mixing device developed by our company has the advantages of fast batching speed, good mixing effect, simple operation and adapting to more complicated working environment.
