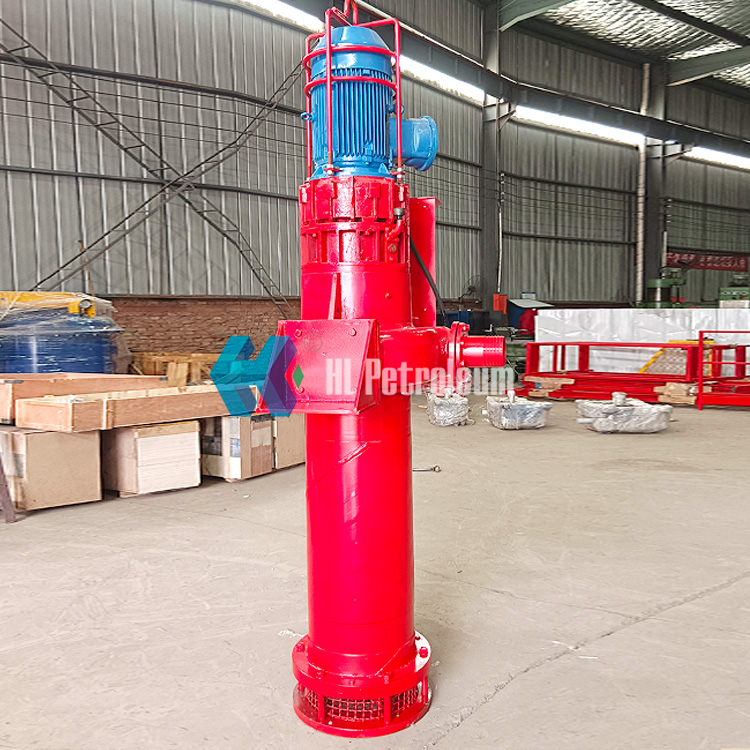

Centrifugal degasser, also called atmospheric Degasser is a highly efficient equipment that remove gas from the gas cut mud by accelerating the fluid through a submerged centrifugal pump's impeller. HLCQ300 centrifugal degassers|atmospheric degassers has many advantages although the treating efficiency is practically the same which is above 85%. Normally degasser is installed after shale shaker and widely used in various solids control system, and it is very important for recovering mud weight, stabilize mud viscosity performance, reduce drilling cost.
Centrifugal Degasser Installation
The degasser must be installed vertically because the impeller rotates in the lower half. The lower part of the deaerator must be installed in the tank. There must be no sand or solids around the filter so that the gas-mixed mud can enter the centrifugal degasser.
The pulp chamber has a mounting flange for mounting onto the tank. The centrifugal degasser weighs about 1400kg, so please pay attention to the strong installation on the tank, support the degasser. It is advisable to weld 2 I-beams to the mount.
The size of the I-beam depends on the tank size. If an 8-foot tank, then an 8×18 I-beam or equivalent is required. At least 2 sets of 3/4″ bolts and nuts on each side, a total of 4 sets have to be used to fix the degasser mounting base to the tank.
