Product details

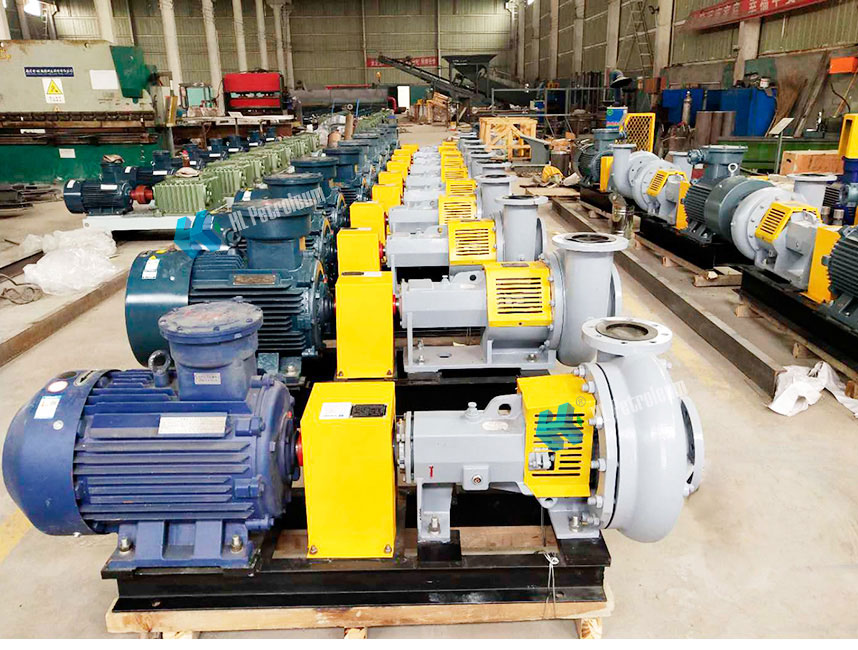

HL SB series sand pump is the main supporting pump for drilling fluid circulation in the solid control system of oil drilling rigs. It is the best supporting pump for desander, desilter and mixing funnel, and is also an ideal filling pump for mud pumps.
SB series sand pumps are sealed with mechanical seals, wear-resistant parts are precision casted with wear-resistant alloy ductile iron, and the base of the whole machine is cast integrally with long service life and reliable performance.
SB series sand pump shaft seal adopts grease lubrication; the bearing adopts oil lubrication, the bearing caps at both ends of the bearing have grease nipple, and the bearing can also be lubricated with grease.>>Send an Enquiry sales@hlsolidscontrol.com<<
Characteristics of Centrifugal Pump
1). Drilling fluid Sand Pump
2). 1320GPM Extra-large capacity
3). 115ft High-lift
4). 6 years Service life
5). Mechanical and packing double seal structure
6). Wear resistant cast iron pump shell
7). Metric and imperial two connection methods
8). Low maintenance costs
>>Send an Enquiry sales@hlsolidscontrol.com<<
Centrifugal Pump Parameters
|
Model |
Capacity (m3/h) |
Head (m) |
Efficiency (%) |
NPSH (m) |
Power (kW) |
|
| Shaft power | Motor power | |||||
|
SB8×6-14 |
320 |
40 |
65 |
4.0 |
53.63 |
75 |
|
SB8×6-13 |
290 |
33 |
64 |
4.5 |
40.7 |
55 |
|
SB8×6-12 |
270 |
28 |
64 |
4.5 |
32 |
45 |
|
SB8×6-14I |
200 |
40 |
62 |
3.2 |
35.1 |
55 |
|
SB8×6-13I |
180 |
34 |
60 |
3.0 |
27.8 |
45 |
|
SB8×6-12I |
160 |
30 |
60 |
3.0 |
22 |
30 |
|
SB6×5-14 |
200 |
40 |
62 |
3.2 |
35.1 |
55 |
|
SB6×5-13 |
180 |
34 |
60 |
3.0 |
27.8 |
45 |
|
SB6×5-12 |
160 |
30 |
60 |
3.0 |
22 |
37 |
|
SB6×5-11 |
200 |
21 |
62 |
2.5 |
18.5 |
30 |
|
SB6×5-9 |
160 |
12 |
58 |
3.0 |
9.02 |
15 |
|
SB5×4-14 |
120 |
45 |
56 |
4.6 |
23.3 |
37 |
|
SB5×4-13 |
90 |
40 |
56 |
4.5 |
17.5 |
30 |
|
SB5×4-12 |
90 |
30 |
56 |
4.5 |
13.1 |
22 |
|
SB5×4-11 |
90 |
24 |
56 |
4.5 |
10.5 |
18.5 |
|
SB5×4-10 |
85 |
20 |
56 |
4.2 |
8.4 |
15 |
|
SB5×4-9 |
80 |
19.5 |
54 |
4.5 |
7.9 |
15 |
|
SB4×3-13 |
50 |
40 |
48 |
4.5 |
11.3 |
18.5 |
|
SB4×3-12 |
45 |
30 |
47 |
4 |
7.8 |
15 |
|
SB4×3-11 |
45 |
24 |
46 |
4 |
6.4 |
11 |
|
SB3×2-13 |
25 |
35 |
40 |
3 |
5.9 |
11 |
|
SB3×2-12 |
23 |
29 |
39 |
3 |
5.1 |
7.5 |
|
SB3×2-11 |
20 |
23 |
39 |
3 |
3.2 |
5.5 |
Xi'an HL can supply Mission sand pump 8x6 series and XBSY SB6x8 series centrifugal pumps, also the spare parts.>>Send an Enquiry sales@hlsolidscontrol.com<<
Why choose us?
HL Factory

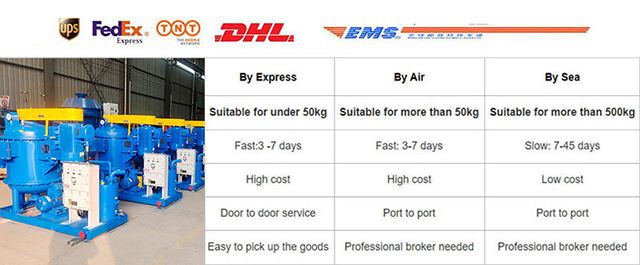

About Shipping
