Mud Gun
Product Overview:
The mud gun is mainly used in the solid-liquid separation system. The configuration and the mud tank can be divided into three types: high pressure, medium pressure and low pressure.
1.360° mixing mud tank, no blind spots
2.Transporting drilling fluid between mud tanks
3.Polyurethane nozzle
Mud Gun Details
HL mud gun is a special tool for preventing mud precipitation in the oil field drilling mud circulation system. The power source of the mud gun can be a mud pump or a jet mixing device.
The drilling fluid gun produced by our company is aimed at the mud solids control system of the ZJ drilling rig. It is mainly used in the drilling mud circulation system. It is used in conjunction with the mud agitator. It uses high pressure for the dead angle between the bottom and the wall of the mud tank. Spray to prevent mud from settling.
Mud gun features
1.360° mixing mud tank, no blind spots
2.Transporting drilling fluid between mud tanks
3.Polyurethane nozzle
Mud gun parameters
|
Model |
HNJQ-50 |
HNJQ-80 |
|
Nozzle diameter (mm) |
50 |
80 |
|
Number of nozzles |
1-3 |
1-3 |
|
Working Pressure(Pa) |
≤1.6MPa |
≤1.6MPa |
|
Rotation angle |
360° |
360° |

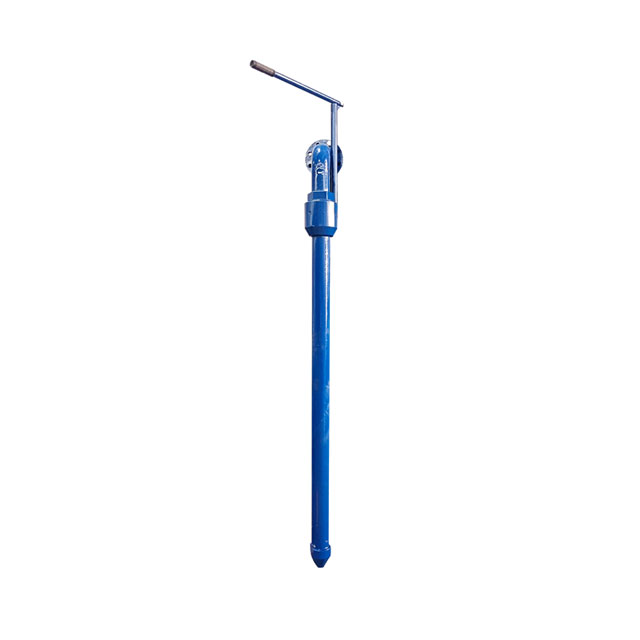

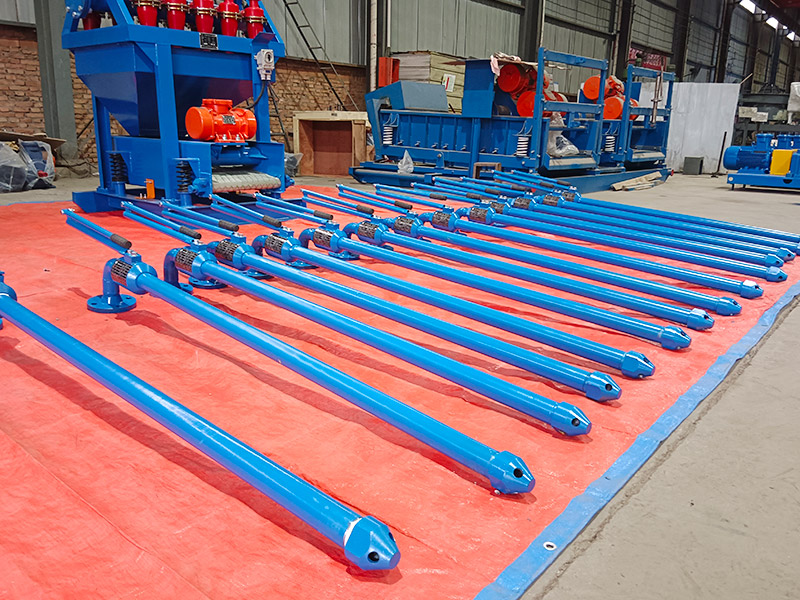

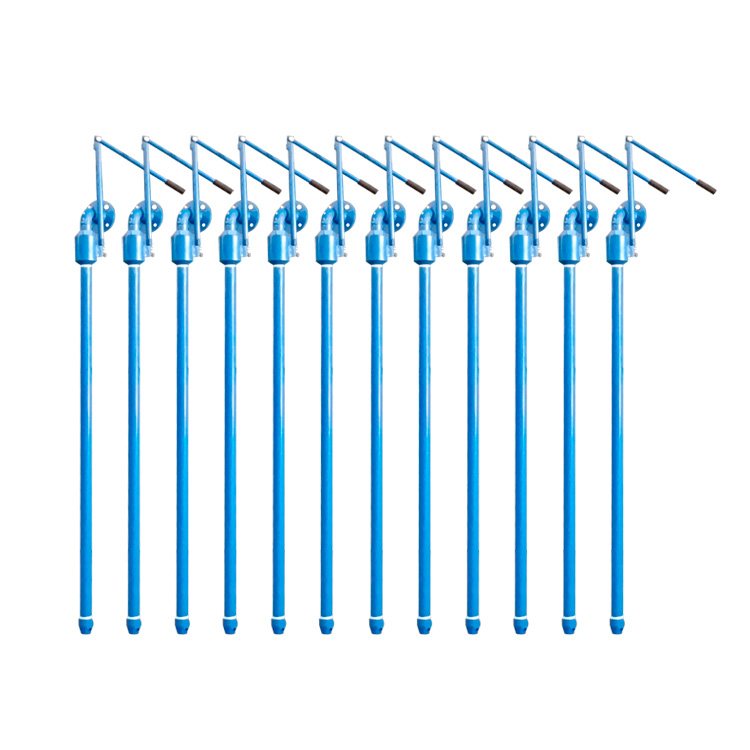

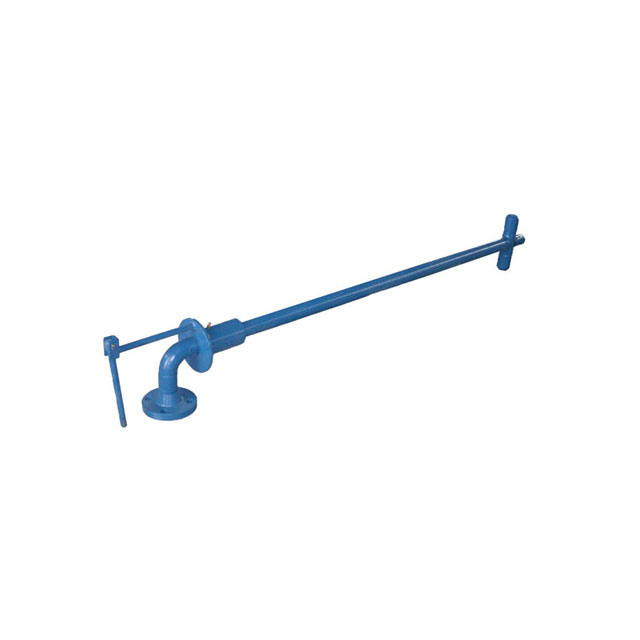

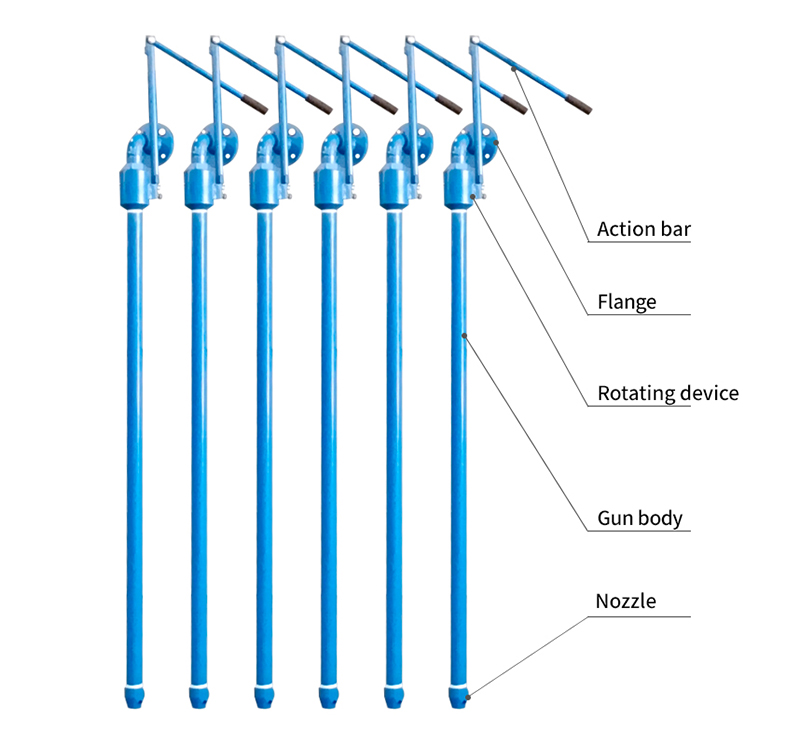

Mud gun pictures
