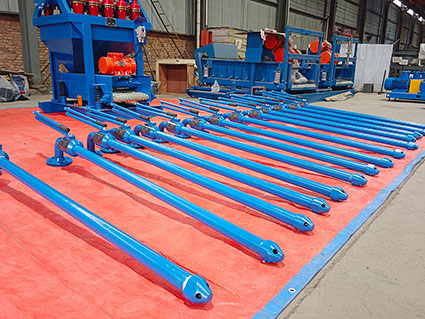

Mud Cleaning Gun

The main function of the mud cleaning gun is to prevent the sedimentation of mud. It generates a strong eddy current in the drilling mud circulation system by means of high-pressure rotary jetting, so that the solid particles in the mud remain suspended and do not settle in the dead angle between the bottom of the mud tank and the tank wall. The power source of this device can be a mud pump or a jet mixing device, which method depends on the actual situation.

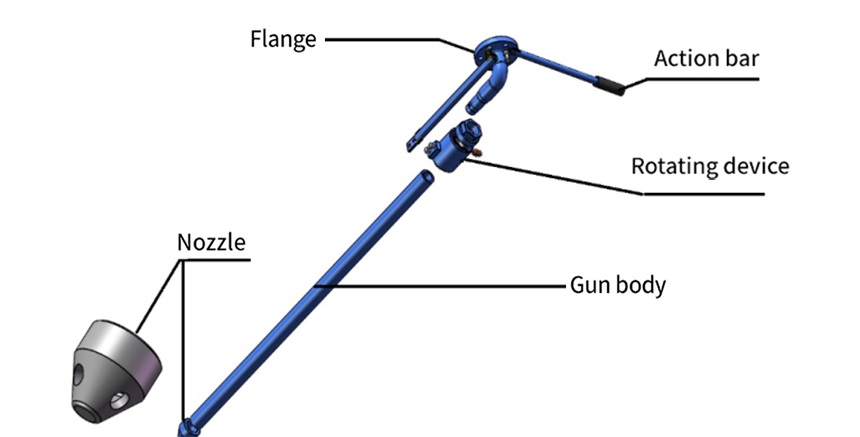

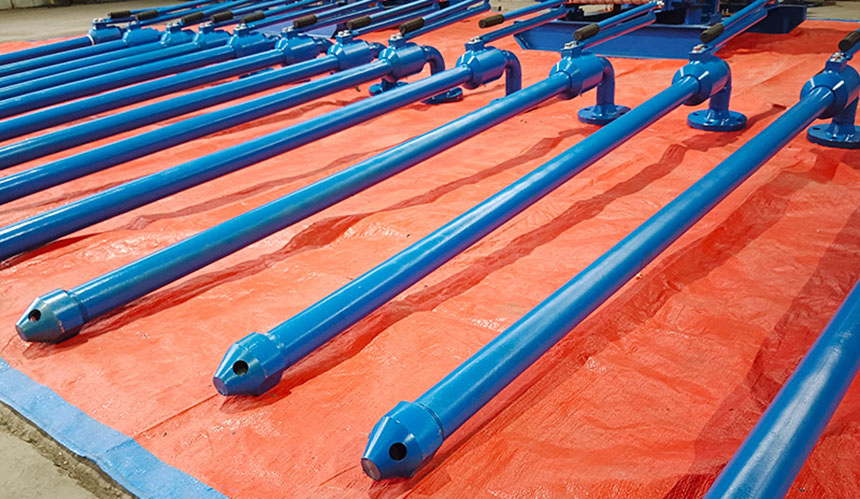

Mud Cleaning Gun Structure

The mud cleaning gun produced by Xi'an HL is specially designed for drilling mud solids control system, and its application range covers a variety of drilling scenarios, including mud cooling, natural gas hydrate, tundra drilling, oil and gas drilling and geothermal drilling. It is used in conjunction with the mud agitator in the drilling mud circulation system to ensure that the solid particles in the mud will not settle, thereby maintaining the efficiency and safety of drilling operations.

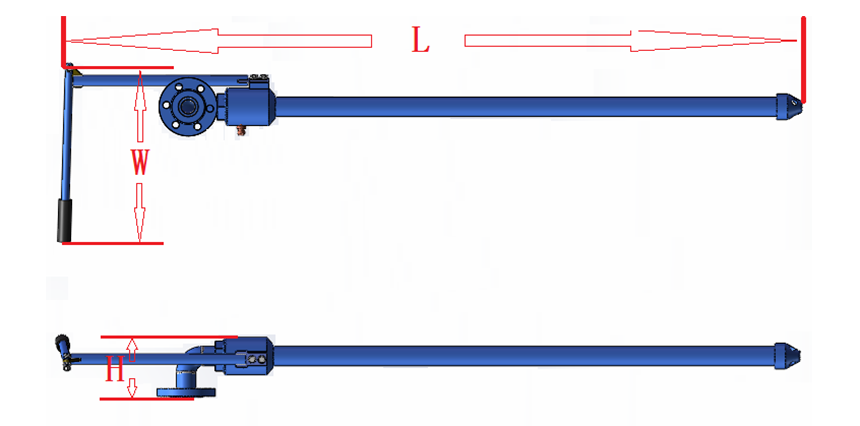

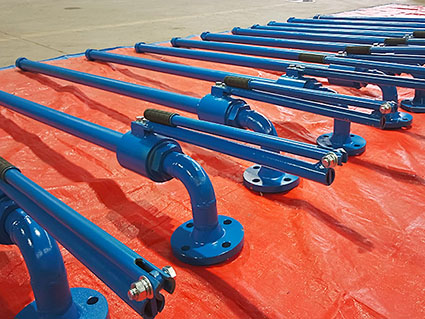

Mud Cleaning Gun Dimensions

Model	HNQ50			HNQ65			HNQ80
Flange	DN50			DN65			DN80
Dimension	L	W	H	L	W	H	L	W	H
	Commission	555	185	Commission	570	200	Commission	585	215
Connection	Bolted			Bolted			Bolted

According to the actual pressure level, mud cleaning guns can be divided into three types: high pressure, medium pressure and low pressure. The high-pressure mud gun is usually supplied by a branch stream discharged from the drilling pump, and the pressure level can reach 1-6MPa, which is suitable for relatively high pressure scenarios. The medium and low pressure mud guns are supplied by a centrifugal sand pump, and the pressure level is between 0.2 and 0.3 MPa, which is suitable for low pressure scenarios.


Mud Cleaning Gun Parameters

Model	HNQ50	HNQ65	HNQ80
Working Pressure	＜6.4MPa	＜6.4MPa	＜6.4MPa
Nozzle Quantity	1~3	1~3	1~3
Rotation Angle	300°	300°	300°

Xi'an HL Petroleum Equipment Co., Ltd. as a professional petroleum equipment manufacturer, we can customize different types of mud cleaning guns according to your requirements. With an experienced engineer team and advanced production equipment, we can provide customers with high-quality, reliable mud cleaning gun solutions.
