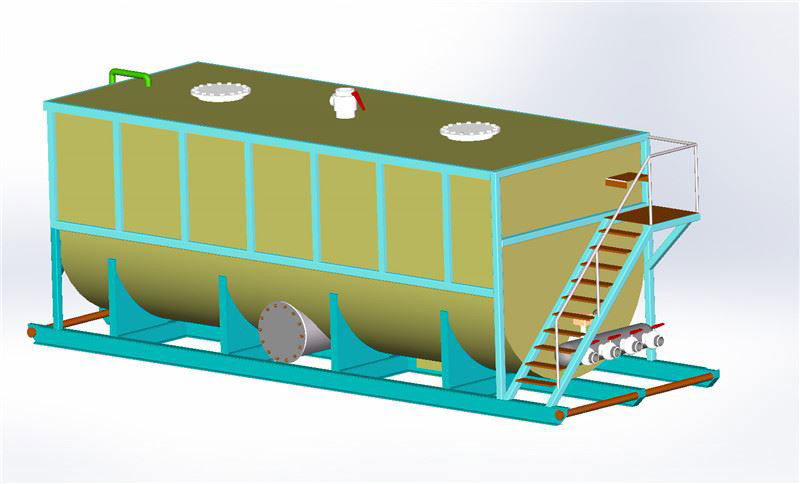

Large Capacity Frac Tanks
Product Overview:
The fracturing fluid tank is a ground device used to store and configure acidified fracturing fluid during acid fracturing operations. It can be configured and temporarily stored on the ground for acid fracturing fluid.
Large Capacity Frac Tanks Details
The large capacity frac tank is a ground device used to store and configure acidified fracturing fluid during acid fracturing operations. It can be configured and temporarily stored on the ground for acid fracturing fluid.
Frac Tanks Parameters
1. Overall size 7700×2500×3000mm
2. Volume: 40 cubic meters.
3. Tank structure: U-shaped.
4. Main pipe diameter specifications:
4.1. Liquid discharge port: DN100 (4 inches)
4.2. Liquid inlet: DN100 (4 inches)
4.3. Warehouse: DN500 (20 inches)
4.4. Clean liquid port: DN600 (24 inches)
4.5. Safety valve: DN100 (4 inches)
Frac Tank Features
1. Large volume;
2. acid and corrosion resistance;
3. U-shaped bottom, easy to clean;
4. high strength of corrugated board structure
