32sb180j spray pump parts
Product Overview:
32SB180J spray pump spare parts list
32sb180j spray pump parts Details

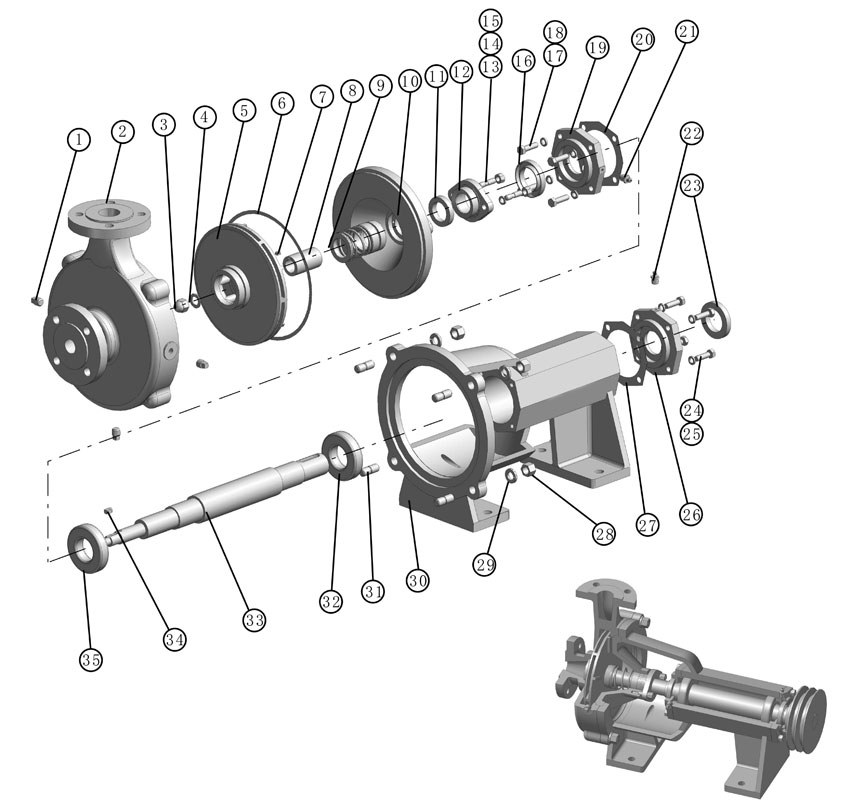

32SB180J Spray Pump Explosive Drawing
32SB180J spray pump spare parts list
| Item | Description | Part No. | Qty. | Item | Description | Part No. | Qty. |
| 1 | Plug | 32SB180J0001 | 3 | 19 | Bearing cover | 32SB180J0019 | 1 |
| 2 | Pump body | 32SB180J0002 | 1 | 20 | Paper gasket | 32SB180J0020 | 1 |
| 3 | Cap nut | 32SB180J0003 | 1 | 21 | Oil cup | 32SB180J0021 | 1 |
| 4 | Lock gasket | 32SB180J0004 | 1 | 22 | Oil cup | 32SB180J0022 | 1 |
| 5 | Impeller | 32SB180J0005 | 1 | 23 | Oil seal | 32SB180J0023 | 1 |
| 6 | Paper gasket | 32SB180J0006 | 1 | 24 | Screw bolts | 32SB180J0024 | 4 |
| 7 | Key | 32SB180J0007 | 1 | 25 | Spring gasket | 32SB180J0025 | 4 |
| 8 | Shaft sleeve | 32SB180J0008 | 1 | 26 | Bearing cover | 32SB180J0026 | 1 |
| 9 | Mechanical seal | 32SB180J0009 | 1 | 27 | Paper gasket | 32SB180J0027 | 1 |
| 10 | Pump cover | 32SB180J0010 | 1 | 28 | Screw nuts | 32SB180J0028 | 4 |
| 11 | Packing | 32SB180J0011 | 1 | 29 | Spring gasket | 32SB180J0029 | 4 |
| 12 | Packing gland set | 32SB180J0012 | 1 | 30 | Pump base | 32SB180J0030 | 1 |
| 13 | Double head studs | 32SB180J0013 | 2 | 31 | Double head studs | 32SB180J0031 | 4 |
| 14 | Spring gasket | 32SB180J0014 | 2 | 32 | Bearing | 32SB180J0032 | 1 |
| 15 | Screw nuts | 32SB180J0015 | 2 | 33 | Shaft | 32SB180J0033 | 1 |
| 16 | Oil seal | 32SB180J0016 | 1 | 34 | Key | 32SB180J0034 | 1 |
| 17 | Screw bolts | 32SB180J0017 | 4 | 35 | Bearing | 32SB180J0035 | 1 |
| 18 | Spring gasket | 32SB180J0018 | 4 |

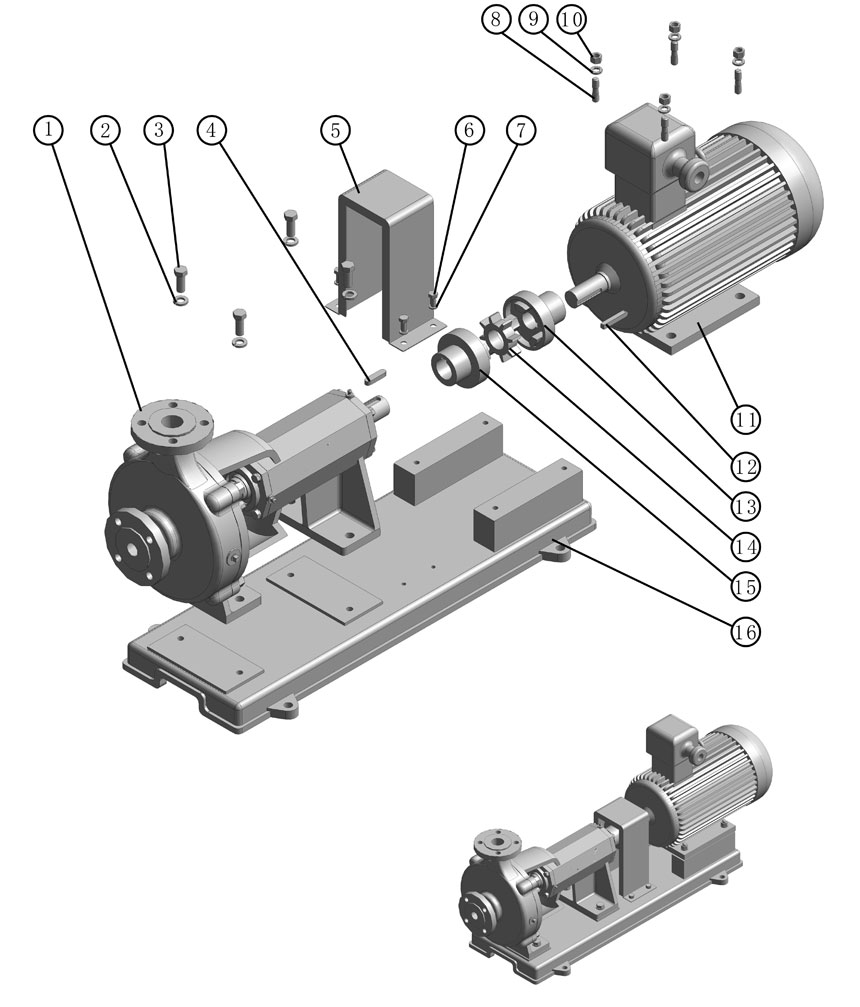

32SB180J Spray Pump Set Explosive Drawing
32SB180J spray pump set spare parts list
| Item | Description | Part No. | Qty. | Item | Description | Part No. | Qty. |
| 1 | Pump head | 32SB180J0001S | 1 | 9 | Spring gasket | 32SB180J0009S | 4 |
| 2 | Spring gasket | 32SB180J0002S | 4 | 10 | Screw nut | 32SB180J0010S | 4 |
| 3 | Screw bolt | 32SB180J0003S | 4 | 11 | Electromotor | 32SB180J0011S | 1 |
| 4 | Key | 32SB180J0004S | 1 | 12 | Key | 32SB180J0012S | 1 |
| 5 | Shield cover | 32SB180J0005S | 1 | 13 | Electromotor joint | 32SB180J0013S | 1 |
| 6 | Screw bolts | 32SB180J0006S | 4 | 14 | Slip dollop KL | 32SB180J0014S | 1 |
| 7 | Washer | 32SB180J0007S | 4 | 15 | Pump joint | 32SB180J0015S | 1 |
| 8 | Double head studs | 32SB180J0008S | 4 | 16 | Foundation | 32SB180J0016S | 1 |

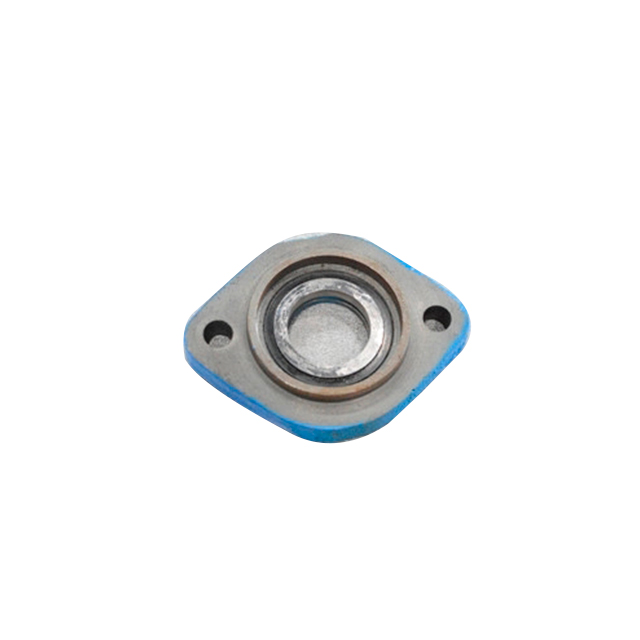

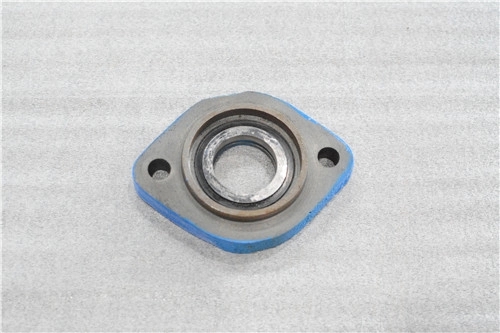

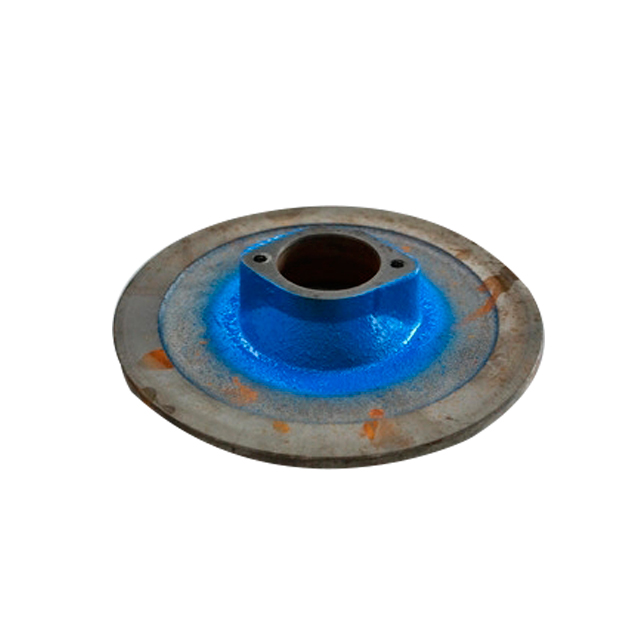

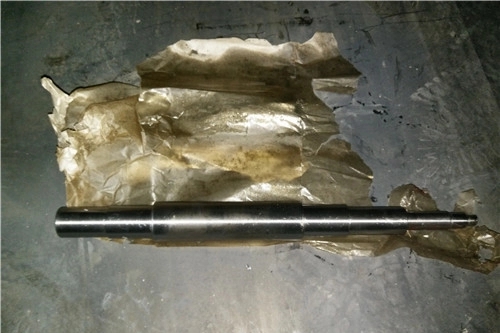

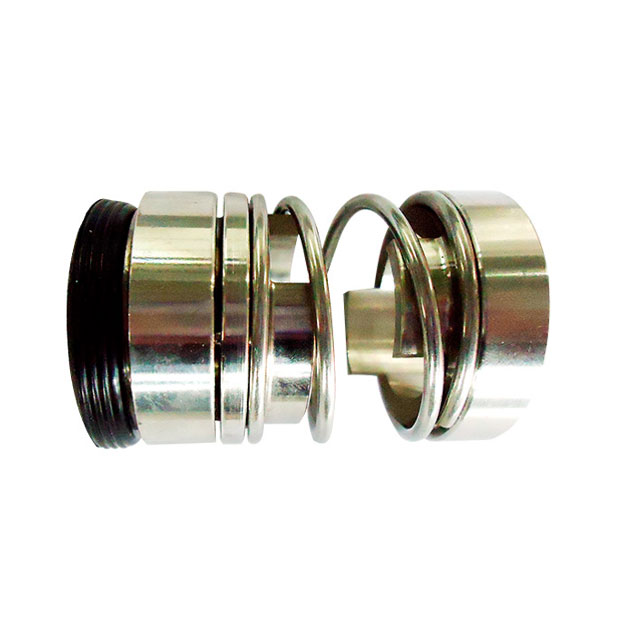

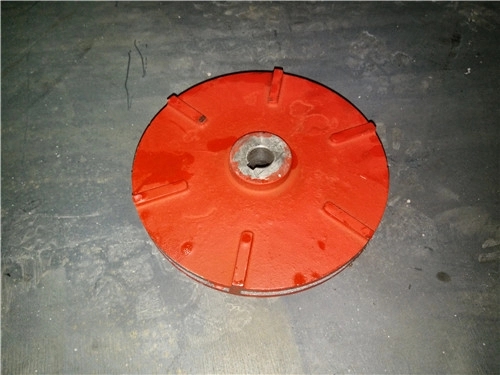

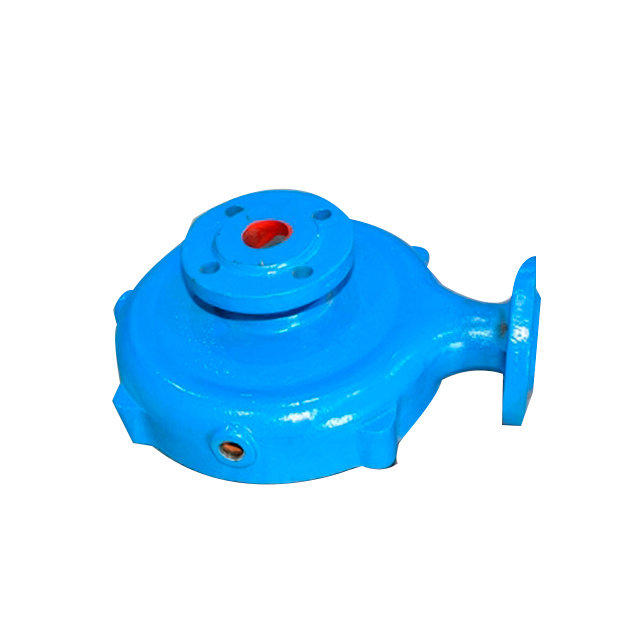

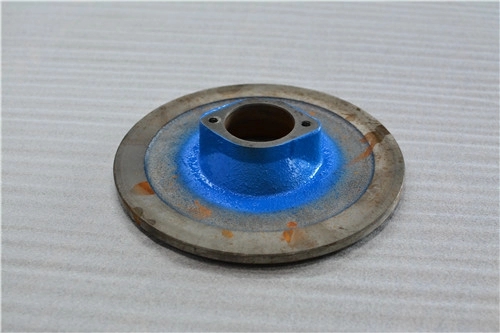

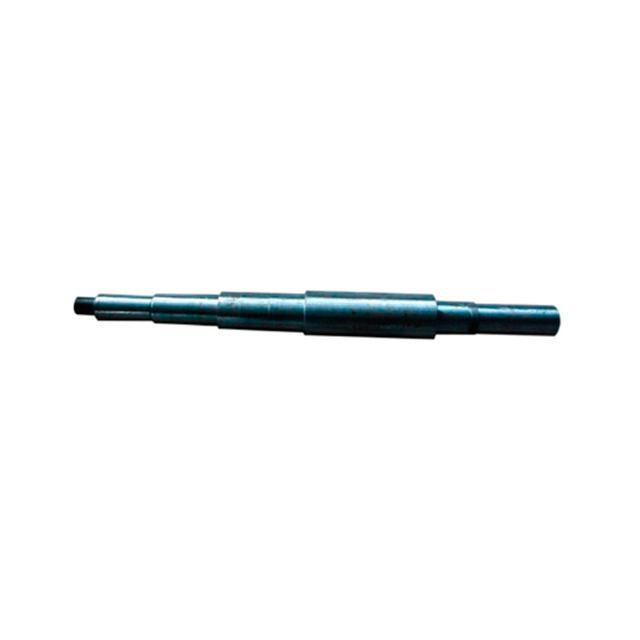

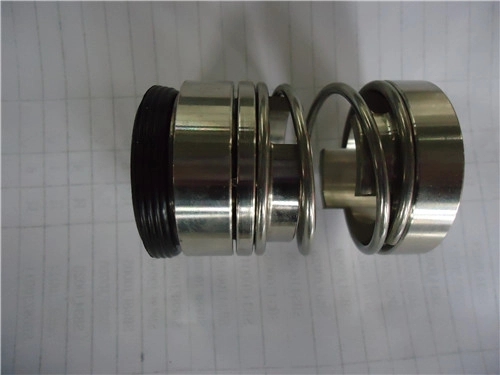

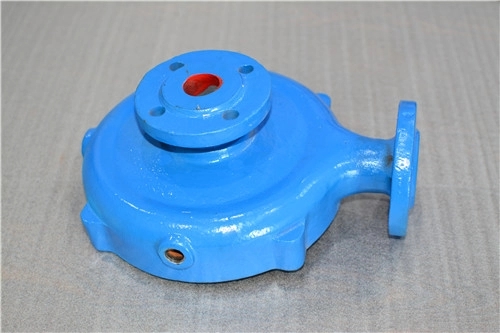

32SB180J spray pump parts pictures
 |
 |
 |
 |
 |
 |
