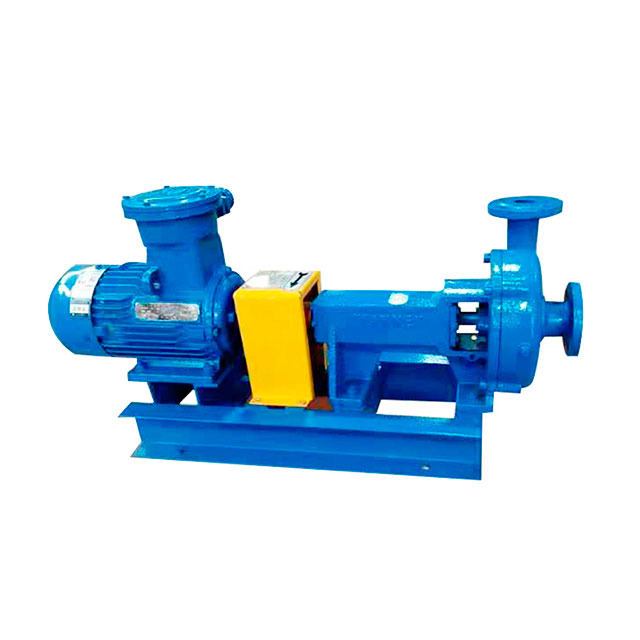

40SB180J Oilfield Electric Spray Pump
Product Overview:
Spraying pump is a kind of equipment especially matched for mud pump for oil drilling, with the function of flushing and cooling sleeve and pistons in the process of pump operation, as well as include the other situation for transportation mud.
• Mechanical and packing double sealing, no leakage
• Compact structure, beautiful and generous
• Explosion-proof motor, special for oil field
• The wetted parts are made of wear-resistant cast iron, which has a long service life.

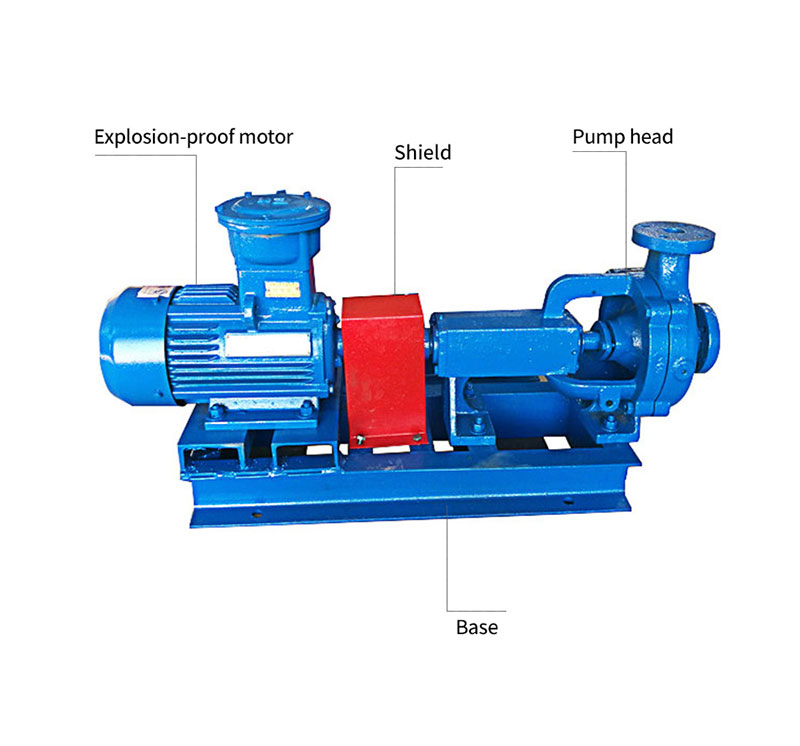

40SB180J Oilfield Electric Spray Pump Details
Spray pump is a kind of equipment especially matched for mud pump for oil drilling, with the function of flushing and cooling sleeve and pistons in the process of pump operation, as well as include the other situation for transportation mud.
40SB180J Oilfield Electric Spray Pump parameters
40SB180J-3kW Flow 15m3/h, Lift 10m, Efficiency 53%, Speed 1420/1750 r/min, Motor power 4Kw

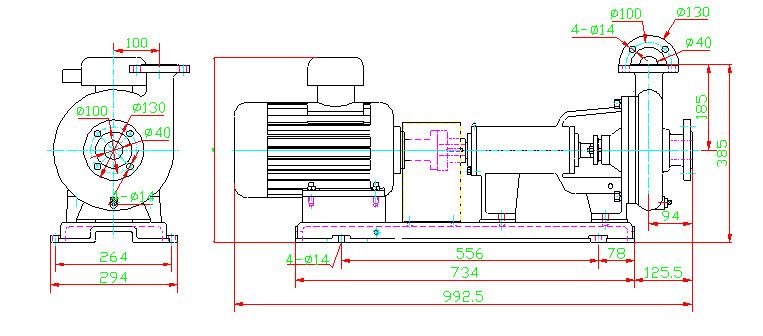

Spray Pump Outline Structure Drawing

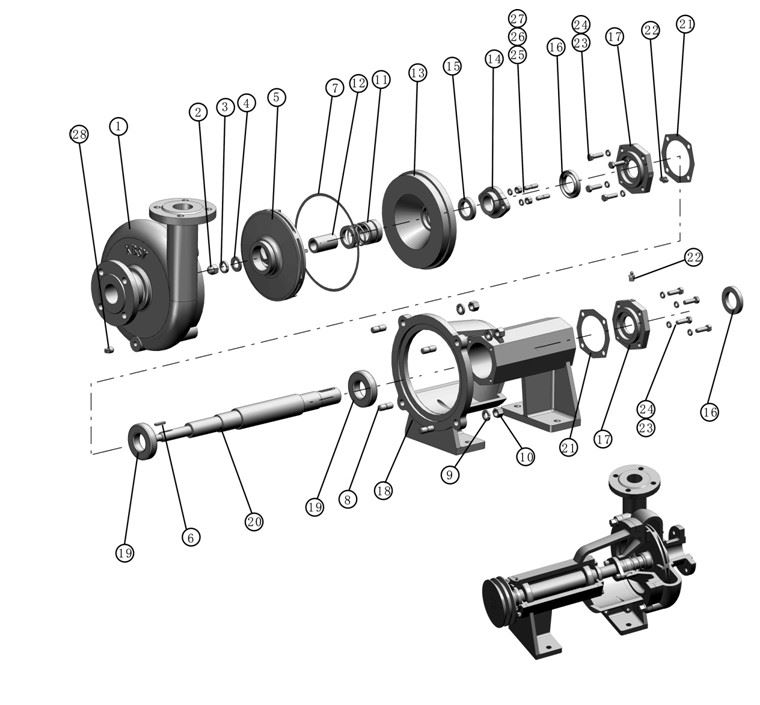

Explosive Drawing and Parts List
|
Item |
Description |
Part No |
Qty. |
Item |
Description |
Part No |
Qty. |
|
1 |
Pump body |
40SB180J0001 |
1 |
15 |
Packing |
40SB180J0015 |
1 |
|
２ |
Cap nut |
40SB180J0002 |
1 |
16 |
Oil seal |
40SB180J0016 |
２ |
|
３ |
Spring gasket |
40SB180J0003 |
１ |
17 |
Bearing cover |
40SB180J0017 |
２ |
|
４ |
Washer |
40SB180J0004 |
１ |
18 |
Pump base |
40SB180J0018 |
1 |
|
５ |
Impeller |
40SB180J0005 |
1 |
19 |
Bearing |
40SB180J0019 |
２ |
|
６ |
Key |
40SB180J0006 |
1 |
20 |
Shaft |
40SB180J0020 |
1 |
|
７ |
Paper gasket |
40SB180J0007 |
1 |
21 |
Paper gasket |
40SB180J0021 |
２ |
|
８ |
Double head studs |
40SB180J0008 |
4 |
22 |
Oil cup |
40SB180J0022 |
２ |
|
９ |
Screw nuts |
40SB180J0009 |
4 |
23 |
Screw bolts |
40SB180J0023 |
８ |
|
10 |
Spring gasket |
40SB180J0010 |
4 |
24 |
Spring gasket |
40SB180J0024 |
８ |
|
11 |
Mechanical seal |
40SB180J0011 |
1 |
25 |
Double head studs |
40SB180J0025 |
２ |
|
12 |
Shaft sleeve |
40SB180J0012 |
1 |
26 |
Screw nuts |
40SB180J0026 |
２ |
|
13 |
Pump cover |
40SB180J0013 |
1 |
27 |
Spring gasket |
40SB180J0027 |
２ |
|
14 |
Packing gland set |
40SB180J0014 |
1 |
28 |
Bolt Plug |
40SB180J0028 |
１ |
