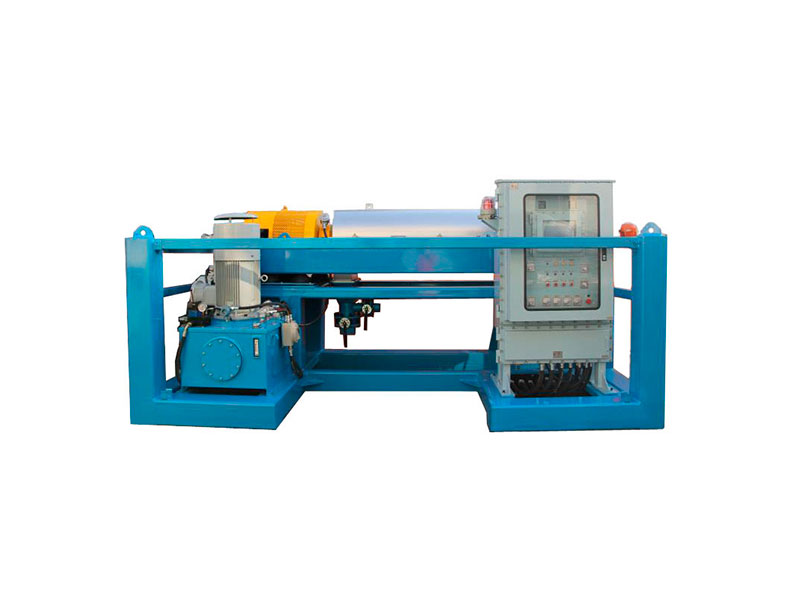

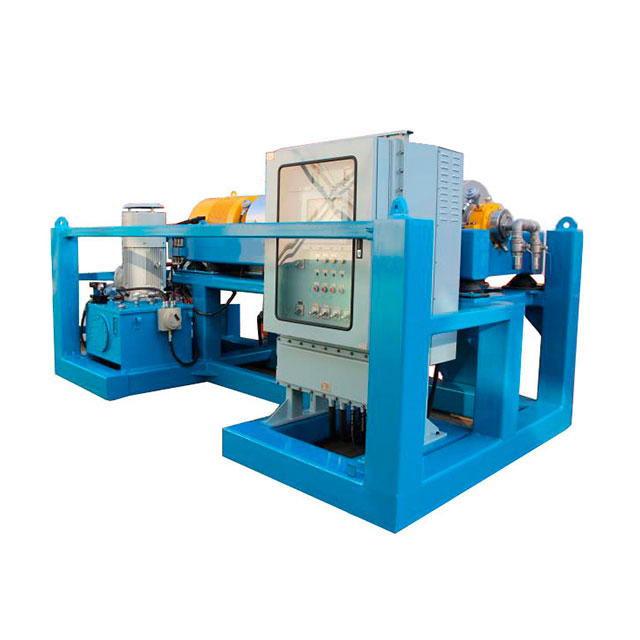

Hydraulic Drive Centrifuge
Product Overview:
The drum and propeller hydraulic drive system of the full hydraulic centrifuge drives the oil pump through a motor to form two oil circuits to drive the hydraulic motor and the hydraulic differential. The advantages of the full hydraulic drive centrifuge make it suitable for aggravated mud under high temperature environment separate. The compact single skid-mounted structure of the fully hydraulic decanter centrifuge makes it easier to install on site.
Hydraulic Drive Centrifuge Details
The drum and propeller hydraulic drive system of the full hydraulic centrifuge drives the oil pump through a motor to form two oil circuits to drive the hydraulic motor and the hydraulic differential. The advantages of the full hydraulic drive centrifuge make it suitable for aggravated mud under high temperature environment separate. The compact single skid-mounted structure of the fully hydraulic decanter centrifuge makes it easier to install on site.

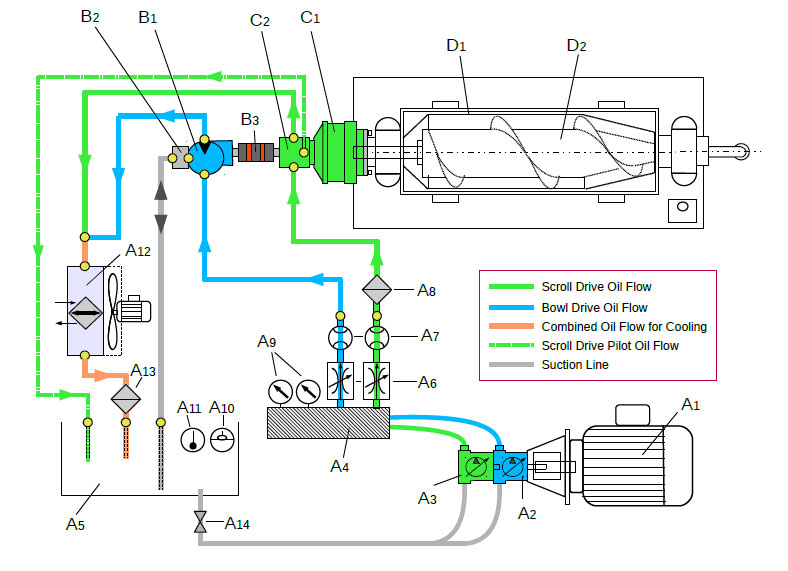

Working principle of full hydraulic drive system
The full hydraulic system includes A hydraulic pump B drum drive hydraulic motor C screw drive (hydraulic differential). Hydraulic pump A delivers hydraulic oil to the screw drive and drum drive through two separate and independent lines. Motor A1 drives integrated hydraulic pumps A2 and A3. Each working line is equipped with its own hydraulic pump and control. The pump contains all setting devices, safety valves and pressure gauges. Through this system, during the operation of the centrifuge, the rotation speed of the drum and the differential speed of the screw can be independently and continuously manually adjusted steplessly.
