    How does mud gun work?

    Time: 2024-08-08 Source: Author: HL Solidscontrol

    What are the functions and principles of drilling fluid guns? Drilling fluid guns are special equipment used with drilling fluid agitators to stir the sand in the drilling fluid tank and the drilling fluid in the dead corners.

    Drilling fluid guns can be divided into fixed drilling fluid guns and rotating drilling fluid guns according to their structure. Fixed drilling fluid guns are widely used in drilling tanks of foreign solid control systems. It is to install the drilling fluid gun at two diagonals about 200mm from the bottom of the tank. The nozzle is parallel to the longitudinal tank wall of the drilling fluid tank to form a rotation of the drilling fluid layer. For example, the drilling fluid gun set in the solid control system of the American ideal drilling rig is a fixed drilling fluid gun.

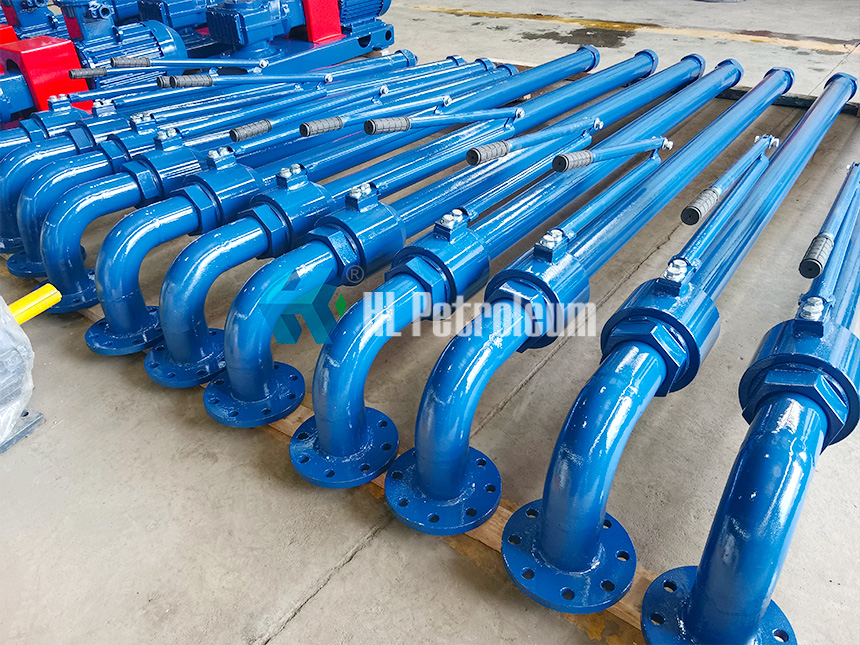

    mud gun

    Rotating drilling fluid guns are divided into two types: manual adjustment and self-spinning. Manual adjustment drilling fluid guns can be divided into swinging and rotating types. The rotary drilling fluid gun needs to be fixed on the top of the drilling fluid tank, the gun rod is deep in the drilling fluid tank, and the nozzle is 200-300mm away from the bottom of the drilling fluid tank. The rotation of the drilling fluid gun forms the rotation of the drilling fluid layer to achieve the purpose of stirring. Most of the domestic drilling fluid guns are manually adjusted.

    Xi'an Henglian Petroleum Equipment Co., Ltd. produces and processes mud guns with a full range of models. New and old friends are welcome to purchase. For inquiries, call sales@hlsolidscontrol.com
