Drilling Fluid Centrifuge – Optimizing Mud Handling Efficiency
Time: 2024-05-20 Source: Solids Control Equipment Author: Mrek
Centrifuge are indispensable solid control equipment in drilling operations (especially medium-deep wells and horizontal wells). Drilling fluid centrifuges are generally installed at the last stage of the solid control system. They are mainly used to separate suspensions with solid particles with a diameter of ≥ 2 μm, or to separate two types of emulsions with different densities that are immiscible with each other. The liquid separates.
HL solid control centrifuge
The core components of the HL solid control centrifuge are made of duplex stainless steel, which is wear-resistant and corrosion-resistant, and provides overload protection and flow control to ensure continuous discharge and safe operation of the centrifuge. In addition, the HL solid control centrifuge also adopts explosion-proof Designed to perfectly adapt to various harsh environments.
HL drilling fluid centrifuge
HL drilling fluid centrifuge LW series mainly includes four types: LW355, LW450, LW500 and LW600. The centrifuge adopts line frequency control system and is divided into N1 type, N2 type and N3 type according to the rated speed of the drum, which respectively represent the rated speed of 1800r/ min, 2000r/min and 2200r/min. In addition, centrifuges with variable frequency control systems are also available.

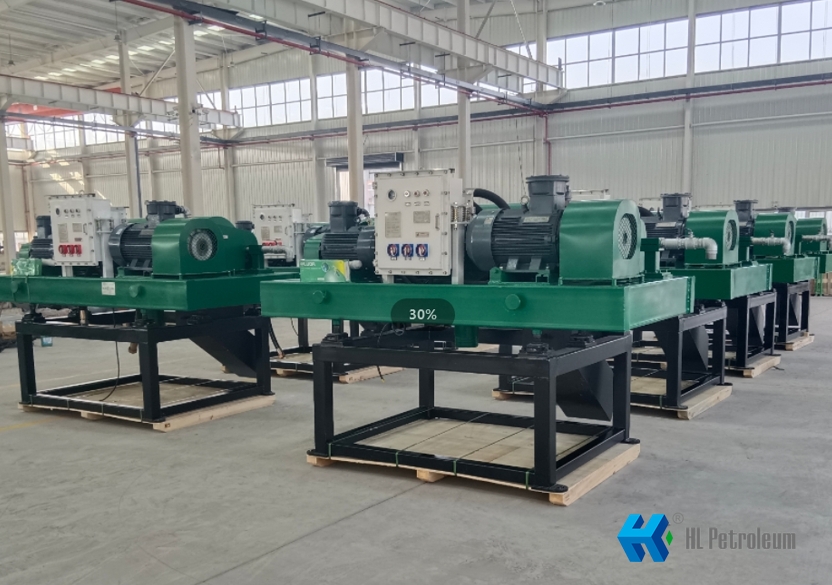

Decanter centrifuge
HL decanter centrifuge provides two drive modes: rated frequency drive and variable frequency drive. The rated frequency drive decanter centrifuge can change the speed by changing the drive pulley, and the variable frequency drive centrifuge can easily realize a wide range by displaying parameters such as speed and operating current. Stepless speed regulation.
Fully hydraulic centrifuge
The drum and propeller hydraulic drive system of the HL fully hydraulic centrifuge forms two oil circuits through a motor-driven oil pump to drive the hydraulic motor and hydraulic differential. The advantages of HL fully hydraulically driven centrifuge make it suitable for weighted mud separation in high temperature environments. The fully hydraulic decanter centrifuge adopts a compact single skid-mounted structure, making it easier to install on site. The full hydraulic system includes A hydraulic pump B drum drive hydraulic motor C screw drive (hydraulic differential).
Hydraulic pump A delivers hydraulic oil to the screw drive and drum drive via two independent lines. Electric motor A1 drives integrated hydraulic pumps A2 and A3. Each work line is equipped with its own hydraulic pump and controls. The pump includes all settings, safety valve and pressure gauge. Through this system, during the operation of the centrifuge, the rotation speed of the drum and the differential speed of the screw can be independently and continuously manually adjusted steplessly. It has the advantages of good sand removal effect, low energy consumption, light workload, reliable operation, long life, and low vibration and noise.
HL Petroleum has more than 20 years of research, design and manufacturing experience, and we provide customers with a full range of solids control solutions. HL solid control centrifuges have complete specifications and models and support customization. The product technology is excellent and the performance is excellent. We are always committed to bringing customers a better product experience. If you are interested in our equipment, please contact us.
