What are the advantages of the mud agitator produced by HL Petroleum

The agitator is a device that forces liquid and gas media to convection and mix them uniformly. Stirrer type, size, and rotational speed all affect the distribution of stirring power between bulk flow and turbulent pulsation. In general, the power distribution of a turbine agitator is favorable for turbulent pulsation, while a propeller agitator is favorable for bulk flow. For the same type of agitator, under the condition of the same power consumption, the power of the agitator with large diameter and low speed is mainly consumed in the overall flow, which is conducive to macro mixing. Small-diameter, high-speed agitator, the power is mainly consumed by turbulent pulsation, which is conducive to micro-mixing

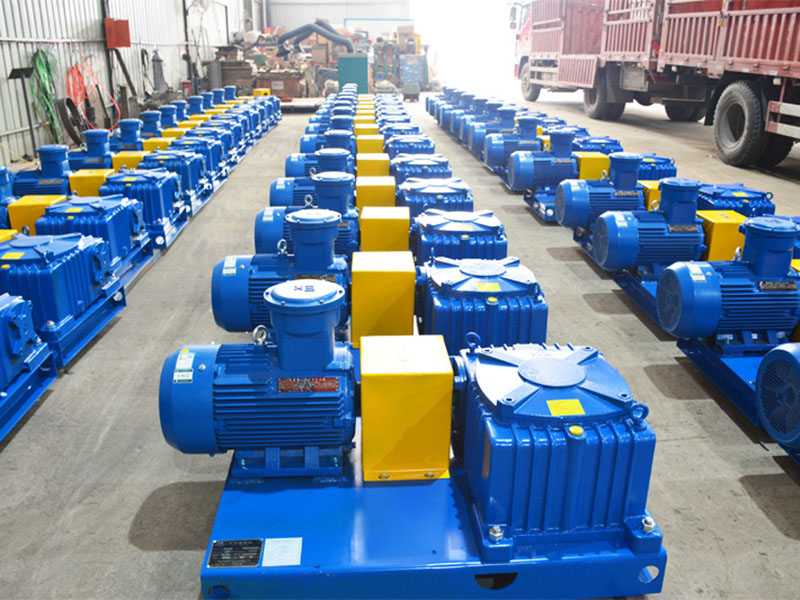

The mud agitator produced by HL Petroleum has the advantages of compact structure, small footprint, large transmission torque, stable operation and reliable operation.

1. The arc cylindrical worm reducer is adopted, the shaft section is an arc cylindrical worm, and the worm gear tooth shape is a circle that is conjugative to the worm. Therefore, the convex-concave meshing performance is reliable, the benefit is high, and the structure is compact.

2. The combination of reducer and explosion-proof motor is easy to maintain and suitable for use in harsh field conditions.

3. The stirring intensity is large, the sweeping range is wide, and the starting resistance torque is reduced.

4. The motor is placed horizontally, which is convenient for installation, adjustment and replacement.

5. Various gearbox and blade combinations can meet most requirements;

6. The mud mixer has high efficiency in deep and large containers;

7. It can be designed to generate suitable shear force according to needs;

8. Expose more fluid to the atmosphere, and the mud agitator helps to cool the drilling fluid.

Xi'an HL Petroleum specializes in the production of solids control equipment for oilfield drilling. The mud agitator has mature technology and reliable performance. It is used in major oil fields in China, and exported to abroad every year, and has won unanimous praise from customers! Welcome to send inquiry to us: sales@hlsolidscontrol.com if you want to know more about it.
