What are the working characteristics of centrifugal sand pump

Centrifugal sand pump is a special type of centrifugal pump. It is the power source of desander, desilter and slurry mixing device in drilling fluid solids control system equipment.

Since the medium of the pump is drilling fluid, and the drilling fluid is a suspension containing a large number of solid particles and various chemical additives, the impeller and volute material of the centrifugal sand pump are required to have sufficient wear resistance and corrosion resistance At the same time, the shaft end seal is required to be very reliable.

At the same time, due to the particularity of the medium and liquid, the internal seal is often damaged, which affects the life and pump efficiency. Therefore, it is required to adjust the gap between the impeller and the front guard plate more conveniently to reduce internal leakage.

In addition, a very important issue is that the flow and pressure of the centrifugal sand pump should match the hydrocyclone properly, otherwise, the hydrocyclone will not work properly.

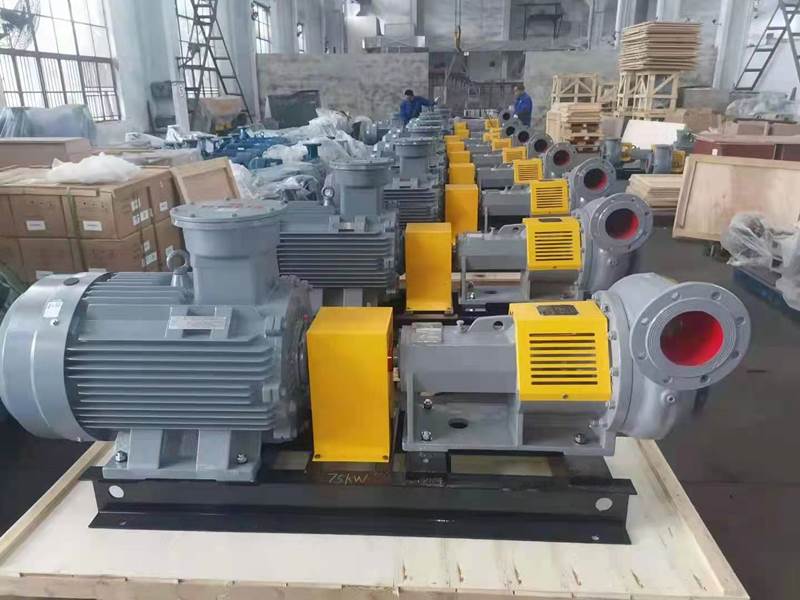

Xi'an HL Petroleum Equipment Co., Ltd. specializes in the production of SB series sand pump. There are five models of SB series sand pump: SB6×8, SB5×6, SB4×5, SB3×4 and SB2x3. Model SB6×8 can be equipped with 45kW, 55kW, 75kW motors.

According to user requirements, there are 6 specifications of forward pump and reverse pump; Model SB5x6 is equipped with 22kW, 30kW, 37kW, 45kW motors, and 4 specifications of reverse pump are commonly used.

Model SB4x5 is equipped with 15kW and 22kW motors, and two specifications of reversing pumps are commonly used. Model SB3x4 is equipped with 15kW, 11kW, 7.5kW motors, and 3 specifications of reversing pumps are commonly used. Model SB2x3 is equipped with 11kW, 7.5kW, 5.5kW motors, and 3 specifications of reversing pumps are commonly used.

The seals of the first two types of pumps are universal. All appearance and installation dimensions of the reversing pump are basically the same as those of the forward pump.

The volute discharge pipe, the forward pump is on the left side, and the reverse pump is on the right side (viewed from the suction side). Our company's SB series sand pump have been used on land and offshore drilling platforms in more than 20 countries all over the world. The results show that in addition to the normal replacement of seals, other maintenance costs are very low.
