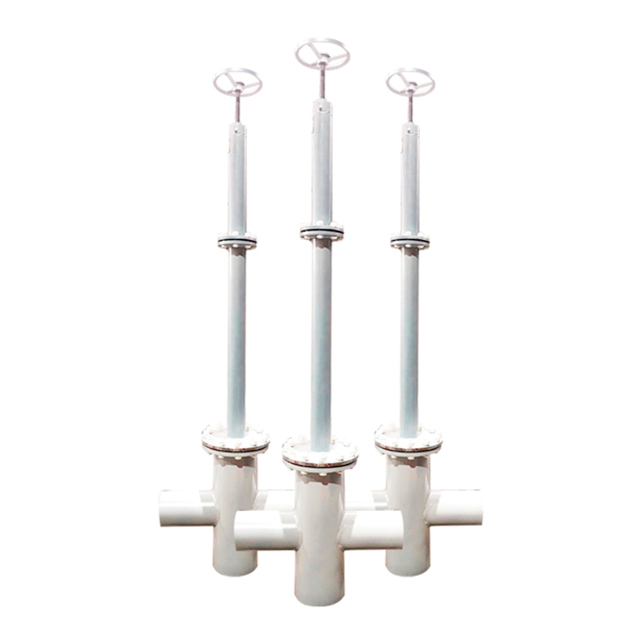

Mud Tank Bottom Valve
Product Overview:
The mud tank bottom valve is suitable for the pipeline and warehouse of the mud circulation tank with mud as the medium. It is used as a control valve for suction and discharge, and also functions as a switch for balance control between warehouses. This valve has a compact structure and a reasonable design. Collect many years of experience, switch to Vale type seal, longer service life and more stable performance.
Mud Tank Bottom Valve Details
The mud tank bottom valve is suitable for the pipeline and warehouse of the mud circulation tank with mud as the medium. It is used as a control valve for suction and discharge, and also functions as a switch for balance control between warehouses. This valve has a compact structure and a reasonable design. Collect many years of experience, switch to Vale type seal, longer service life and more stable performance
Mud Tank Bottom Valve Advantages
1. Good sealing performance, reducing leakage.
2. Composed of 50 parts.
3. Flexible steering and convenient operation.
4. Strong practicability, high cost performance, few vulnerable parts and durable
Mud Tank Bottom Valve Parameters
|
Product name |
Mud tank valve |
|
Model |
HDF |
|
Nominal pressure |
1.1MPa |
|
Dimensions (Inches) |
6, 8, 10, 12, 14, 16 |
|
Valve body part diameter (mm) |
325 |
|
External size (mm) |
219，273 ，325 |
Mud Tank Bottom Valve Structure Principle
The mud tank bottom valve includes an outer pipe, a connecting rod, a connecting pipe, and a screw. The lower end of the outer pipe is connected to the connecting pipe. The connecting rod is arranged in the outer pipe. The screw is connected to the connecting rod in the outer pipe. The connecting rod is connected to the connecting rod. The seal rubber at the inner bottom end of the outer tube is connected, and the seal rubber is sealed and fitted with the valve base. The valve base is a cone structure with a bevel on the inside. The contact surface of the seal rubber and the valve base is the same slope as the valve base, and the seal rubber passes The upper and lower two circular metal plates are fixed; the connecting part of the outer tube and the outer cylinder of the screw is above the surface of the tank. The utility model improves the sealing performance of the submarine valve itself, and the conical sealing structure reduces the axial bearing capacity of the lifting screw to the sealing rubber by about 20%, thereby prolonging the service life of the rubber, and the connection part of the outer tube and the outer cylinder of the screw It is raised above the tank surface to meet the requirements of quick maintenance.
