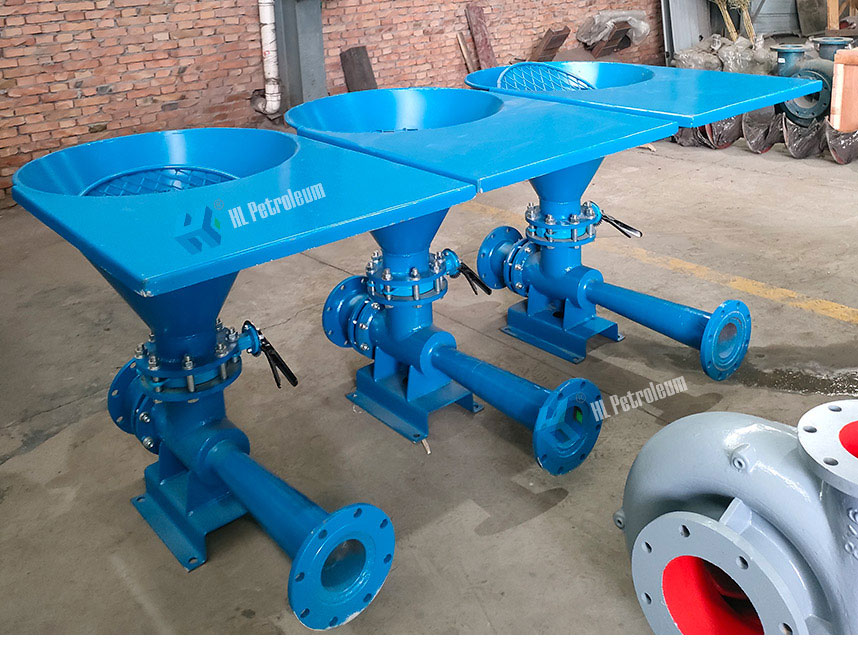

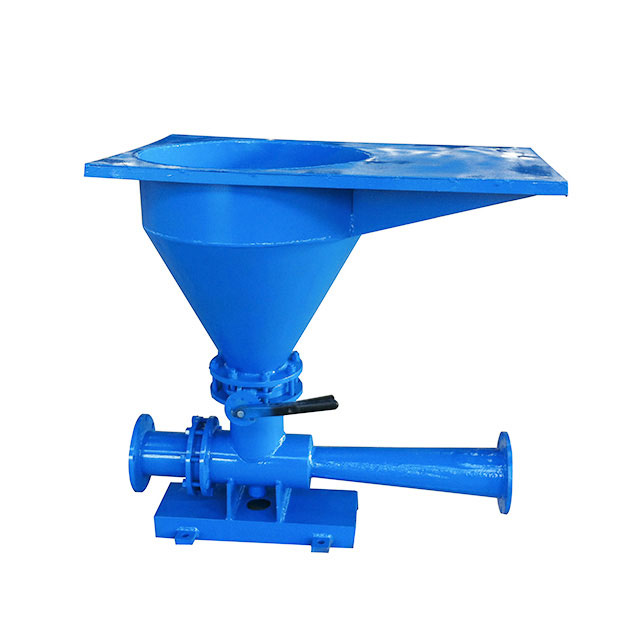

Drilling Mud Hopper
Product Overview:

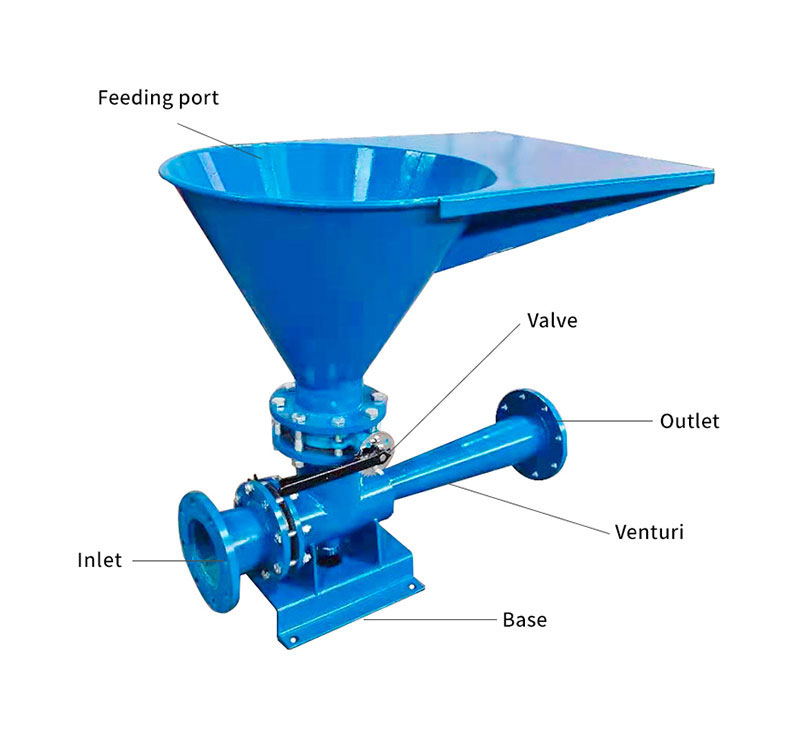

The drilling mud hopper is a new type of mixer designed by combining the Venturi tube and the original jet nozzle. It has a simple structure and strong feasibility. Its main purpose is to mix the drilling fluid and its additives quickly and evenly.
Drilling Mud Hopper Details
The drilling mud hopper is a new type of mixer designed by combining the Venturi tube and the original jet nozzle. It has a simple structure and strong feasibility. Its main purpose is to mix the drilling fluid and its additives quickly and evenly.
HLD150 Mud Hopper Parameters
a. Inlet drainage: 180m3/h
b. Inlet head : ＞31m
c. Diameter of hopper: 708mm
d. Diameter of inlet: 125mm
e. Diameter of outlet: 125mm
f. Jet speed: 45m/s
g. Motor power: 55KW
h. Amalgamate speed: To barite unless 300Kg/min To bentonite unless 150Kg/min
i. Sketch dimensions: 1518×708×989
Drilling Fluid Hopper Features
☆ Simple structure and strong feasibility
☆ Safe and reliable performance, easy to transport
☆ Fast mixing speed, uniform mixing, low energy consumption
