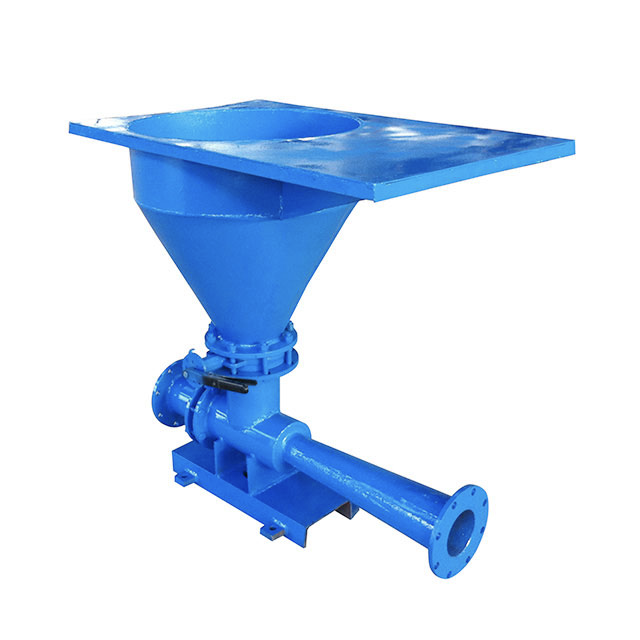

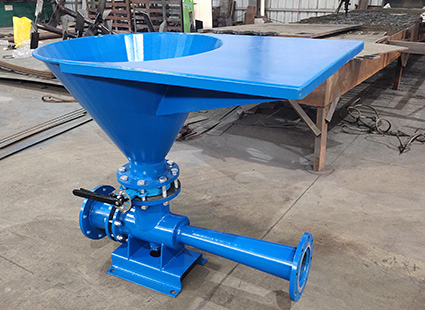

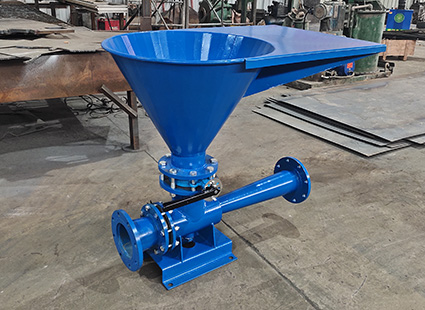

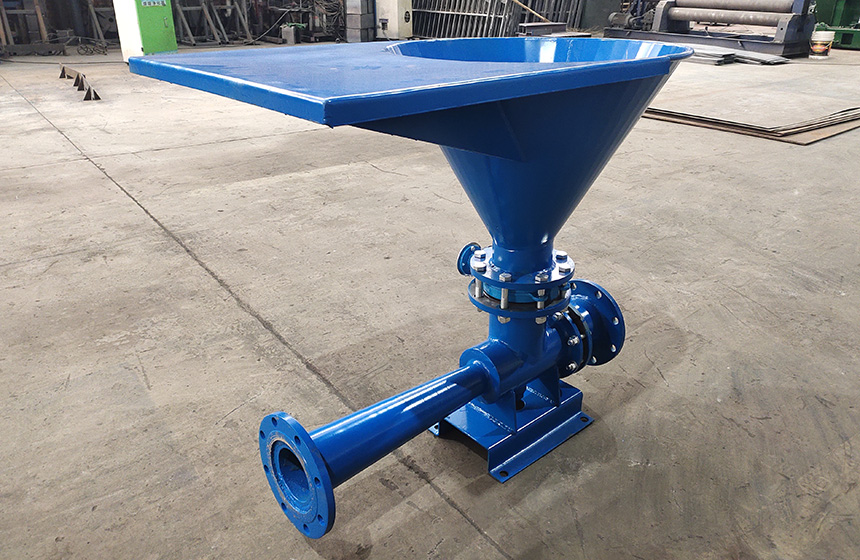

Jet Mud Hopper

Jet mud hopper is a device used to prepare or increase the total amount of drilling fluid, and change the properties of drilling fluid such as density, viscosity, and water loss. It plays the role of mixing drilling fluid materials (such as bentonite, barite powder, etc.) and corresponding chemical additives (such as polymers, etc.) and putting them into the circulation tank.
If the drilling fluid materials and chemical additives are directly put into the circulation tank, they will cause a large amount of precipitation or agglomeration, and it is impossible to obtain a fully dispersed and uniform drilling fluid. By using the jet mud funnel, these materials and additives can be effectively mixed together so that they are fully dispersed and evenly dispersed in the drilling fluid.
The use of jet mud hopper can ensure the stability and reliability of drilling fluid during drilling, thereby improving drilling efficiency and ensuring the safety of drilling operations.

HL Mud Hopper Parameters

Model	HLD150	HLD150-Y	HD150-X
Capacity(m³/h)	180	240	150
Inlet pressure(MPa)	0.32-0.42	0.32-0.42	0.38-0.42
Hopper dia(mm)	700	700	700
Inlet dia(mm)	125/150	150	125
Outlet dia(mm)	150	150	150
Weight (kg)	145	180	200

Node:
HLD150: Jet mud hopper
HLD150-Y: Movable mud hopper
HLD150-X: Swirling mud hopper



Jet Mud Hopper Features
1. Simple structure: Jet mud hopper is easy to install, operate and maintain.
2. High feasibility: It is feasible to adapt to different scenarios
3. Safe and reliable performance: It has been verified in practice to ensure safety and reliability during use.
4. Easy to move: Made of light materials, it is very convenient to move and arrange.
5. Rapid mixing: Improve the efficiency of drilling fluid preparation, saving time and labor costs.
6. Uniform mixing: the mixing effect is uniform, ensuring that various components in the drilling fluid can be fully dispersed and evenly distributed.
7. Low energy consumption: the jet mud hopper works efficiently with low energy consumption.

Jet mud hopper can meet the aggravation and configuration requirements of drilling fluid for 1500m to 6000m drilling solids control system. The mud hopper is connected by a jet mixer and manifold valves and mounted on a base. Safe and reliable performance, easy to move.
