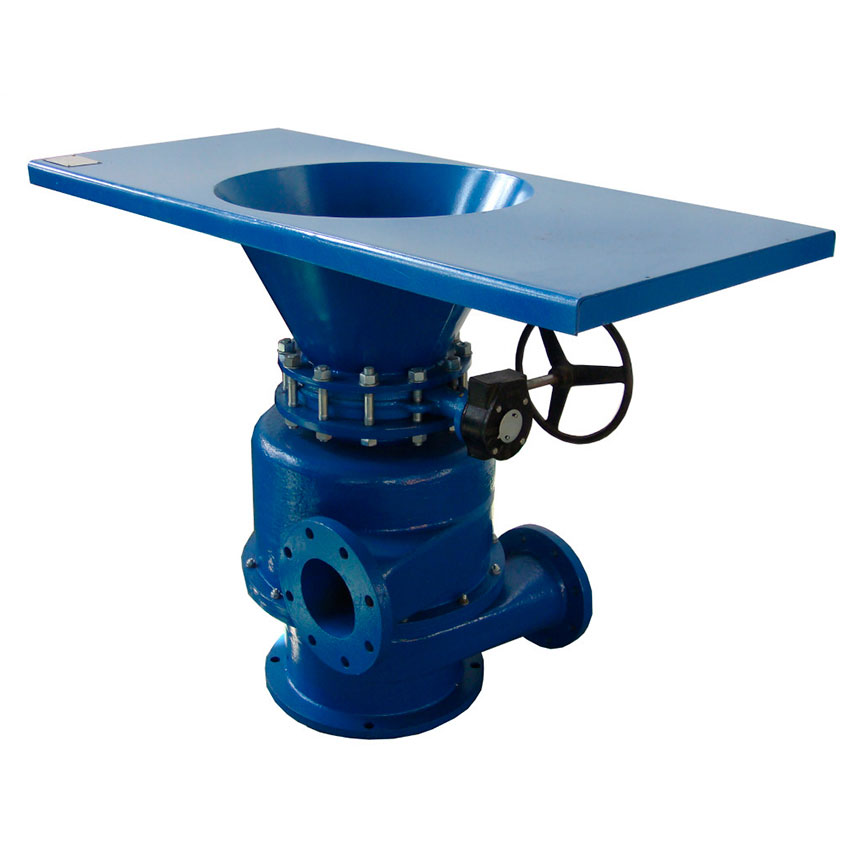

Swirling Mud Hopper
Product Overview:
The swirling mud hopper has no nozzle and is composed of a volute, a hopper, a butterfly valve and a mixing cylinder.
Fast mixing speed, uniform mixing, low energy consumption
No nozzle, can mix plugging material
Swirling Mud Hopper Details
The swirling mud hopper is composed of a volute, a hopper, a butterfly valve and a mixing cylinder.
The working principle of Swirling mud hopper
The swirling mud funnel requires a centrifugal pump to pump the mixed liquid swirl into the volute of the funnel. The high-speed rotating liquid flow mixes and then enters the liquid cylinder. The high-speed rotating flow is further mixed with the liquid, and then enters the outer cavity, and then discharged along the tangential direction , to complete a cycle of mixing process.
Since the swirl mud hopper has no nozzle, it can be used to mix plugging materials.
Swirl mud funnel model:
Xi'an HL Petroleum Equipment Co., Ltd. mainly produces HLD150-X swirl hopper
HLD150-X mud hopper technical features
| Model | HLD150-X |
| Capacity (m3/h) | 150 |
| Working pressure (Mpa) | 0.38-0.42 |
| Hopper diameter (mm) | 700 |
| Inlet diameter (mm) | 125 |
| Outlet diameter (mm) | 150 |
