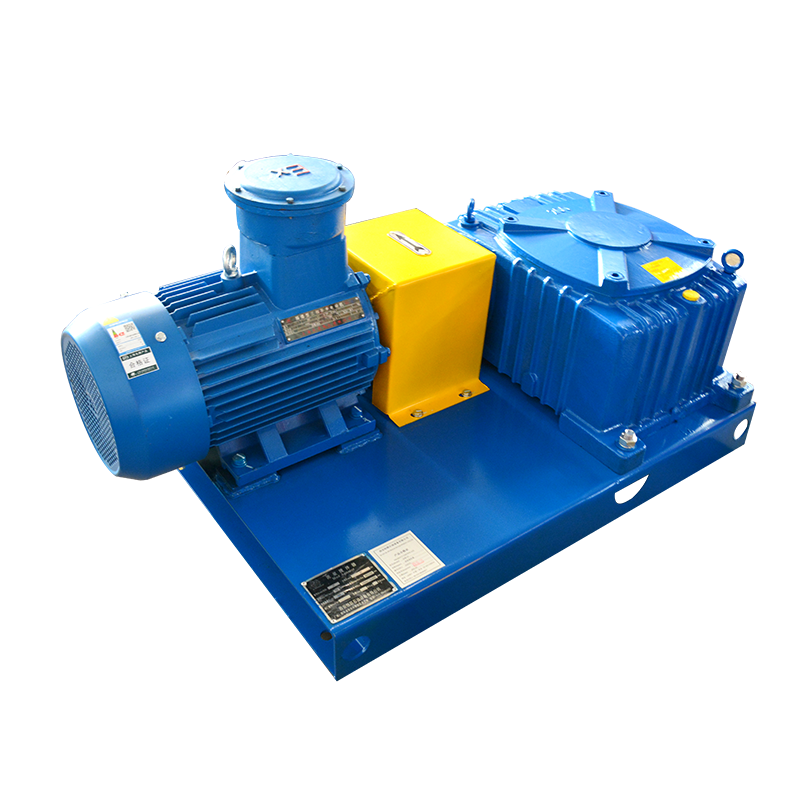

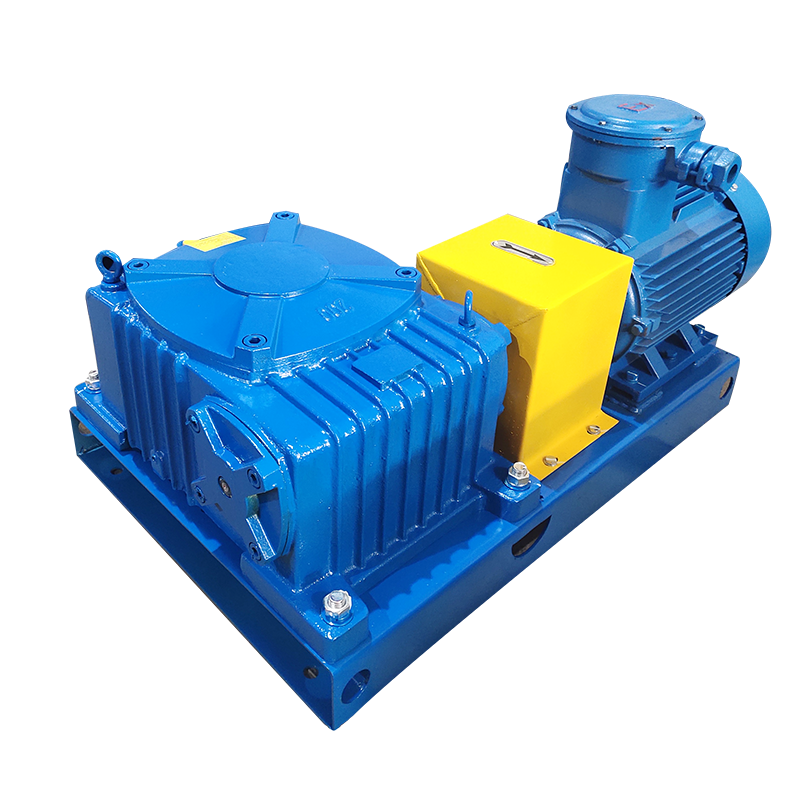

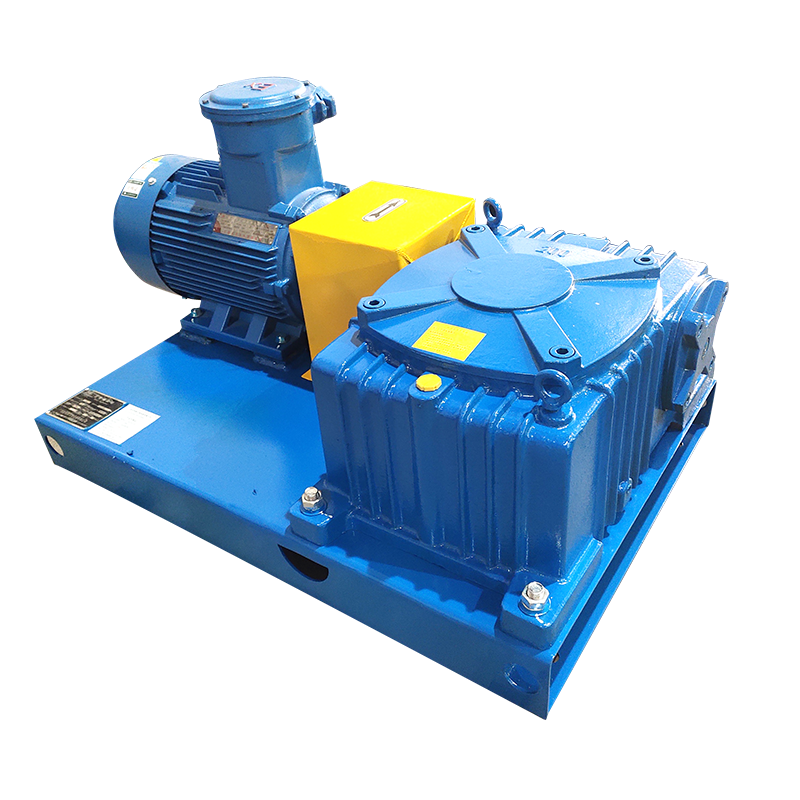

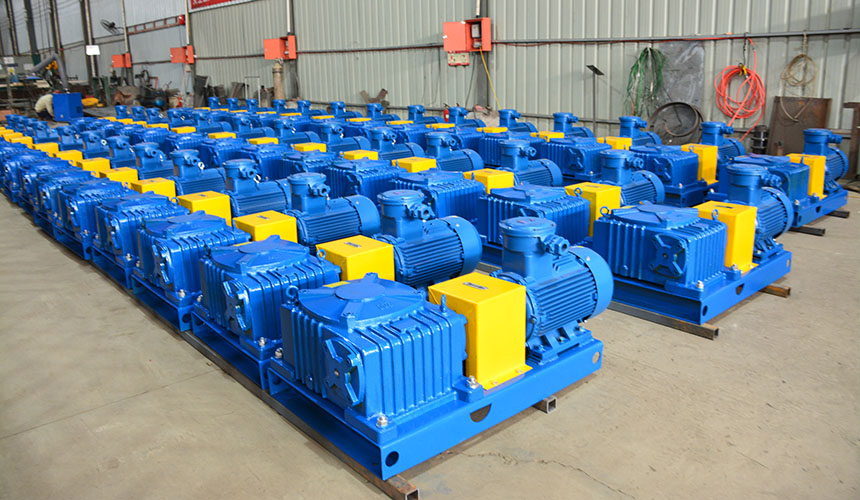

Turbo Worm Mud Agitator

Turbo worm mud agitator is a very important equipment in the drilling fluid tank solids control system, mainly used for stirring and mixing the drilling fluid to prevent the solid phase particles in the drilling fluid from settling during the circulation process, so as to ensure that the drilling fluid remains uniform and stable state.

Turbo Worm Mud Agitator Parameters

Model		HJB/W5.5	HJB/W7.5	HJB/W11	HJB/W15	HJB/W18.5	HJB/W22
Motor Model		YB3-132S-4	YB3-132M-4	YB3-160M-4	YB3-160L-4	YB3-180M-4	YB3-180L-4
Motor Power(kW)		5.5	7.5	11	15	18.5	22
Motor rated speed(r/min)		1440～1780	1440～1780	1460～1780	1460～1780	1470～1780	1470～1780
Voltage(V)		380/460	380/460	380/460	380/460	380/460	380/460
Power Frequency(Hz)		50/60	50/60	50/60	50/60	50/60	50/60

Turbo Worm Mud Agitator Installation Dimensions

Model	M	A	B	C	D	E	F	G	H	d	Weight(kg)
HJB/W5.5	954	762	549	583	800	622	435	70	245	17	295
HJB/W7.5	1101	910	664	623	860	750	530	80	285	17	400
HJB/W11	1222	991	664	665	940	831	540	80	295	17	462
HJB/W15	1334	1095	734	685	1040	935	590	80	315	17	563
HJB/W18.5	1445	1210	888	770	1140	1050	700	80	385	17	785
HJB/W22	1465	1248	888	770	1240	1088	700	80	385	17	815

Note:
1. The length dimension "L" of the impeller shaft is determined according to the depth h of the mud tank.
2. The depth "h" of the mud tank is proposed by the user when ordering.
3. The values in the "Weight" column do not include the weight of the centralizing sleeve, stirring shaft and impeller.

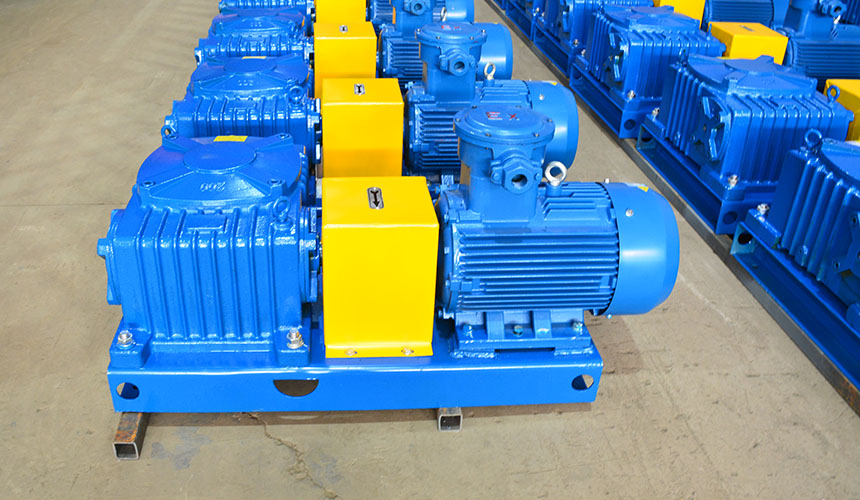

Turbo Worm Mud Agitator Features
1. The turbo worm mud agitator agitator adopts a high-efficiency worm/worm gear reducer, which has a compact structure and excellent meshing performance, so it works very reliably.
2. Turbo worm mud agitator adopts the combination of explosion-proof motor and worm/worm gear reducer, which makes it suitable for the working environment under harsh conditions in the field.
3. The explosion-proof motor is directly connected to the input shaft of the reducer through an elastic coupling instead of a belt drive, which ensures that the rotation speed of the stirring wave wheel is always constant.
4. The design of the Turbo worm mud agitator enables it to have greater stirring intensity and a wide range of impact, and at the same time, the structural design avoids the phenomenon of current overload of the motor when it starts.
5. The explosion-proof motor is placed horizontally, which makes the installation, adjustment or replacement of Turbo worm mud agitator very convenient.

Xi'an HL Petroleum Equipment Co., Ltd. is committed to providing customers with customized mud mixer services. We can customize various types of mud mixers according to your specific needs to meet your specific requirements in drilling operations. With an experienced engineer team and advanced production equipment, we can customize high-quality and efficient mud mixers for customers. No matter what type of mud mixer you need, we will strive to provide you with the best solution. Welcome to consult, we look forward to cooperating with you.
