Vacuum Degasser
Product Overview:
Vacuum degasser, also known as negative pressure degasser and drilling fluid degasser, is one of the solid control equipment produced by Xi'an HL Petroleum Equipment Co., Ltd.
1.High degassing efficiency
2.Belt drive to protect the motor
3.Low power, energy saving and environmental protection
4.Can be used as a agitator, one machine for two purposes
Vacuum Degasser Details
Vacuum degasser, also known as negative pressure degasser and drilling fluid degasser, is one of the solid control equipment produced by Xi'an HL Petroleum Equipment Co., Ltd.
Xi'an HL Vacuum Degasser is a special degassing equipment for processing gas-immersed drilling fluids. The degassing efficiency is as high as 95%. It is suitable for supporting various oil drilling solids control systems, also useful for restoring the specific gravity of the mud and stabilizing the viscosity of the mud. Performance and reducing drilling costs play an important role. At the same time, it can also be used as a high-power agitator.
Vacuum Degasser Features
1. High degassing efficiency
2. Belt drive to protect the motor
3. Low power, energy saving and environmental protection
4. Can be used as a agitator, one machine for two purposes
Vacuum Degasser Parameters
|
Model |
HCQ240 |
HCQ270 |
HCQ300 |
HCQ360 |
|
Capacity（m3/h） |
240 |
270 |
300 |
360 |
|
Vacuum(MPa) |
-0.030—0.045 |
-0.030—0.050 |
-0.030—0.055 |
-0.040—0.065 |
|
Vacuum Pump Power(kW) |
2.2 |
3 |
4 |
7.5 |
|
Speed(rpm) |
860 |
870 |
876 |
880 |
|
Applicable mud proportion (g/cm3) |
≤2g/cm3 |
≤2g/cm3 |
≤2.5g/cm3 |
≤2.5g/cm3 |
|
Main Motro Power（kW） |
15 |
22 |
30 |
37 |
|
Degassing efficiency (%) |
≥95 |
≥95 |
≥95 |
≥95 |
|
Displacement |
28 |
48 |
90 |
180 |
|
Dimensions（mm） |
1750×860×1500 |
2000×1000×1760 |
2250×1330×1650 |
2400×1500×1850 |
|
Weight(kg) |
1100 |
1350 |
1650 |
1800 |
Vacuum Degasser Model Directions

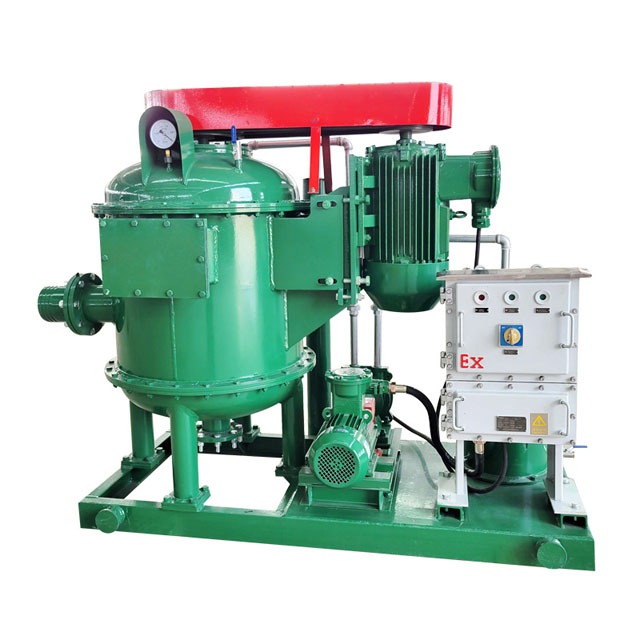

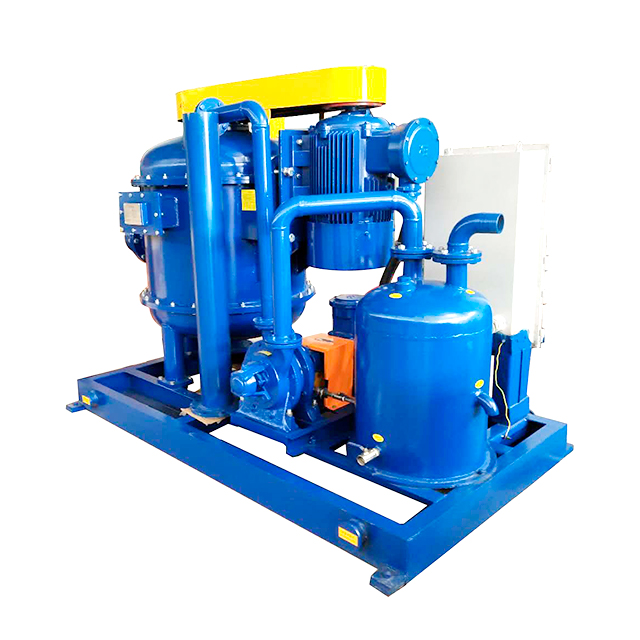

Vacuum Degasser Pictures
Vacuum Degasser Using Site
FAQ
Q: How can I make order online?
A: Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order.
Q: Do you have MOQ limit?
A: The MOQ is 1 set.
Q: How about the delivery time?
A: Delivery time is normally 7-10 working days after confirm the money. Depends on your quantity.
Q: What's your warranties?
A: 1 year after delivery
Q: Can I buy parts separately?
A: Yes, all of the degasser spare parts can buy separately.
