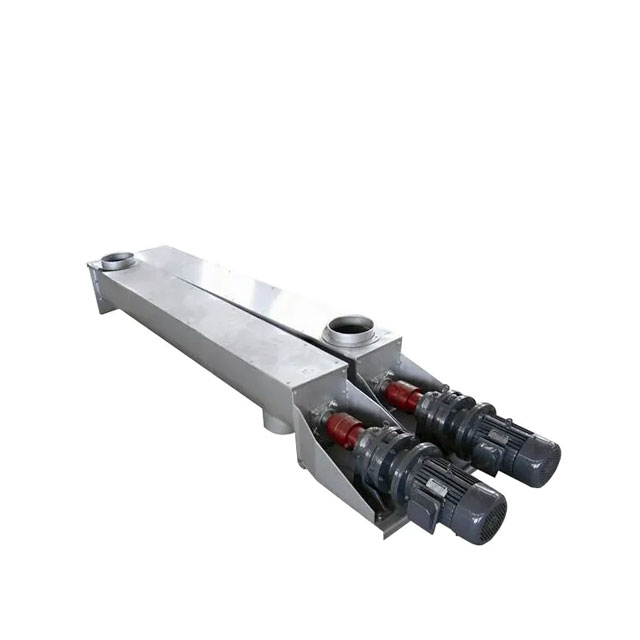

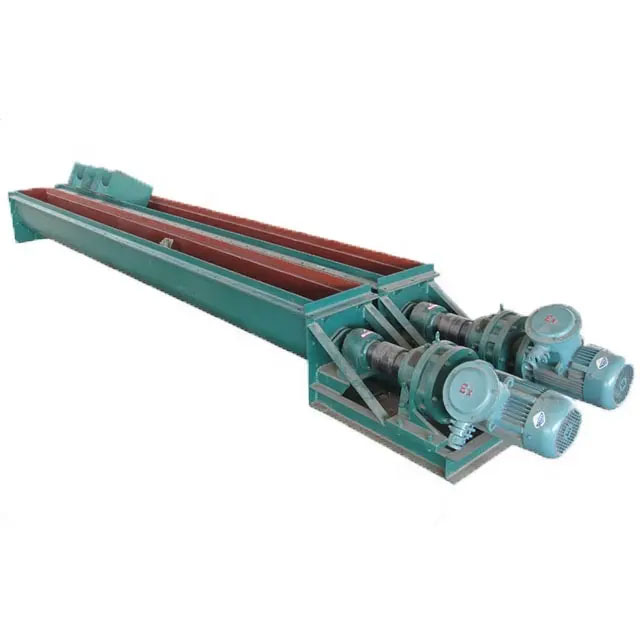

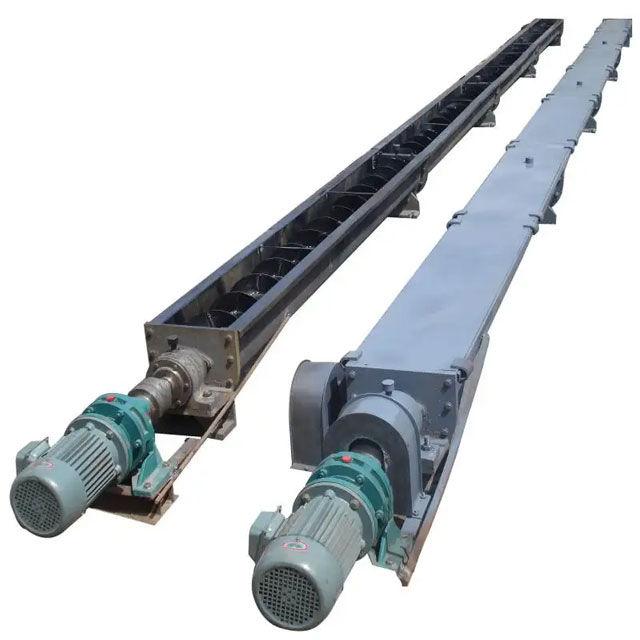

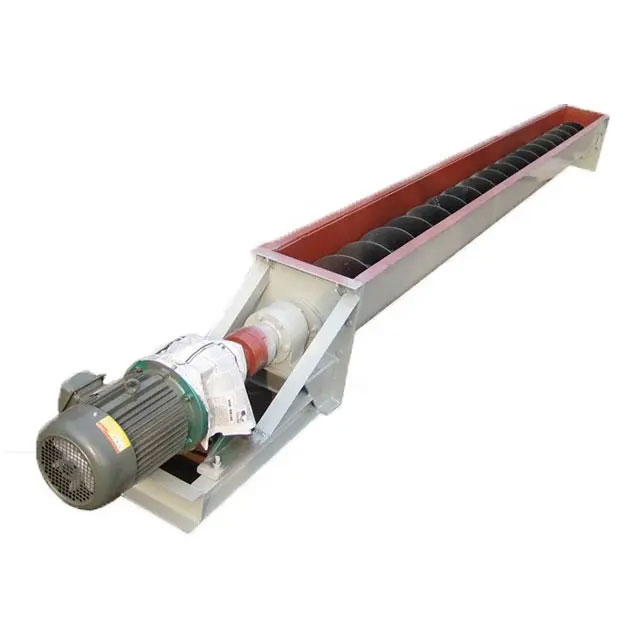

Screw Conveyor
Product Overview:
Screw conveyors are often used to transport drill cuttings and accompanying fluids, collect drill cuttings (usually relatively dry oil-based drill cuttings) from various solids control equipment, and transport them to the area where the loading drill cuttings box is installed.
Screw Conveyor Details
Screw conveyors are often used to transport drill cuttings and accompanying fluids, collect drill cuttings (usually relatively dry oil-based drill cuttings) from various solids control equipment, and transport them to the area where the loading drill cuttings box is installed.
Screw Conveyors Parameters
|
Model |
Diameter (mm) |
Length (m) |
Nominal main shaft speed (r/min) |
Conveying Capacity (m3/h) |
Motor Power (KW) |
|
LS 250 |
250 |
6, 9, 12, 15 |
88 |
10 |
3, 4, 5.5, 7.5 |
|
65 |
7.5 |
2.2, 3, 4, 5.5 |
|||
|
52 |
6 |
2.2, 3, 4, 5.5 |
|||
|
LS 315 |
315 |
6, 9, 12, 15 |
65 |
15 |
5.5, 7.5, 11 |
|
52 |
12 |
3, 5.5, 7.5 |
|||
|
43 |
10 |
3, 5.5, 7.5 |
|||
|
LS 400 |
400 |
7.2, 10.8, 14.4 |
65 |
27.5 |
7.5, 11, 15 |
|
52 |
22 |
7.5, 11, 15 |
|||
|
43 |
18 |
5.5, 7.5, 11 |
