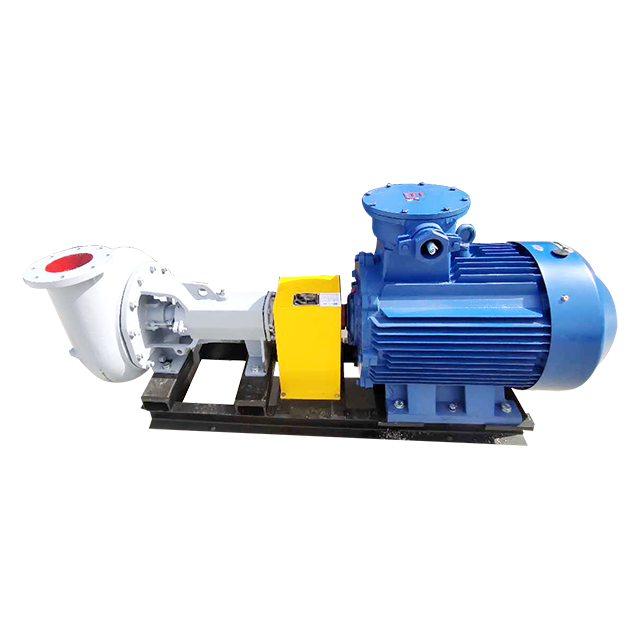

Horizontal Centrifugal Pump

Xi'an HL horizontal centrifugal pump adopts centrifugal design, and the axial clearance between the impeller and the pump body is the same. These pumps are suitable for pumping streamlined liquids and can work even when the liquid is not flowing. The pump body is designed as an annular flow channel, which can effectively eliminate eddy current and cavitation, and reduce the radial load of the bearing. The inlet pipe diameter of the pump is reasonable, so a lower suction pressure is required. In addition, the seal of the pump body adopts a groove structure to prevent liquid from escaping from the impeller.
When compared with ordinary pumps, Xi'an HL horizontal centrifugal pumps are heavier and stronger in terms of pump body design, so they are more durable. Its special strength makes the wall thickness of the pump body relatively large, thus prolonging the service life of the pump.

Horizontal sand pump is a powerful and widely applicable solid control equipment, which has the advantages of high flow delivery capacity, wear resistance and corrosion resistance, and long life, so it is widely used in many industries.
HL Centrifugal Pump Parameters

Model	Capacity(m3/h)	Head(m)	Efficiency (%)	NPSH (m)	Power (kW)
					Shaft power	Motor power
SB8×6-14	320	40	65	4.0	53.63	75
SB8×6-13	290	33	64	4.5	40.7	55
SB8×6-12	270	28	64	4.5	32	45
SB8×6-14I	200	40	62	3.2	35.1	55
SB8×6-13I	180	34	60	3.0	27.8	45
SB8×6-12I	160	30	60	3.0	22	30
SB6×5-14	200	40	62	3.2	35.1	55
SB6×5-13	180	34	60	3.0	27.8	45
SB6×5-12	160	30	60	3.0	22	37
SB6×5-11	200	21	62	2.5	18.5	30
SB6×5-9	160	12	58	3.0	9.02	15

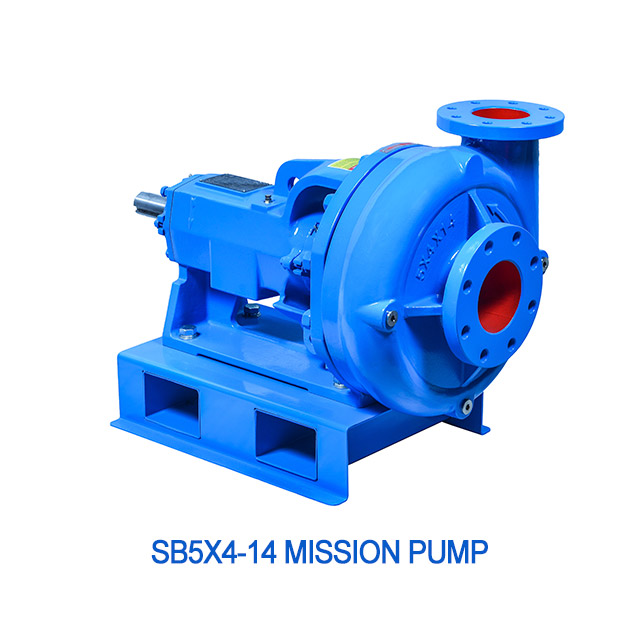

SB5×4-14	120	45	56	4.6	23.3	37
SB5×4-13	90	40	56	4.5	17.5	30
SB5×4-12	90	30	56	4.5	13.1	22
SB5×4-11	90	24	56	4.5	10.5	18.5
SB5×4-10	85	20	56	4.2	8.4	15
SB5×4-9	80	19.5	54	4.5	7.9	15
SB4×3-13	50	40	48	4.5	11.3	18.5
SB4×3-12	45	30	47	4	7.8	15
SB4×3-11	45	24	46	4	6.4	11
SB3×2-13	25	35	40	3	5.9	11
SB3×2-12	23	29	39	3	5.1	7.5
SB3×2-11	20	23	39	3	3.2	5.5

Horizontal Centrifugal Pump Features
1. Super large flow delivery capacity: the pump has high-efficiency delivery capacity and can handle large flow of liquid and solid particles.
2. Wear-resistant and corrosion-resistant materials of the flow-passing parts: The flow-passing parts of the pump are made of special wear-resistant and corrosion-resistant materials, which can maintain high wear resistance and corrosion resistance in long-term use and prolong the service life of the pump.
3. Mechanical seal, the service life is extended by 6 times: the pump adopts mechanical seal technology, which can extend the service life by 6 times compared with the traditional sealing method, which reduces the maintenance and replacement costs of the pump.
4. Both metric and imperial interfaces: the pump provides metric and imperial interfaces to meet the needs and usage habits of different domestic and foreign users.
5. 6 series, 24 specifications, suitable for different industries: the pump has multiple series and specifications to choose from, suitable for the needs of different industries and working environments.
