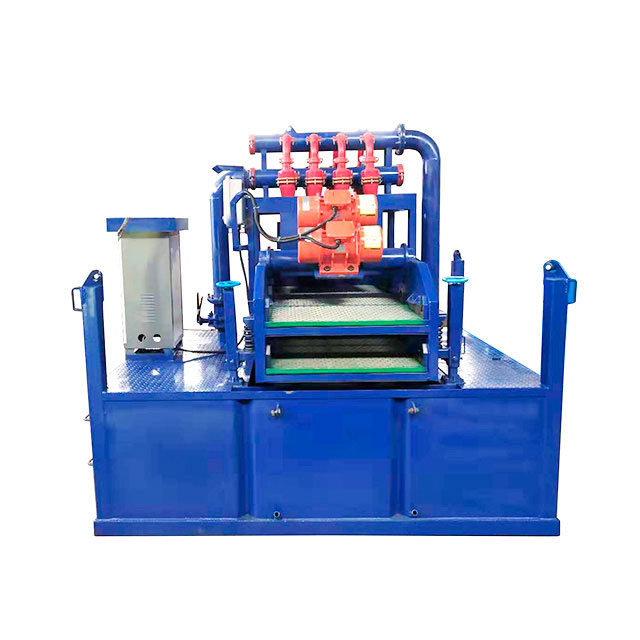

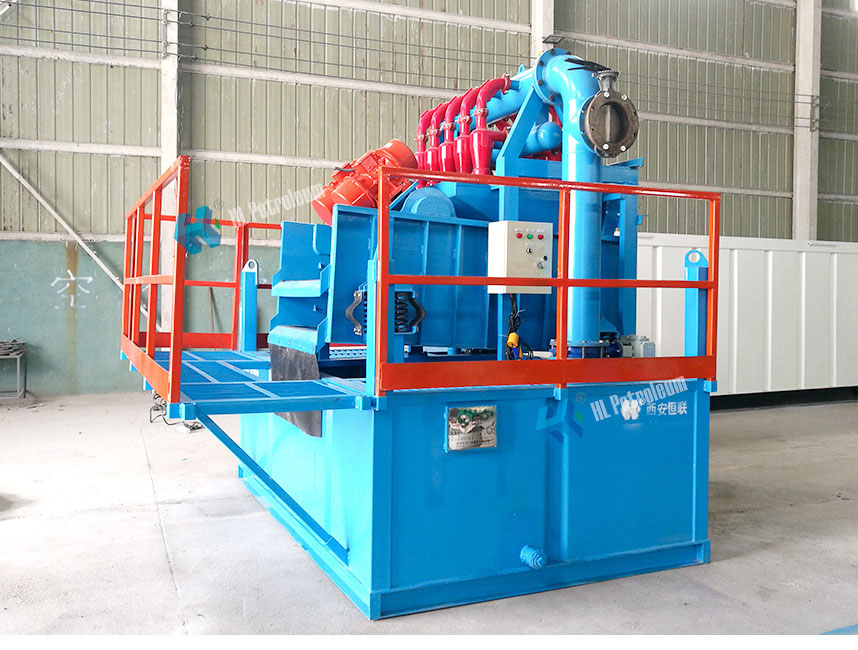

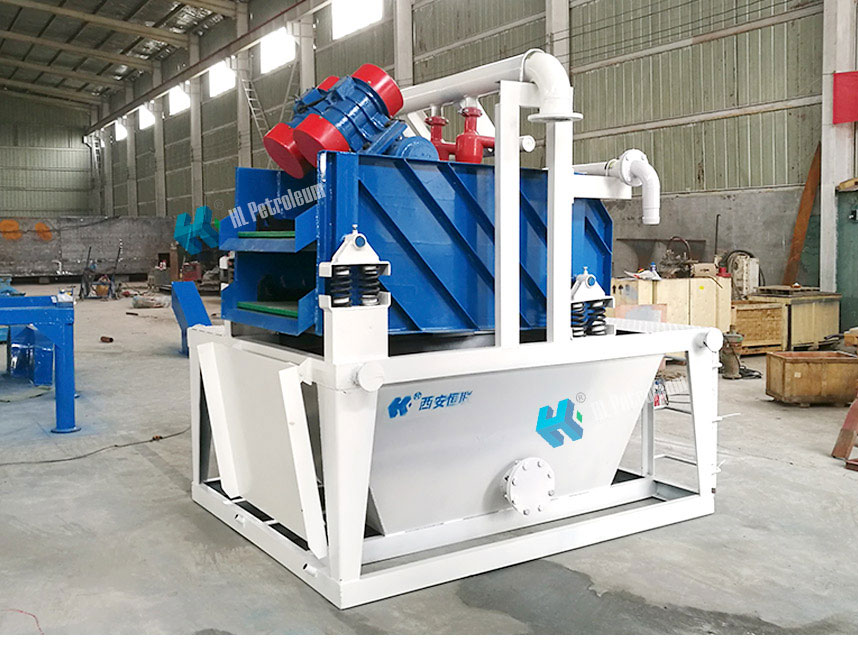

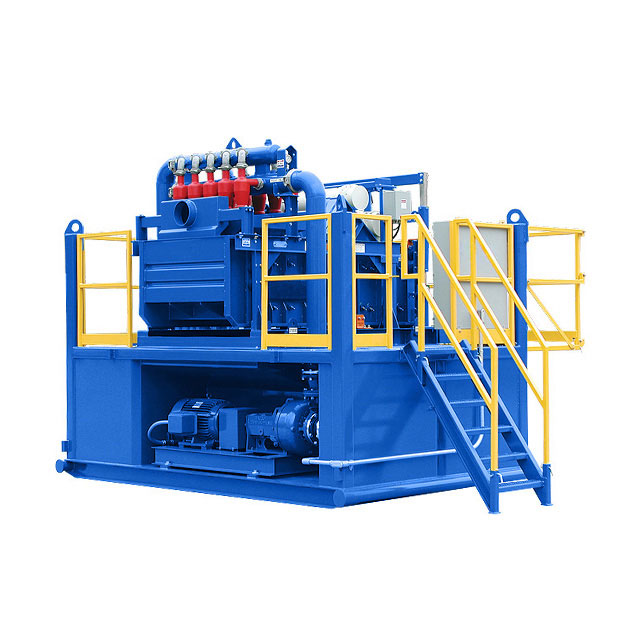

Mud Purification and Recovery Device
Product Overview:
The mud purification and recovery device is a kind of mud purification treatment equipment developed for the wall mud used in construction projects, bridge pile foundation projects, underground tunnel shield projects, sand fields and non-excavation projects.
Mud Purification and Recovery Device Details
The mud purification and recovery device is a kind of mud purification treatment equipment developed for the wall mud used in construction projects, bridge pile foundation projects, underground tunnel shield projects, sand fields and non-excavation projects. It can effectively control the slurry water quality of the construction mud, separate the solid phase particles in the mud from solid to liquid, improve the porosity of pile foundation, reduce the amount of bentonite and reduce the cost of slurry making. It can realize the environmental protection transportation and slurry water discharge of mud waste, and meet the site requirements of environmental protection construction.
Advantages of mud purification and recovery device
1. The mud purification and recovery device adopts hydraulic pressure, electric control, high automation program, simple operation, mature, general workers can operate and use, low failure rate, and convenient maintenance.
2. The click power of the device is low, generally 2-7 kw, with low energy consumption and low cost for users.
3. Using this equipment to treat sludge, dosing or a small amount of dosing can greatly save the cost. (Large sites can build more sedimentation tanks to fully settle)
4. The sludge recovery rate reaches 98%, which meets environmental protection standards. After treatment, the water content is 10-20% lower than that of general dehydration equipment, which saves subsequent shipping costs. It can be directly loaded and shipped out.
5. The processing efficiency is high, the higher the mud concentration, the shorter the time for single-machine mud discharge, which is as fast as 15-30 minutes.
Mud purification and recovery device technical parameters
| No | Name | Model and Specifications | Remark |
| 1 | Submersible slurry pump | 15kw | Pump casing and impeller all alloy |
| 2 | Triple deck mud shale shaker |
Upper screen:1900x900 | Frame woven screen |
| Middle screen:1900x900 | Frame woven screen | ||
| Lower screen:1900x900 | Frame woven screen | ||
| 3 | Electronic control system |
Customize | Overload, undervoltage, high voltage, phase loss protection functions |
| 4 | Cyclones | 4 inches, polyurethane material | 12 pieces |
| 5 | Vibrating motor | 1.3kw+1.8kw | 2 sets |
| 6 | Vibrating motion | Balanced elliptical motion shale shaker | T1900-3 |
| 7 | Capacity | ≤120m³/h | The specific gravity of mud is: 1.2g/cm3, when the viscosity is 45s |
| 8 | Separation size | ≥0.03mm | Desilter grade |
| 9 | Motor power | 18kw | |
| 10 | Weight | 2826kg | |
| 11 | Dimension | 3350X1790X2500mm |
