Oil Rig Solids Control System
Product Overview:
• Large storage capacity, large processing capacity, improve drilling efficiency
• Four-stage separation of solid particles to meet the requirements of different well depths for drilling fluids
• Purification, circulation, configuration, and aggravation multifunctional system
• Five levels of purification, full process control, full explosion-proof circuit
• Sandblasting and rust removal, spraying marine special paint, thorough corrosion protection, durable
Oil Rig Solids Control System Details
The HGK series solids control system is mainly composed of a five-stage purification device of a mud shale shaker, a vacuum degasser, a mud cleaner and a centrifuge, as well as a mud tank, a cooling water tank, and a supply tank. Equipped with overhead pipeline (from wellhead to mud shaker), mud pump suction pipeline, weight pump suction and discharge pipeline, clean water pipeline, medium pressure mud gun pipeline, tank bottom connecting pipeline, etc. exchange.
HGK solids control system is also equipped with auxiliary equipment such as drilling fluid replenishment system, weighting funnel, weighting pump, degreasing liquid supply pump, desilting liquid supply pump, replenishing pump, agitator and so on. In addition, it is also equipped with walkways, ladders, railings and other safety protection devices.
This set of solids control system can ensure the smooth progress of mud purification, circulation, preparation, weighting and storage. It also has the solid phase control ability of the mud purification system and can meet the requirements of 1000-7000m drilling technology.
Recommended solids control systems for commonly used oil drilling rigs
5000 meters solids control system supporting
|
Number |
Select |
Equipment |
Parameters |
Quantity |
|
1 |
Must match |
Mud tank |
The volume is not less than 200 m3 The storage tank volume is not less than 120 m3 |
1set |
|
2 |
Mud shale shaker |
Processing capacity is not less than 181.5m3/h |
2sets |
|
| 3 | Degasser | Processing capacity is not less than 181.5 m3/h | 1set | |
|
4 |
Desander |
Processing capacity is not less than 181.5 m3/h |
1set |
|
|
5 |
Desilter |
Processing capacity is not less than 181.5 m3/h |
1set |
|
| 6 | Medium speed centrifuge | Capacity: 40m3 Separated particles:5μm～7μm | 1set | |
|
7 |
Jet mud mixer |
Sand pump capacity：200m3/h；Sand pump lift：36 m |
1set |
|
|
8 |
Shear pump |
Capacity：155 m3/h Lift：32 m |
1set |
|
|
9 |
Feeding pump |
Capacity：150 m3/h Lift：28 m |
1set |
|
|
10 |
Optional |
High speed centrifuge |
Capacity: 40m3/h Separated particles：3μm～5μm |
1set |
7000 meters solids control system supporting
|
Number |
Select |
Equipment |
Parameters |
Quantity |
|
1 |
Must match |
Mud tank |
The volume is not less than 200 m3 The storage tank volume is not less than 120 m3 |
1set |
|
2 |
Mud shale shaker |
Processing capacity is not less than 181.5m3/h |
2sets |
|
| 3 | Degasser | Processing capacity is not less than 181.5 m3/h | 1set | |
|
4 |
Desander |
Processing capacity is not less than 181.5 m3/h |
1set |
|
|
5 |
Desilter |
Processing capacity is not less than 181.5 m3/h |
1set |
|
| 6 | Medium speed centrifuge | Capacity: 40m3 Separated particles:5μm～7μm | 1set | |
| 7 | High speed centrifuge | Capacity: 40m3 Separated particles:3μm～5μm | 1set | |
|
8 |
Jet mud mixer |
Sand pump capacity：200m3/h；Sand pump lift：36 m |
1set |
|
|
9 |
Shear pump |
Capacity：155 m3/h Lift：32 m |
1set |
|
|
10 |
Feeding pump |
Capacity：150 m3/h Lift：28 m |
1set |
Note: The above content is for reference only, and the actual number of packages depends on site conditions.
1.Drilling rigs below 2000m should be equipped with drilling fluid tanks, vibrating screens and mixed weighting devices.
2. Above 2000m (including 2000m) should be equipped with drilling fluid tank, vibrating screen, de- sander, desilter and mixed weighting device.
3. According to the requirements of drilling technology and drilling fluid system, it can be equipped with deaerator, centrifuge, etc.
4. Drilling rigs engaged in exploration wells, gas wells and oil wells with a gas-to-oil ratio of more than 300 should be equipped with degassers, centrifuges and shear pumps.
5. Special operations (H2S-containing drilling, underbalanced drilling) are equipped according to actual drilling process requirements
6. Each mud tank should be equipped with corresponding mud agitator, mud gun and lighting system according to the drilling process requirements.

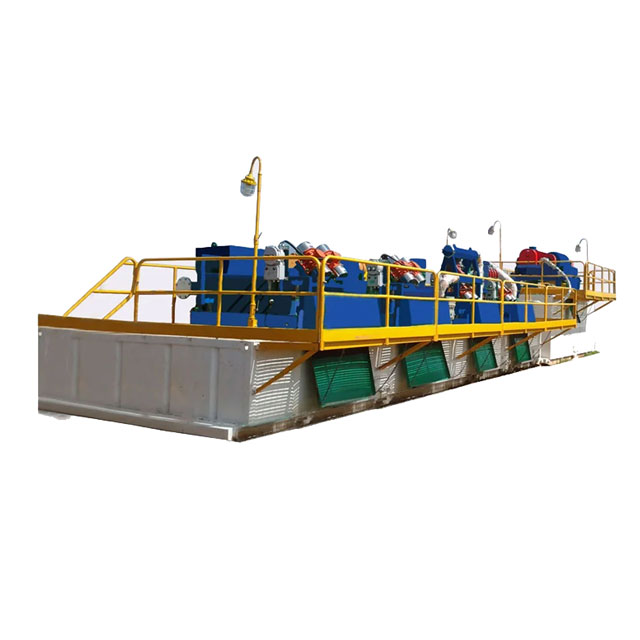

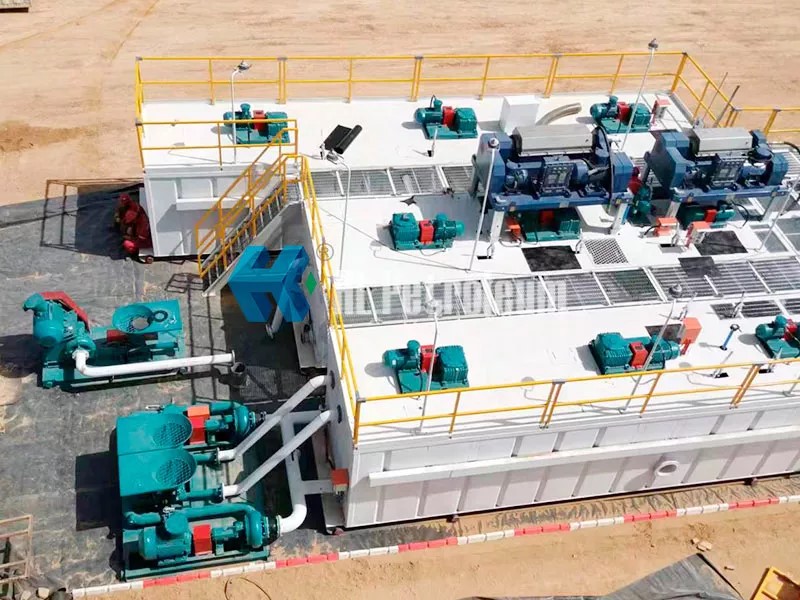

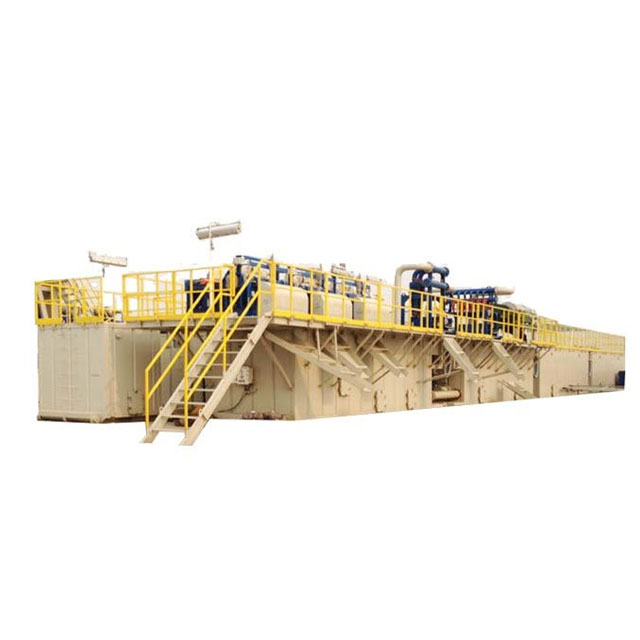

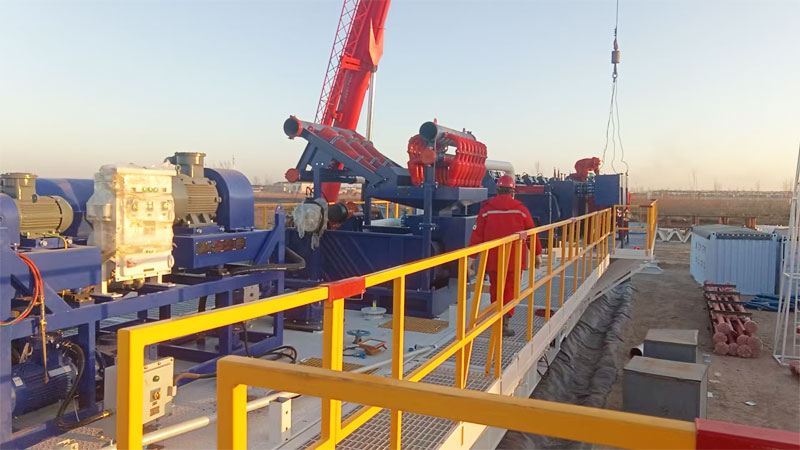

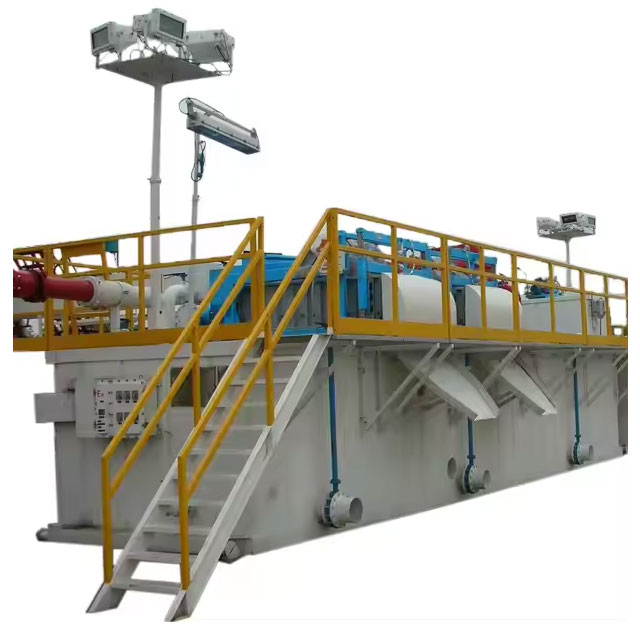

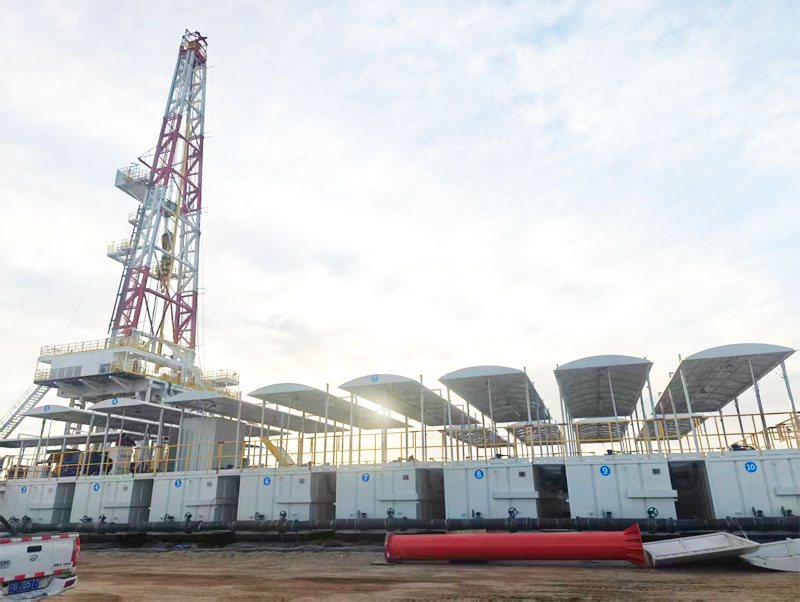

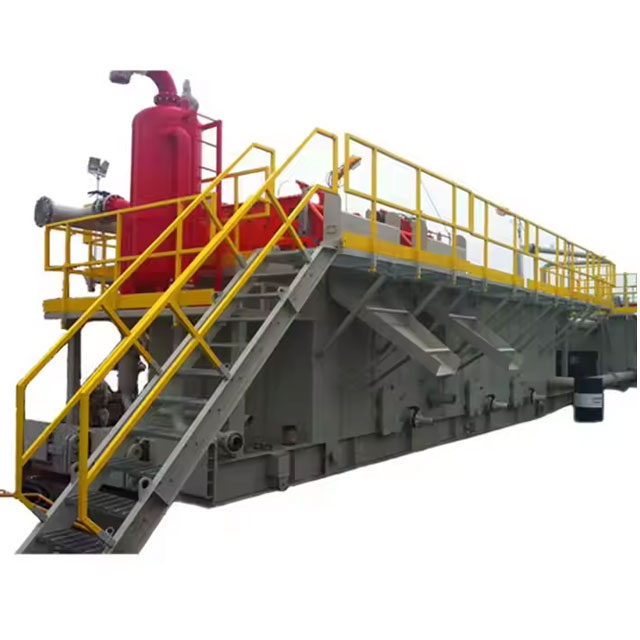

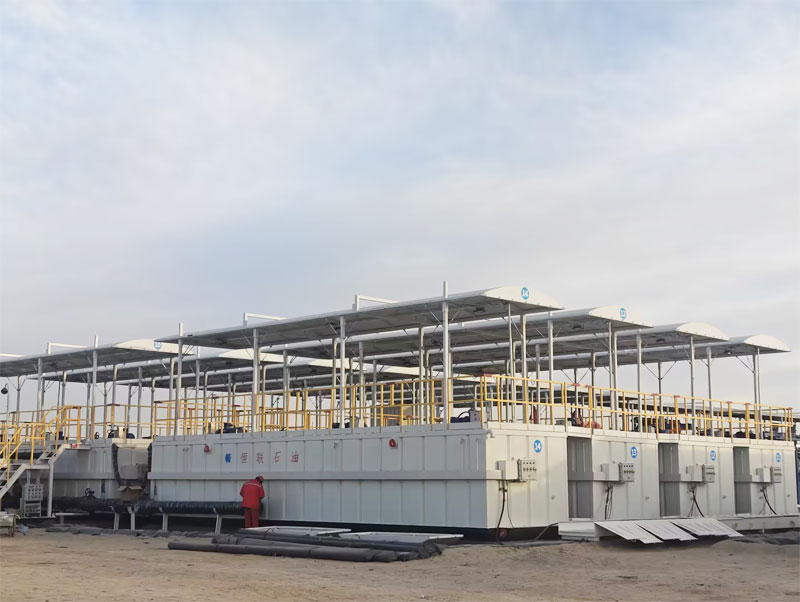

Oil Rig Solids Control System Using Site
