What are the functions of the drilling fluid mud gun?

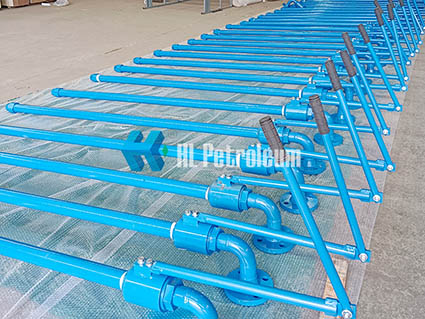

The drilling mud gun can stir the dead corners at the bottom of the mud tank that cannot be stirred by the agitator. The drilling mud gun is an important part of the drilling fluid solids control system. Its function is to use the drilling fluid with a certain pressure and displacement provided by the centrifugal pump to stir the drilling fluid in the liquid tank. The mud gun can stir the dead corners that cannot be stirred by the mud agitator, so that the drilling fluid can be mixed evenly, and it can also be used to clean the sediment at the bottom of the tank.

The structural composition of the drilling mud gun includes ① rotating adjusting rod ② inlet flange ③ rotating adjusting body ④ refueling nozzle ⑤ main body ⑥ nozzle ⑦ stablizer

The working principle of drilling mud gun

After the mud gun obtains the drilling fluid with a certain pressure and displacement from the drilling fluid tank through the centrifugal pump, it is sprayed out through the nozzle. Under the rotation of the rotary handle, the drilling fluid is stirred and mixed, and the bottom of the tank can also be cleaned, removing grit.

Structural characteristics of drilling mud gun

The mud gun adopts the principle of rolling bearing, it can rotate flexibly, and the adjustment range is close to 360 degrees. The sealing adopts the sealing form of the downhole tool, and the sealing is reliable and the service life is relatively long.
