Mud Tank Control Valve
Product Overview:
The mud tank control valve acts as a control valve in the use of drilling mud tanks that are used to control the mud flow during the system operation or mud reserve. It plays an important role in the whole solids control system.

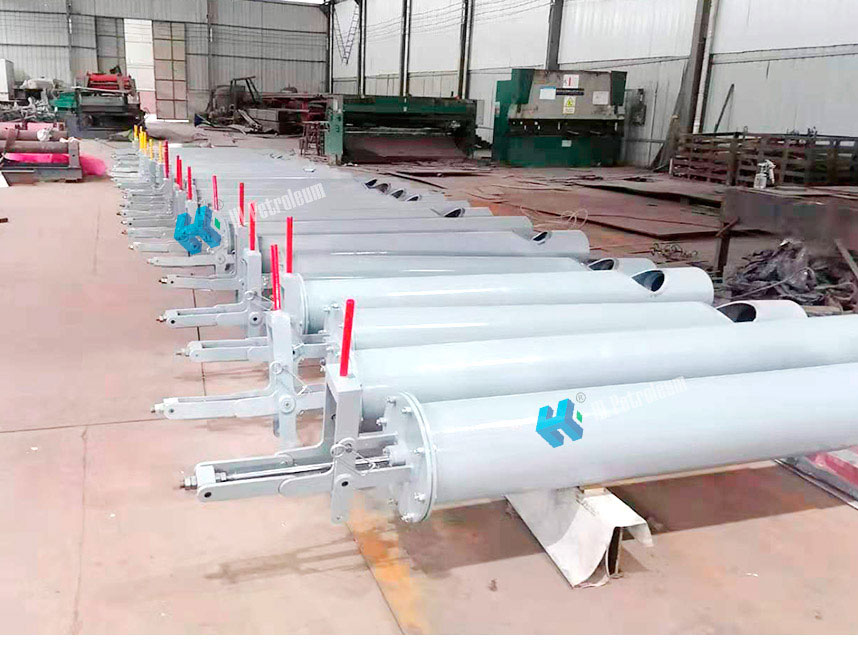

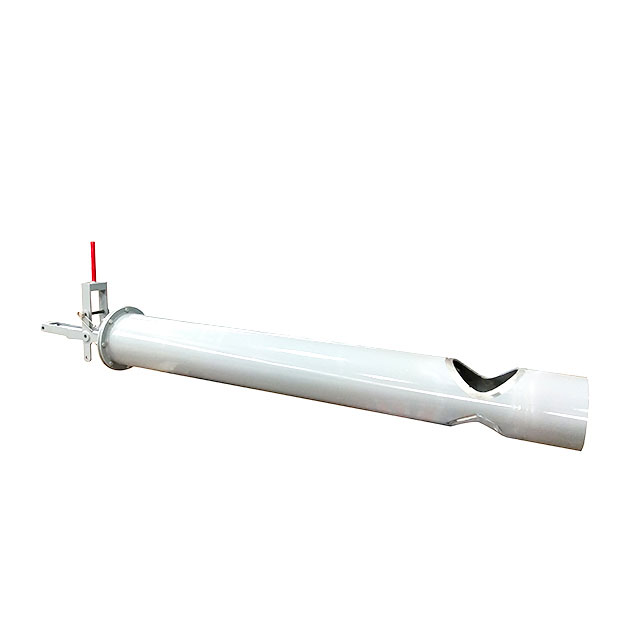

Mud Tank Control Valve Details
The mud tank control valve acts as a control valve in the use of drilling mud tanks that are used to control the mud flow during the system operation or mud reserve. It plays an important role in the whole solids control system.

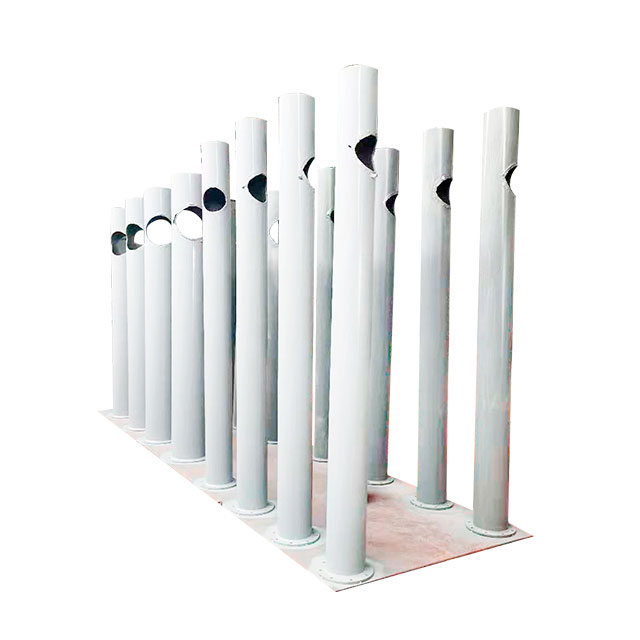

Considering the fluids flow pattern, mud tank valves can be customized into T pattern and cross type, the difference is the suction port design.
According to the pipeline configuration in mud tanks, there are 6", 8", 10", 12" and 14" valves for users' options
Mud Tank Bottom Valve Parameter
|
Model |
HDF150G |
HDF200G |
HDF250G |
HDF300G |
HDF350G |
|
Outlet Dia. |
6" |
8" |
10" |
12" |
14" |
|
Working pressure |
1.1MPa |
1.1MPa |
1.1MPa |
1.1MPa |
1.1MPa |
|
Outlet QTY |
1 or 2 |
1 or 2 |
1 or 2 |
1 or 2 |
1 or 2 |
|
Tank depth |
3050mm |
3050mm |
3050mm |
3050mm |
3050mm |
|
Inlet depth |
2138mm |
2138mm |
2138mm |
2138mm |
2138mm |
At the beginning we have the mud tank control valves configured with a handle wheel, we call it screw type operator. Now we have valves with lever handle for choice as more and more users prefer.
Popular mud tank valves are 8" and 10". For detailed dimensions or sizes, they can be manufactured to suit various customers' tank depth, suction height, suction line requirement, and other special requirements.
The material used for O-Ring for Disc Plunger assembly and other seals used on the flange end is Viton synthetic rubber for high temperature resistance.

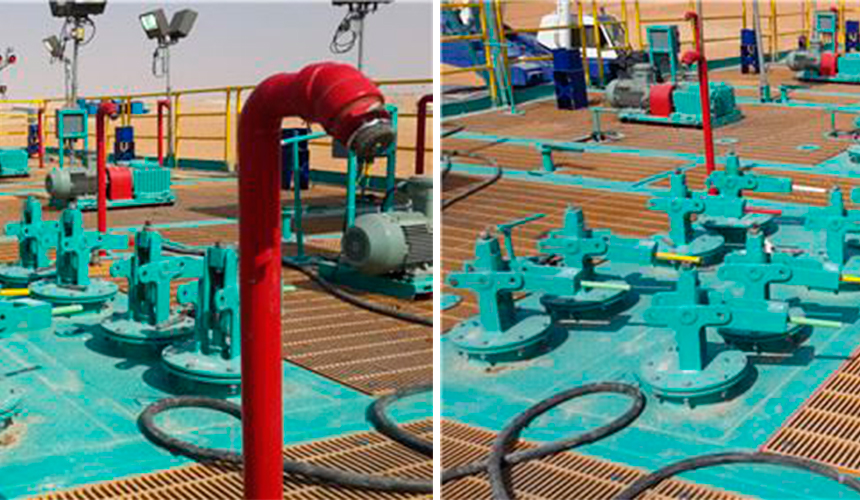

Mud Tank Control Valve Using Site
