Product details
Jet degasser is one of the essential solids control equipment in the oil drilling process. Its main function is to separate the oil-associated gas returned from the wellhead into the mud and the gas invaded into the mud. The processing capacity and separation efficiency of the degasser are the main indicators to measure the performance of the equipment.

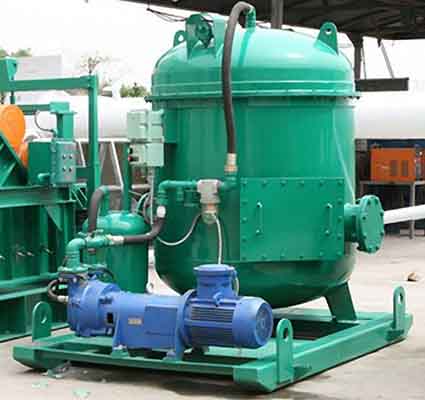

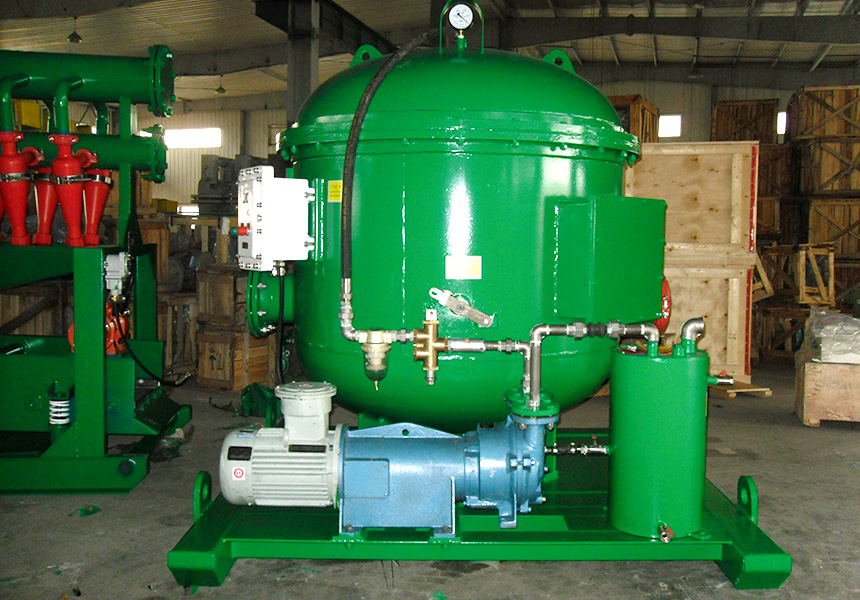

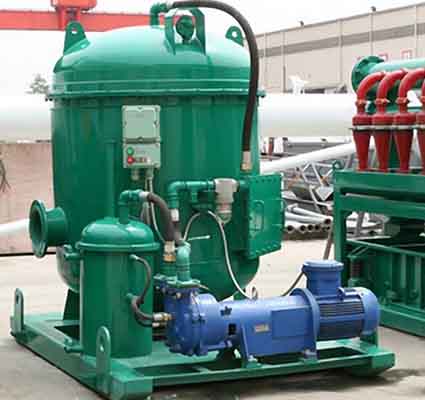

Xi'an HL jet vacuum degasser has the characteristics of large processing capacity, high separation efficiency and wide application range. The jet vacuum degasser has a reasonable and compact structure design and excellent performance. The vacuum tank of the degasser is equipped with a separation umbrella, which improves the separation efficiency; adopts a new type of jet to realize the negative pressure active slurry discharge, which greatly improves the processing capacity of the whole machine.
Jet Degasser Parameters
| Model |
HSCQ180 |
HSCQ240 |
|
Capacity |
180 m3/h(793gpm) |
240 m3/h(1057gpm) |
|
Vacuum |
0.02～0.04MPa |
0.03～0.05MPa |
|
Vacuum Pump motor power |
4 kW |
5.5 kW |
|
Motor speed |
2890r/min |
1450r/min |
|
Separation umbrella area |
63000cm2 |
92041cm2 |
|
Max. swept volume |
1.83 m3/min |
1.83 m3/min |
|
Separation efficiency |
≥92％ |
≥92％ |
|
Feed liquid pump |
SB5*4(30～37kW) |
SB5*4(45～55kW) |
Jet Degasser Features
1. Adopt water ring type vacuum pump suction pump, high efficiency.
2. Multilayer gas-liquid separation umbrella. The application of the liquid, increase unwrapped area, gas to liquid high separation efficiency.
3. Using floater vacuum tank structure to adjust the vacuum, control is simple and sensitive.
4. Mud row by row suction mandatory export large quantity, mud slurry.
5. By gas water separator, both purification of eduction associated gas, and can make the vacuum pump working liquid recycling.

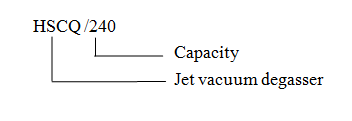

Jet Degasser Model Explanation
Transportation and Lifting
In general, the equipment using bare packaging, transport after the equipment and transport vehicles bind firmly.
When hoisting equipment, must use the flexible steel wire rope in the location of the equipment identified (lifting lug) for hoisting, prohibit the use of vacuum tank upper lifting lug.
Storage
When not using this equipment, it should be stored in a warehouse where the ambient temperature is not lower than -30℃, the relative humidity is not more than 90%, and it is relatively dark.
