Product details

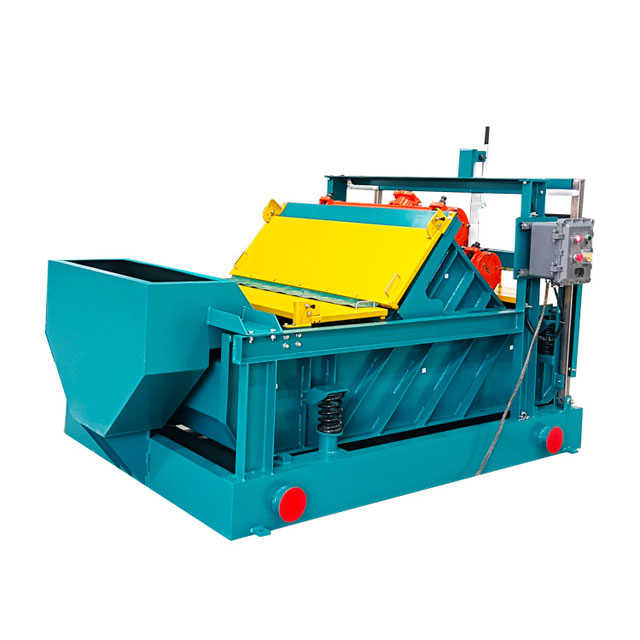

The balanced elliptical motion shale shaker is a new type of mud shale shaker developed by our company based on years of practical experience on site. The shale shaker can be set to operate according to site needs. When the site needs to reduce the mud moisture content, the elliptical motion mode is turned on. The residence time of the mud on the screen surface can be increased to achieve the purpose of reducing the solid water content; when the mud volume at the wellhead is too large, the linear motion mode is turned on at this time, the vibrating screen processing capacity becomes larger, and the drilling fluid can be quickly cleaned.
The balanced elliptical motion shale shaker produced by Xi'an HL has stable performance, low noise, and is suitable for various working conditions. It is an indispensable mud processing equipment in modern drilling engineering.
Balanced Elliptical Motion Shale Shaker Parameters
| Model | HZS604BS | HZS605T | HTZS704 | HTZS804 |
| Vibration mode | Linear/Elliptical | Linear/Elliptical | Linear/Elliptical | Linear/Elliptical |
| Capacity | 144m³/h | 162m³/h | 150m³/h | 166m³/h |
| Screen area | 2.7㎡ | 3.4㎡ | 2.9㎡ | 3.5㎡ |
| Screen size | 4×1165×585mm | 5×1165×585mm | 4×1050×700mm | 4×1080×830mm |
| Motor power | 2×1.8KW+0.4KW | 2.2KW+2.5KW | 2×1.8KW+0.4KW | 2×2.5KW+0.8KW |
| Deck angle | -3°～3° | -1°～5° | -1°～5° | -1°～5° |
| Dimensions | 2650×1700×1750mm | 2850×1750×1650mm | 3200×1912×1640mm | 3400×1912×1640mm |
| Weight | 2050kg | 2450kg | 2130kg | 2330kg |
HL Petroleum is a professional solids control equipment manufacturer.We have more than 20 years of research, design and manufacturing experience.HL Petroleum solids control equipment has long service life and high cost performance. It is a trustworthy brand in the industry!
