HYG Elevated Diesel Tank
Product Overview:
HYG Elevated Diesel Tank offers a fully explosion-proof design, safety and durability, automatic intelligent fueling control, and the option of a heating device, making it a versatile solution suitable for various work environments.
1. Multi-purpose fuel tank with safety and efficiency
2. Explosion-proof design for enhanced durability
3. Automated intelligent fueling control reduces costs
4.Optional heating device for cold weather adaptability
HYG Elevated Diesel Tank Details
The HYG elevated diesel tank is a multi-purpose tank designed for unloading, refueling, and storage. It features a fully explosion-proof design to ensure safety and durability. This means it has special structures and materials in place to effectively prevent explosion accidents and withstand long-term usage.
Equipped with an automatic intelligent fueling control system, this HYG elevated diesel tank helps reduce labor costs. The system can automatically monitor and control the fueling process, ensuring accurate delivery and measurement of fuel. This minimizes the need for manual intervention by operators, saving manpower resources and improving work efficiency.
Furthermore, an optional heating device is available to adapt to cold weather conditions. The heating device maintains the fluidity of the fuel in low-temperature environments, preventing it from solidifying or freezing. This is particularly important for the use of diesel tanks in cold regions or during seasonal cold spells, ensuring that the fuel remains readily available.

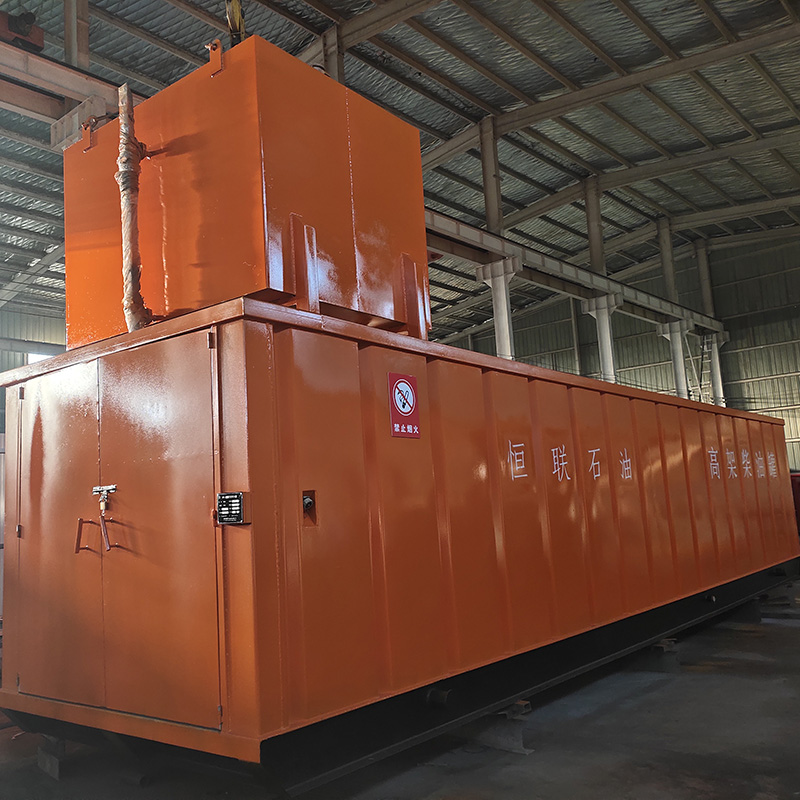

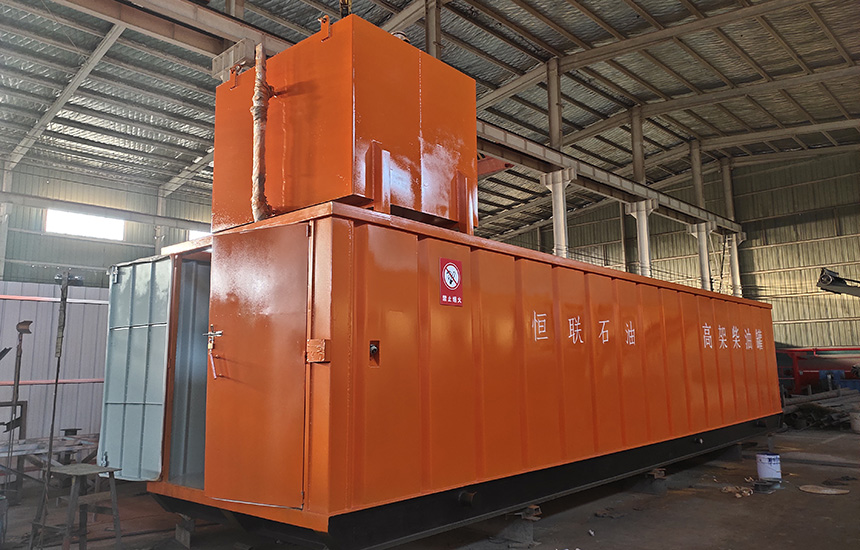

HYG Elevated Diesel Tank Pictures
HYG Elevated Diesel Tank Parameters
|
Product Name |
Model |
Description |
|
Diesel Storage Tank |
HYG5 |
Volume: 5m³; tank diameter: 1200mm; length 5500mm |
|
HYG10 |
Volume: 10m³; tank diameter: 1600mm; length 6000mm |
|
|
HYG15 |
Volume: 15m³; tank diameter: 1800mm; length 7000mm |
|
|
HYG20 |
Volume: 20m³; tank diameter: 2000mm; length 7600mm |
|
|
HYG25 |
Volume: 25m³; tank diameter: 2200mm; length 7700mm |
|
|
HYG30 |
Volume: 30m³; tank diameter: 2400mm; length 7800mm |
|
|
HYG40 |
Volume: 40m³; tank diameter: 2600mm; length 8800mm |
|
|
HYG50 |
Volume: 50m³; tank diameter: 2800mm; length 9300mm |
|
|
HYG80 |
Volume: 80m³; tank diameter: 3000mm; length 13000mm |
|
|
HYG100 |
Volume: 100m³; tank diameter: 3000mm; length 16500mm |
HYG Elevated Diesel Tank Features
1. Versatile: Suitable for unloading, refueling, and storage purposes.
2. Safety and Durability: Designed with explosion-proof features for enhanced safety and long-lasting performance.
3. Fuel Quality Assurance: Equipped with metering and filtering mechanisms to ensure clean and high-quality fuel.

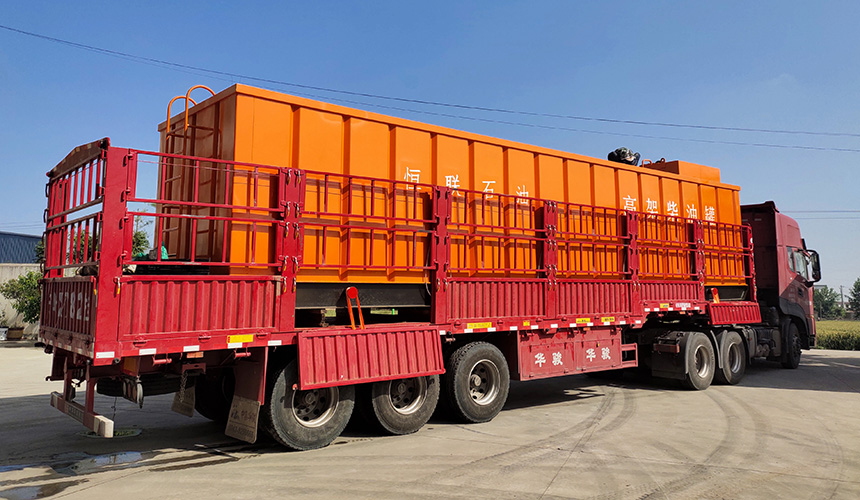

4. Convenient Transportation: The foldable design allows for easy transport without the need for additional power.
5. Cost Savings: Automated intelligent fueling control system reduces labor costs.
6. Cold Weather Adaptability: Optional heating device available to withstand extremely low temperatures.
Xi'an HL Petroleum Equipment Co., Ltd. specializes in the production of elevated diesel tanks, diesel tanks, petroleum storage tanks, circular diesel tanks, square diesel tanks, underground tanks, and more. All our tanks are designed with full explosion-proof features, ensuring safety and durability. We incorporate automatic intelligent fueling control systems to reduce labor costs and increase efficiency. We offer a wide range of models and can also customize tanks according to customer requirements. For any inquiries regarding containment equipment, please feel free to consult us.
