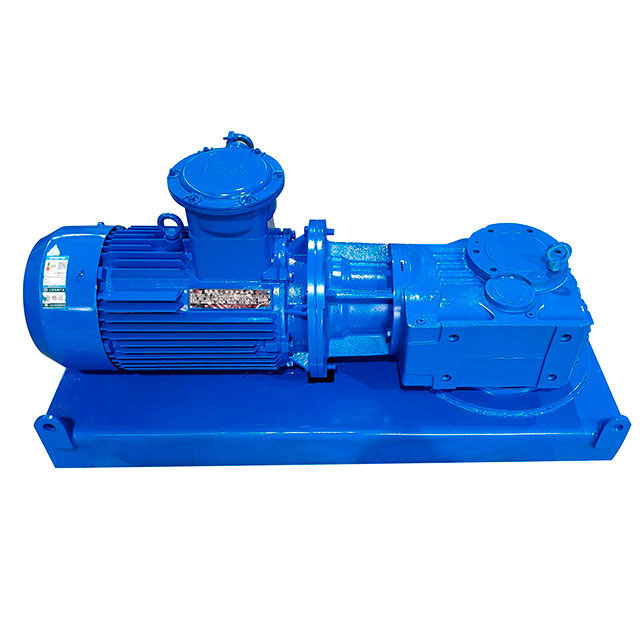

Helical Gear Mud Agitator

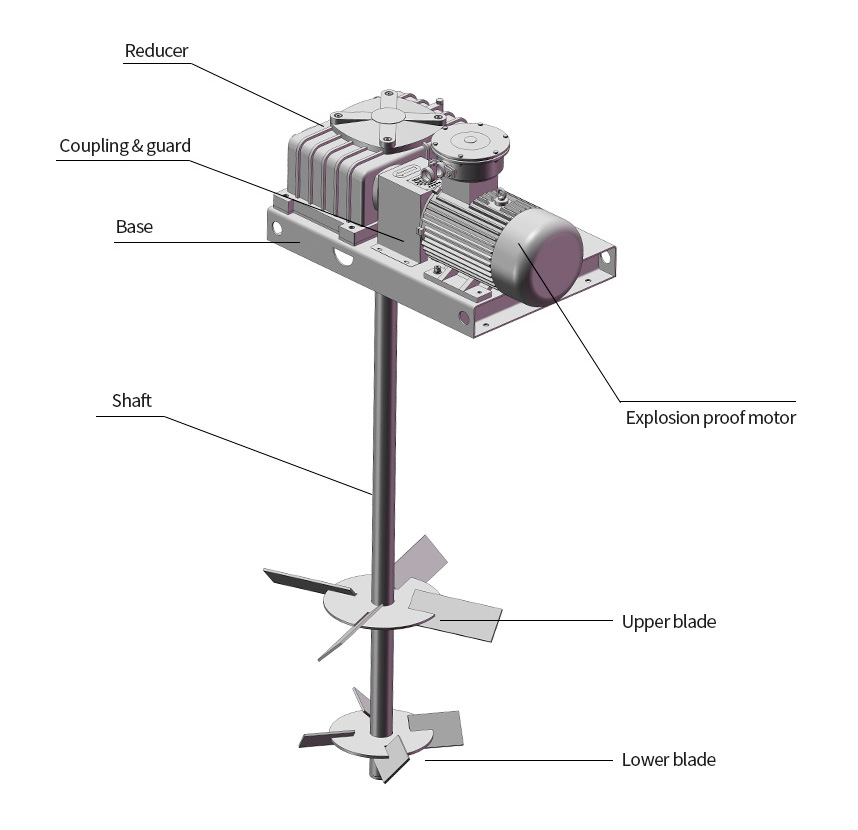

In the oil drilling wave solid control system, the turbine worm agitator is commonly used at present, and some well teams also use the helical gear mud agitator. The turbine worm agitator is composed of an explosion-proof motor, a worm gear reducer, a base and a shaft. , because of its simple structure, large torque, stable performance, and convenient maintenance, it is widely used in major oil fields. The working principle of the mud agitator is that when the explosion-proof motor is running, the input shaft of the reducer is driven to rotate through the elastic coupling. After being decelerated by the reducer, it is transmitted from the output shaft of the reducer, and drives the stirring wave wheel to rotate. When the blades of the shaft come into contact with the drilling wave, it is forced to produce vortex motion, thereby preventing solid phase deposition, and achieving the effect of uniform mixing and uniform density of solid and liquid phases.>>Send an Enquiry sales@hlsolidscontrol.com<<

Helical Gear Mud Agitator Features
1.Helical gear reducer, high transmission efficiency
2.High-strength material, long service life
3.Compact structure, good meshing performance
4.Explosion-proof motor, safe and reliable
5.Double-layer blade design, stirring more fully


>>Send an Enquiry sales@hlsolidscontrol.com<<
Helical Gear Mud Agitator Parameters

Model	HJBX5.5	HJBX7.5	HJBX11	HJBX15	HJBX18.5
Motor power（kw）	5.5	7.5	11	15	18.5
Blade speed（rpm）	57	57	58	58	58
Blade diameter（mm）	800	850	900	1000	1200
Weight（kg）	295	400	462	560	78
