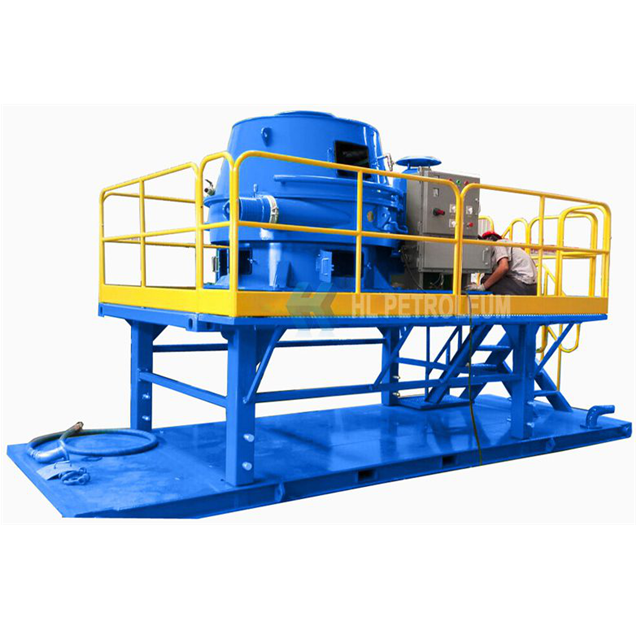

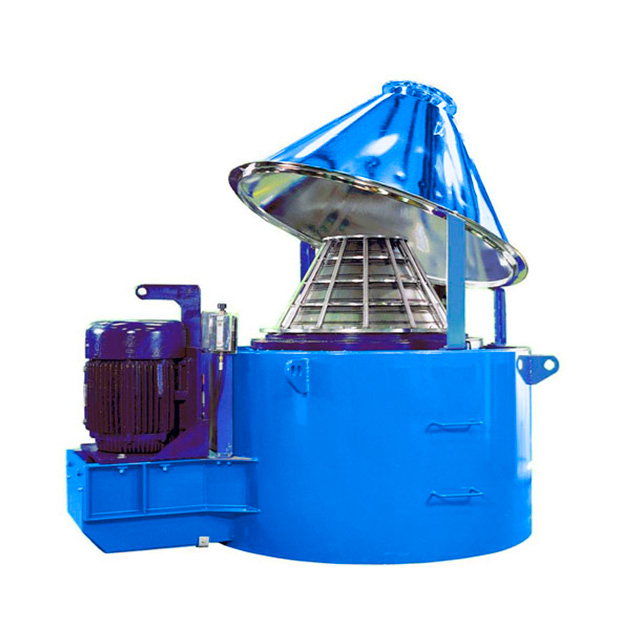

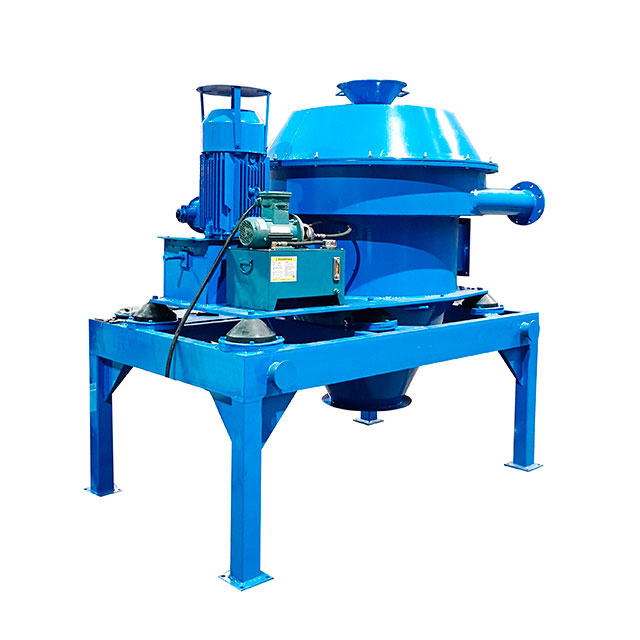

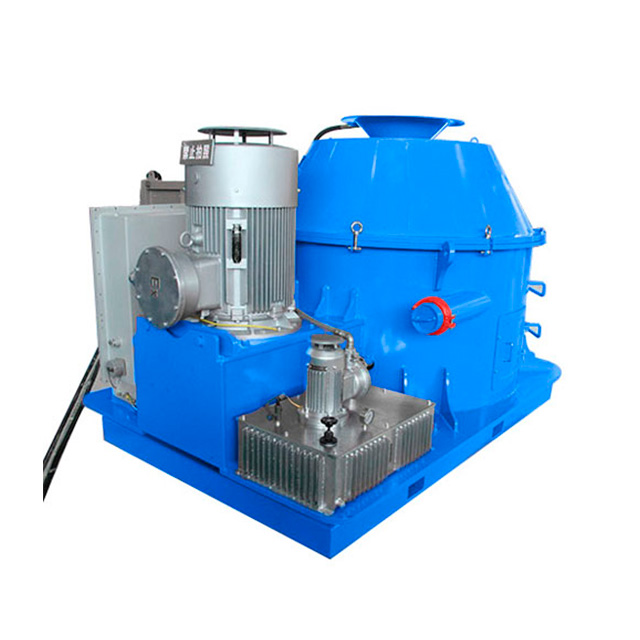

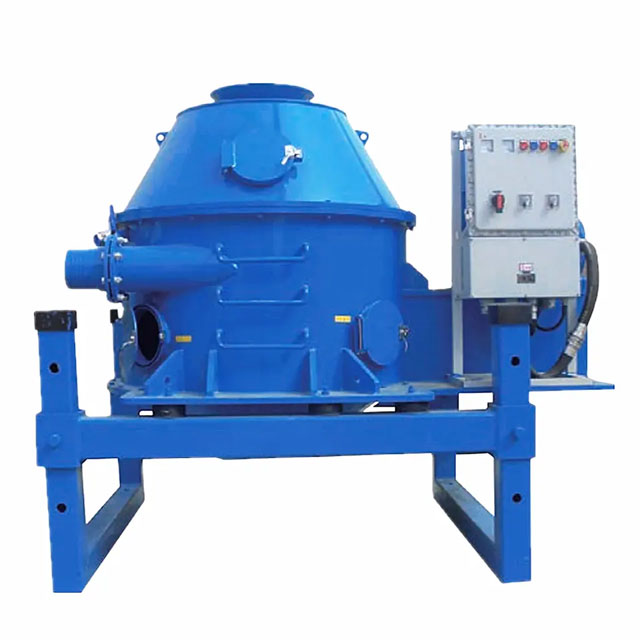

Vertical Cuttings Dryer

Vertical cuttings dryer is an important equipment in drilling waste management system, mainly used for treating oil-based mud(OBM) and composite base mud(SBM). HL Petroleum produces 2 models of vertical drilling cuttings dryers with different processing capacities, HSG700 and HSG1000. The dryer uses the centrifugal force generated by high-speed rotation as the filtering driving force to separate the liquid phase from the solid phase separated by the vibrating screen. The separated liquid phase is further separated and treated to meet the requirements and purposes of reuse, thereby achieving the reduction of drilling cuttings waste.

Technical Data >>Send an Enquiry sales@hlshiyou.com<<

Model	HSG700	HSG1000
Capacity(Ton/h)	5～15	30～50
Feeding particle size(mm)	0～13	0～13
Screen diameter(mm)	720	930
Rotation speed(rpm)	700	900
G-Force(G)	621	420
Motor power(KW)	22	55
Drive mode	Soft starting	Soft starting
Dimension (mm)	2200×1690×2150	3420×2395×2620
Weight(KG)	3500	4350

The Features of HL Petroleum vertical cuttings dryer

* Large processing capacity, strong anti-blocking ability, integrated design, more convenient installation and transportation.

* Integrated lubrication station design, dual functions of lubrication and heat dissipation, easier installation and maintenance.

* High-hardness surface spray scraper and high-strength wear-resistant screen basket ensure long service life.

* Adjustable speed, logic electronic control, multiple safety protections.

* Marine anti-corrosion coatings and processes, suitable for use in harsh outdoor environments.

Delivered Cases

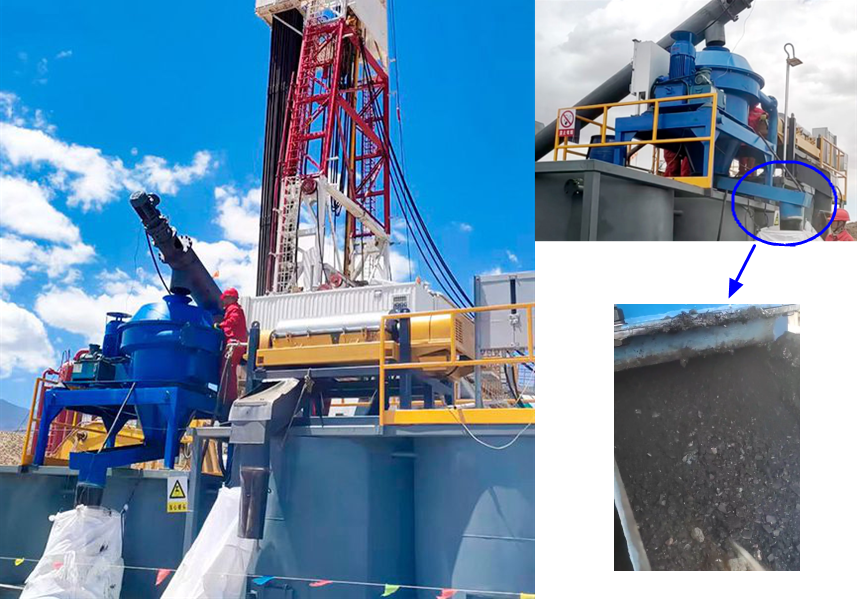

HL Petroleum actively provides reliable solutions for drilling waste treatment and environmental protection projects in the oil drilling industry. Here is an using site of our HSG700 drilling cuttings dryer.
The oil content of the mud after treatment is less than 10%.
