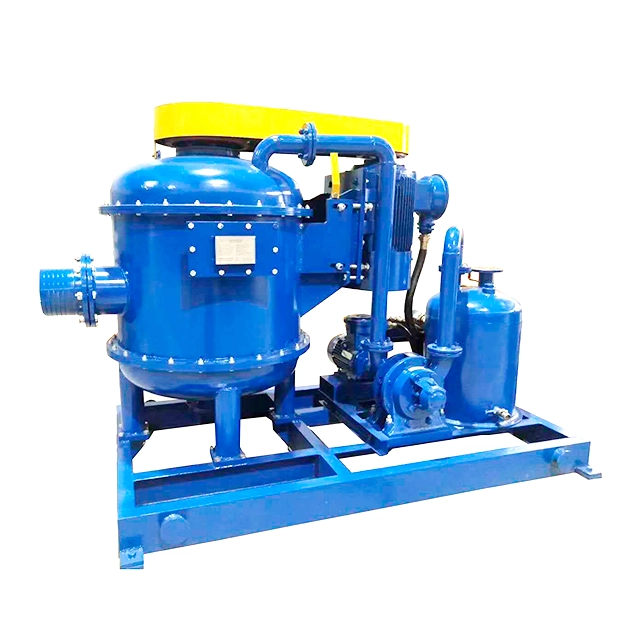

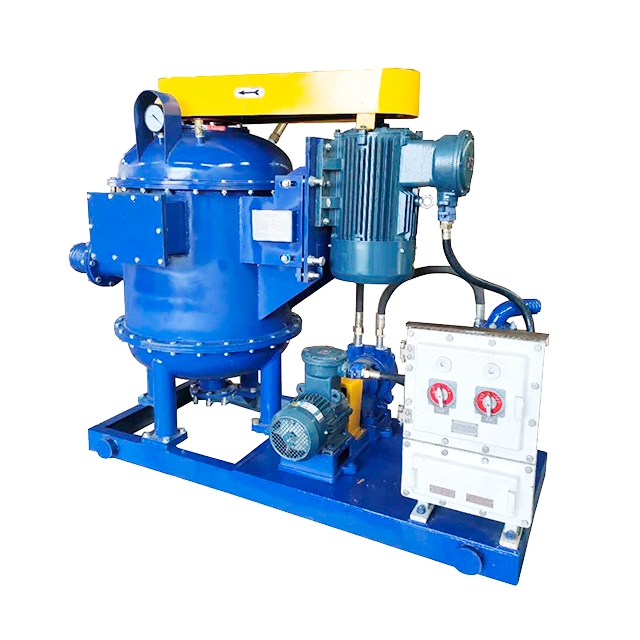

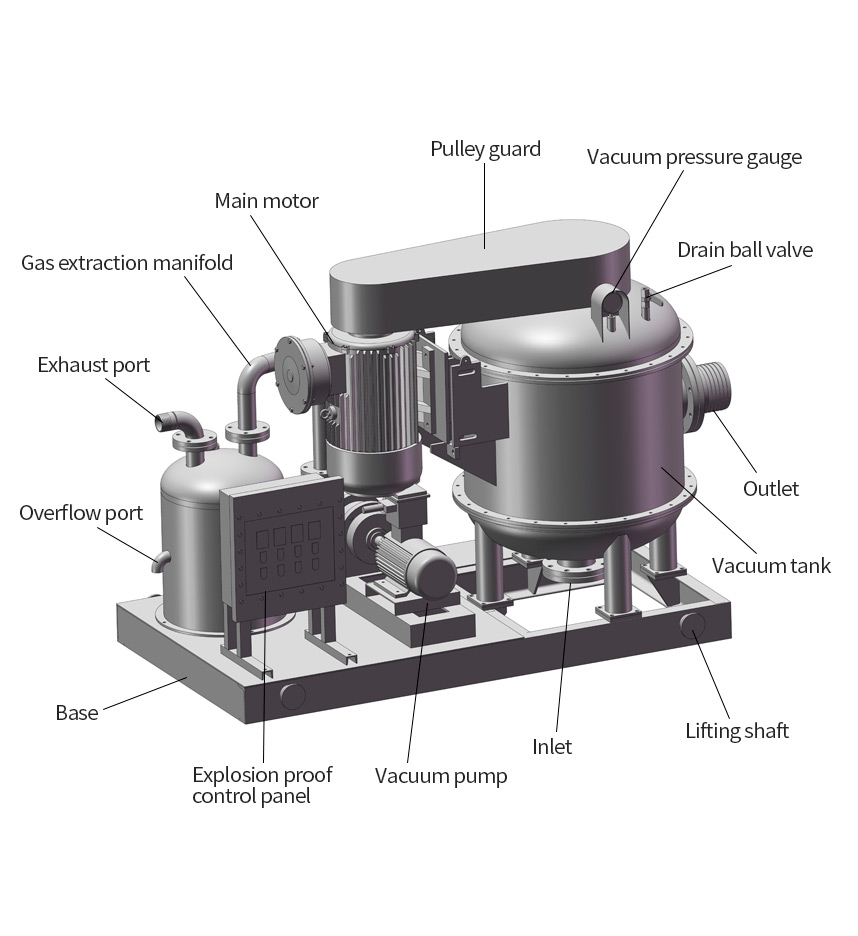

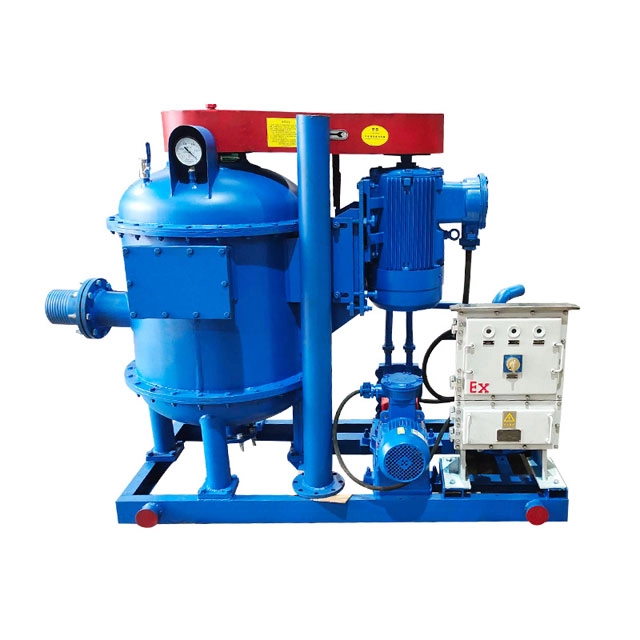

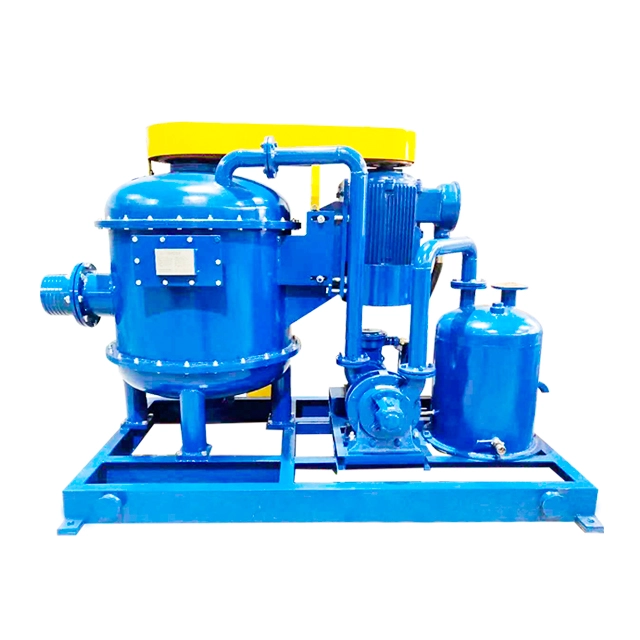

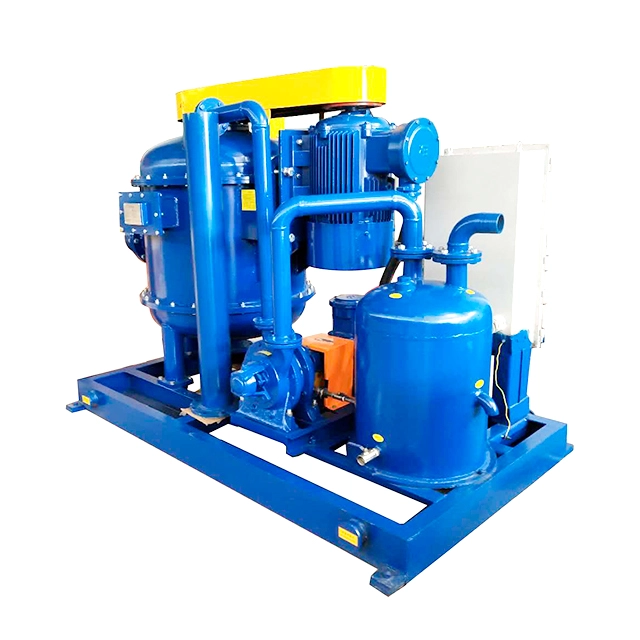

Mud Vacuum Degasser

Mud vacuum degasser is a specialized processing gas immersion fluid degassing equipment, the degassing efficiency is as high as 95%, suitable for all kinds of drilling solid control system of form a complete set, to restore the proportion of mud, the stability of mud viscosity performance, reduce drilling cost, has a very important role. At the same time, also can be used as a powerful agitator. >>Send an Enquiry sales@hlsolidscontrol.com<<

Technical Parameters of Vacuum Degasser >>Send an Enquiry sales@hlsolidscontrol.com<<

Model	HCQ 240	HCQ 270	HCQ 300	HCQ 360
capacity（m³/h）	240	270	300	360
Vacuum ratio（MPa）	-0.030—0.045	-0.030—0.050	-0.030—0.055	-0.040—0.065
Vacuum pump power（KW）	2.2	3	4	7.5
Speed（r/min）	860	870	876	880
Applicable mud gravity（g/cm³）	≤2g/cm³	≤2g/cm³	≤2.5g/cm³	≤2.5g/cm³
Master motor power（KW）	15	22	30	37
Dimension	1750×860×1500mm	2000×1000×1760mm	2250×1330×1650mm	2400×1500×1850mm
Weight	1100kg	1350kg	1650kg	1800kg

The processing capacity and separation efficiency of the drilling fluid degasser are important indicators to measure the performance of the equipment. The processing capacity indicates the ability of the drilling fluid degasser to process mud, usually measured in flow or volume units. The separation efficiency refers to the ability of the degasser to separate the gas from the mud, generally expressed as a percentage. High throughput and high separation efficiency can ensure the efficient operation of the degasser, ensure the quality and performance of drilling fluid, and improve drilling efficiency and safety. Therefore, in the oil drilling process, it is very important to choose a drilling fluid degasser with appropriate performance. >>Send an Enquiry sales@hlsolidscontrol.com<<

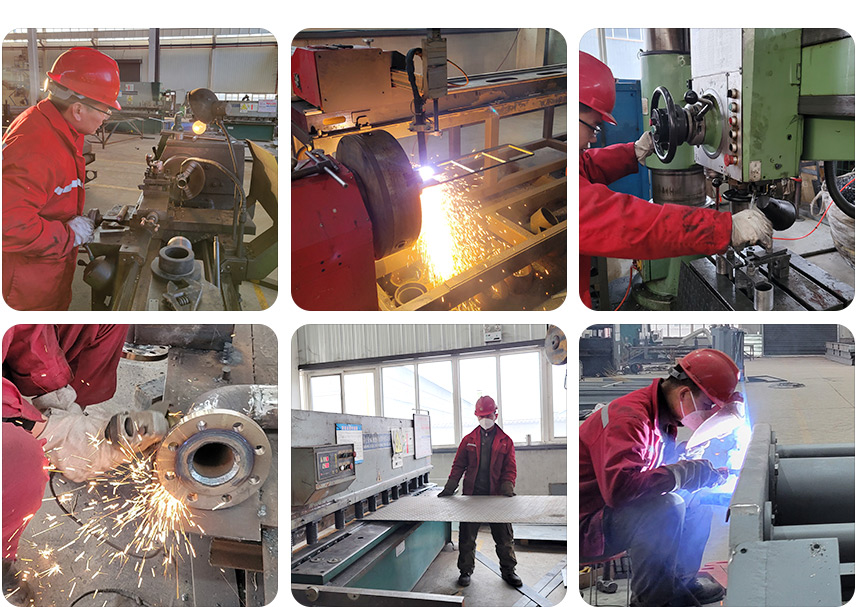

Processing Pictures

Xi'an HL Petroleum Equipment Co., Ltd. is a company specializing in the production and development of solids control equipment. It provides various types of products and supports customized services. If you are interested in drilling fluid degasser or other products, welcome to consult. You can contact our sales team to learn more about our product specifications, customization options, prices and more. We will wholeheartedly provide you with high-quality products and professional services.

Welcome all friends in oilfield drilling and gas drilling to communicate, HL Petroleum is ready for your requirements.
