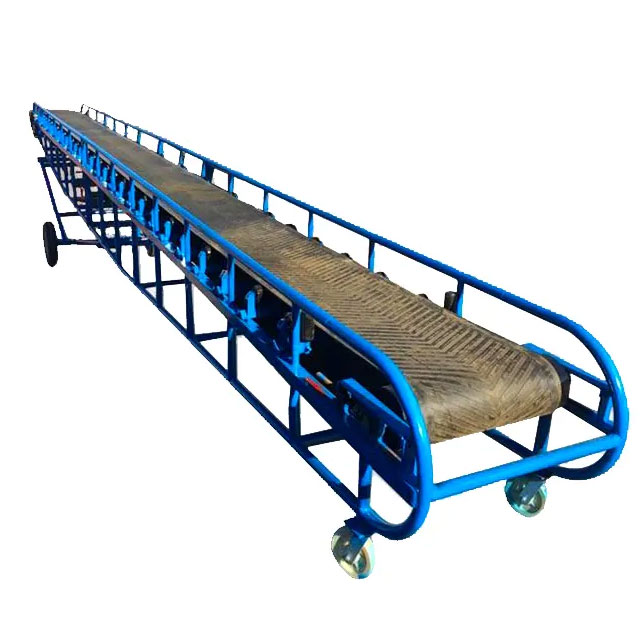

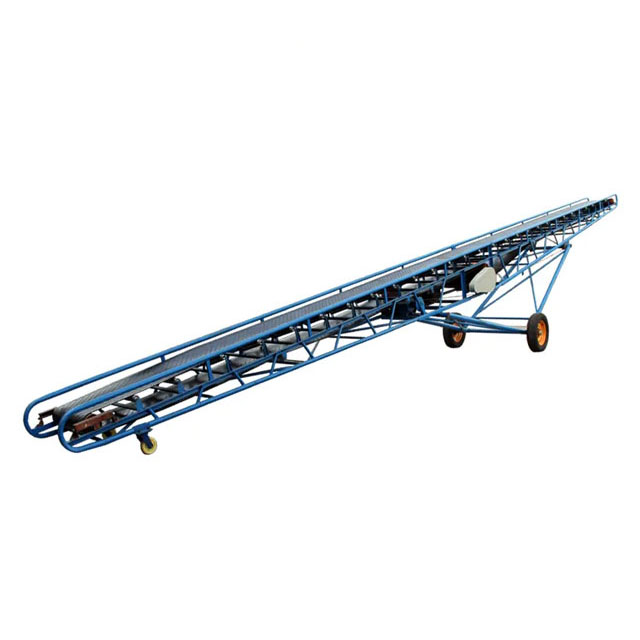

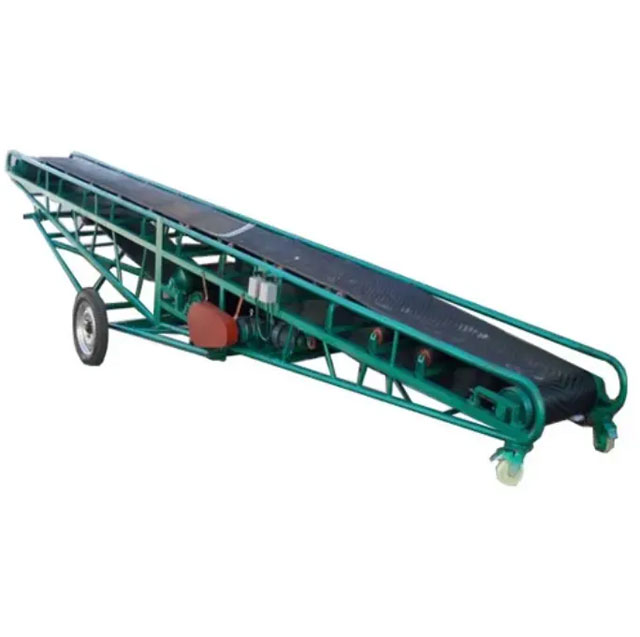

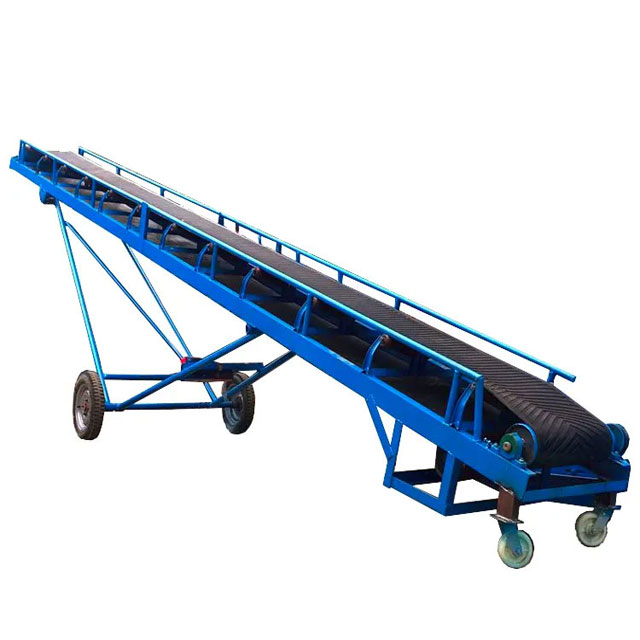

Belt Conveyor
Product Overview:
Belt conveyors can be widely used in various industries such as metallurgy, mining, coal, ports, power stations, building materials, chemicals, light industry, petroleum, etc. The conveyor is a single or multi-unit composite transportation system to transport materials, and can transport a loose density of 5000 -2500kg/m3 of various bulk materials and finished items.
Belt Conveyor Details
Belt conveyors can be widely used in various industries such as metallurgy, mining, coal, ports, power stations, building materials, chemicals, light industry, petroleum, etc. The conveyor is a single or multi-unit composite transportation system to transport materials, and can transport a loose density of 5000 -2500kg/m3 of various bulk materials and finished items.
Xi'an HL belt conveyor can meet the requirements of horizontal and inclined conveying, and it can also adopt a conveying form with a combination of convex arc, concave arc section and straight section. The speed of the belt conveyor conveying materials depends on the bandwidth, belt speed, groove angle and the inclination angle also depends on the frequency of the occurrence of bulk materials. The suitable working environment temperature of the conveyor is generally -25～+40℃. For special environments (heat-resistant, cold-resistant, waterproof, anti-corrosion, explosion-proof, flame-retardant, etc.) For the working belt conveyor, corresponding protective measures shall be taken separately.
Belt Conveyor Parameters
|
Roller Type |
Belt Speed（m/s） |
Belt Width(mm) |
||||||||
|
500 |
650 |
800 |
1000 |
1200 |
1400 |
|||||
|
Conveying Capacity (t/s) |
||||||||||
|
Groove type |
0.8 |
78 |
131 |
- |
- |
- |
- |
|||
|
1.0 |
97 |
164 |
278 |
435 |
655 |
891 |
||||
|
1.25 |
122 |
206 |
348 |
544 |
819 |
1115 |
||||
|
1.6 |
156 |
264 |
445 |
696 |
1048 |
1427 |
||||
|
2.0 |
191 |
323 |
546 |
853 |
1284 |
1748 |
||||
|
2.5 |
232 |
391 |
661 |
1033 |
1556 |
2118 |
||||
|
3.15 |
- |
- |
824 |
1233 |
1858 |
2528 |
||||
|
4.0 |
- |
- |
- |
- |
2202 |
2996 |
||||
|
Flat type |
0.8 |
41 |
67 |
118 |
- |
- |
- |
|||
|
1.0 |
52 |
88 |
147 |
230 |
345 |
460 |
||||
|
1.25 |
66 |
110 |
184 |
288 |
432 |
588 |
||||
|
1.6 |
84 |
142 |
236 |
368 |
553 |
753 |
||||
|
2.0 |
103 |
174 |
289 |
451 |
677 |
922 |
||||
|
2.5 |
125 |
211 |
350 |
546 |
821 |
111 |
||||
