shear type jet mud mixer

Hello! Today we will introduce this shear type jet mud mixer! This device is a special equipment for preparing or weighting drilling mud. It can uniformly add polymers and other materials into the drilling fluid after shearing, thereby adjusting the mud density, viscosity, water loss, and other important performance parameters.

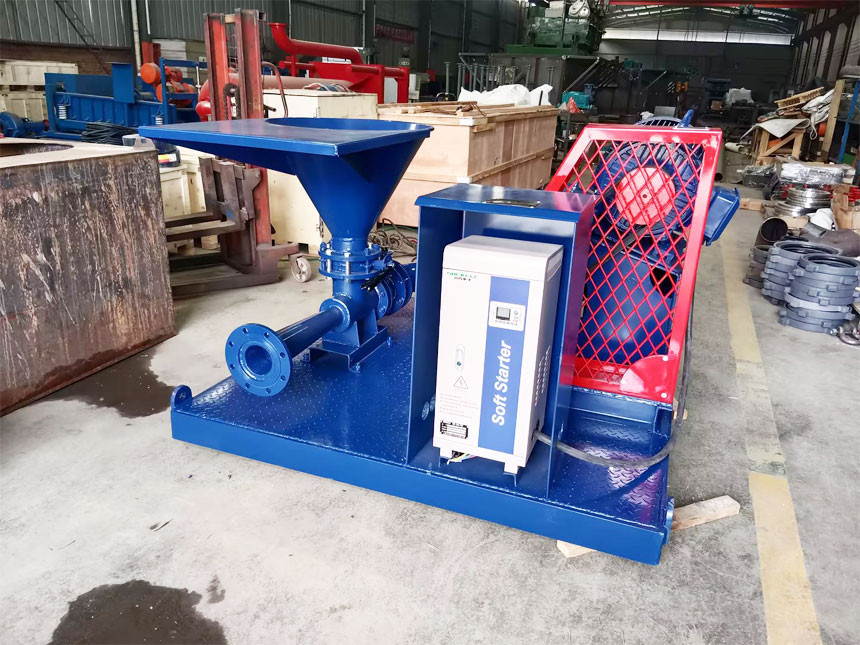

This mud mixer is mainly composed of a shearing pump, a jet mixing hopper and manifold valves, and is equipped with a magnetic starter. The electric motors are all explosion-proof, explosion-proof grade is BT4, and the protection grade is IP55, stable performance, safe and reliable !

Q1: Why can't pour the material into the mud tank directly, isn't it faster and more convenient?

Answer: If it is poured directly, the mud material will be sediment or blocking, then can’t get dispersed or uniform drilling fluid.

Question 2: What are the requirements for the pipeline of this mud mixer before installation?

Answer: This is a good question and also very important! Our mud mixer is divided into suction pipe and discharge pipe. The shorter the distance between the suction pipe and the tank, the better! The pipe material is recommended to use steel pipe or rubber hose with steel wire; The drain pipe is also called the climbing pipe, the smaller the angle, the better! The maximum cannot exceed 60°, and the less turns, the better!

Question 3: How about the service life of this mud mixer?

Answer: Our mixer adopts a jet structure. The nozzle and venturi are the core components of this device. We use wear-resistant cast steel with a thickness of more than 15mm. This mud shearing mixer has a long service life, stable performance, well received by customers.
