What is the advantage of submerged pump

The submerged slurry pump is used in the oil drilling mud solids control system to pump concentrated liquid, heavy oil, oil residue, turbid liquid, mud, and fluid containing mud sand residue and corrosive liquid.

The submerged slurry pump has significant advantages such as high efficiency, maintenance-free, high temperature resistance, and long service life.

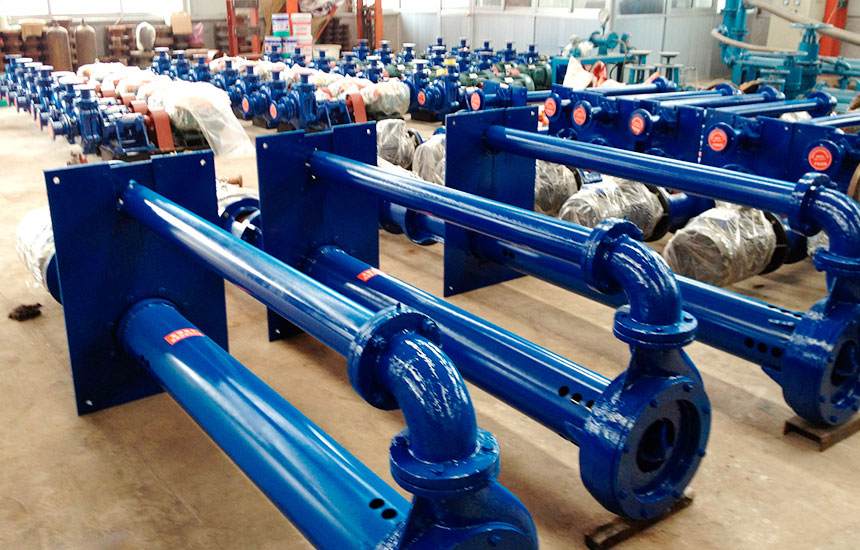

The submerged slurry pump is a vertical single-stage single-suction cantilever centrifugal pump structure.

The impeller is a semi-open impeller, and a stirring impeller is provided at the extension of the suction side of the impeller.

The vertical motor is installed on the motor base and connected to the pump with a coupling.

The pump shaft in the submerged part has sufficient rigidity. There is no bearing between the impeller and the pump body, and no shaft seal is used, which can transport the medium containing a large concentration of solid particles.

The length of the pump inserted into the liquid is between 800mm and 2500mm, and a suction pipe can be equipped if necessary.

The main feature of the submerged slurry pump is that the pump shaft in the submerged part has sufficient rigidity. There is no bearing between the impeller and the pump casing, and no shaft seal is used. It can transport the medium containing a large concentration of solid particles; maintenance-free, High temperature resistance. The length of the pump inserted into the liquid is between 800-1900mm, and a suction pipe can be equipped if necessary. The transmission is installed on the motor base by a vertical motor and connected with the pump by a coupling. Viewed from the direction of the motor, the pump rotates in a clockwise direction.

The flow parts of this series of pumps are made of high-hard alloy castings, and their materials have high abrasion resistance, corrosion resistance, and impact resistance, which can increase their life. In addition, this series of pumps uses dynamic pressure reduction to ensure that the slurry is not easy to leak .
