mud hopper drilling fluids

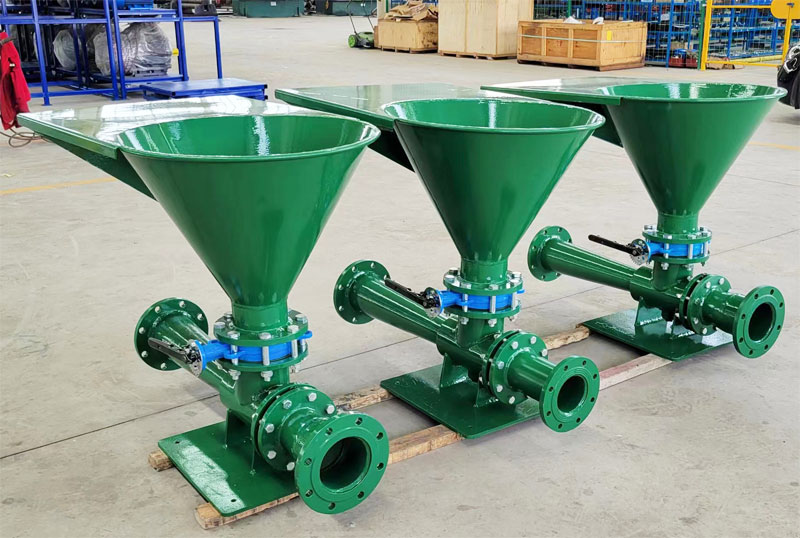

The mud hopper drilling fluids is a device specially used for mixing mud, and its design is based on the Venturi principle. This equipment plays an important role in oilfield drilling and other related fields. The main structure and function of the mud hopper drilling fluids are as follows:

Structure: The main components of the mud hopper drilling fluids include nozzles, mixing chambers, venturi tubes, hoppers and butterfly valves. The high-speed flowing liquid enters the nozzle from the inlet reducer and is ejected into the mixing chamber at a faster speed. At the same time, the mud material to be added enters the mixing chamber from the hopper and mixes with the liquid. The mixed mud then enters the mud tank or other storage equipment through the venturi tube.

Function: The main function of the mud hopper drilling fluids is to quickly and evenly mix the drilling fluid with its additives (such as barite powder, bentonite, salt, mud chemical additives, etc.). This mixing process optimizes the quality of the drilling fluid, gives full play to the role of the additives, and reduces the amount of additives, thereby saving mud costs. In addition, the mud funnel has the characteristics of fast feeding speed and strong mixing ability, which can meet the needs of different drilling conditions.

Type: There are many types of mud hopper drilling fluids, including single-jet mud funnels and double-jet mud funnels. Single-jet mud funnels are suitable for conventional drilling conditions, while double-jet mud funnels are suitable for situations where the drilling mud processing volume is large. These devices can be selected and configured according to specific needs.

In general, the mud hopper is an efficient and practical mud mixing equipment that can improve the quality of drilling fluid, reduce mud costs, and improve drilling efficiency. It has broad application prospects in oilfield drilling and other related fields.
