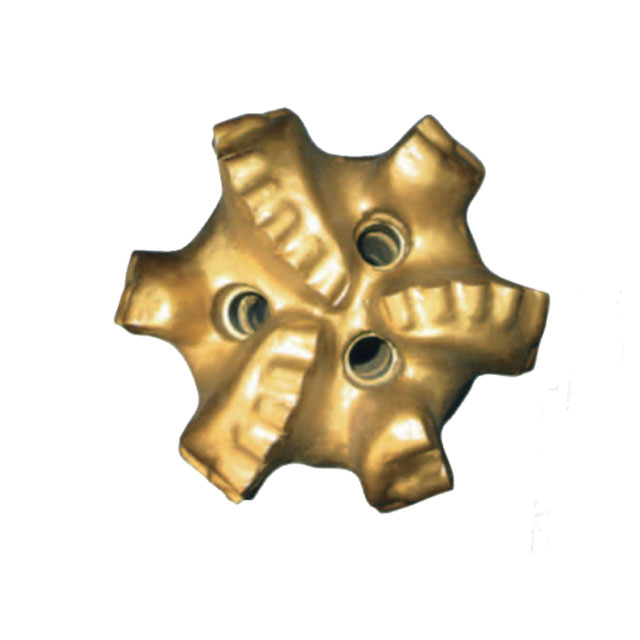

M616-118 PDC bit
Product Overview:
The M616-118mm(4⁵/8") is a kind of medium parabolic profile matrix PDC bit, designed with 13.4mm cutters, heavy cutter density, and blade cutter setting aided by CAD system. It is suitable for drilling soft to medium-hard formations, and suitable for rotary, top-drive and down-hole motor applications.

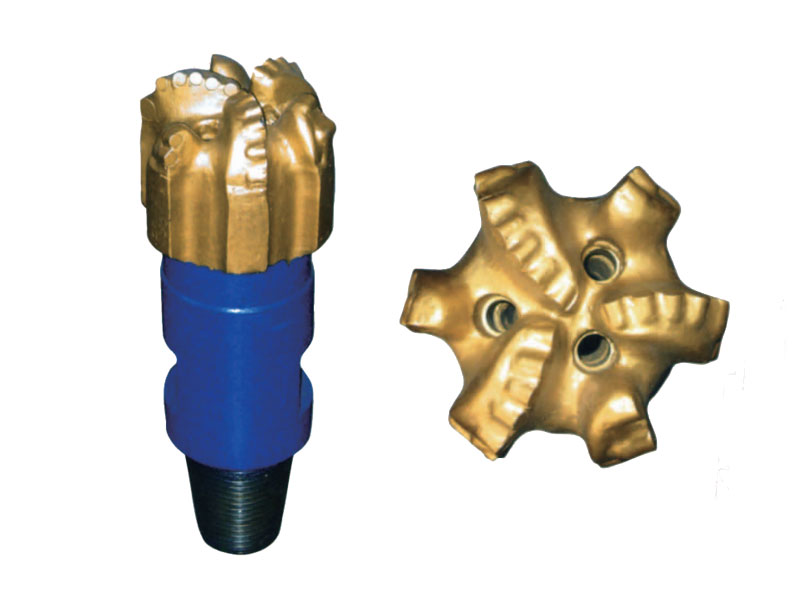

M616-118 PDC bit Details
The M616-118mm(4⁵/8") is a kind of medium parabolic profile matrix PDC bit, designed with 13.4mm cutters, heavy cutter density, and blade cutter setting aided by CAD system. It is suitable for drilling soft to medium-hard formations, and suitable for rotary, top-drive and down-hole motor applications.
Drill Bit Features
Cutters: 13.4mm x 15
Blades: 6
Nozzles: 3
Total length: 370mm
Make-up face to nose: 285mm
Gauge length: 50mm
API pin: 2⁷/8 REG
Shank OD: 95mm
Shank length: 170mm
Recommended Drilling Parameters
WOB: 2~12 10³lbs
Rotation speed: 60~300 rpm
Flow rate: 130~240 gpm
Torque: 4.6~5.1 kft ·lbf
