Mud Pump Air Bag Capsule
Product Overview:
The mud pump air bag capsule, also referred to as a pulsation dampener, is a crucial component located at the discharge end of the mud pump.
Mud Pump Air Bag Capsule Details
The mud pump air bag capsule, also referred to as a pulsation dampener, is a crucial component located at the discharge end of the mud pump. It is installed at one end of the hydraulic discharge pipe to ensure stability. The air case operates at a working pressure equivalent to 80% of the mud pump's working pressure. When utilizing the air bag capsule, it is important to disassemble the empty bag and relieve the pressure beforehand. The KB-45 air package is utilized for F500/F800 mud pumps, while the KB-75 air package is employed for F1000/F1300/F1600 mud pumps. Our company manufactures intermediate pull rods using 35CrMo, which undergo chrome plating and fine grinding to enhance corrosion resistance and achieve a smooth surface finish.

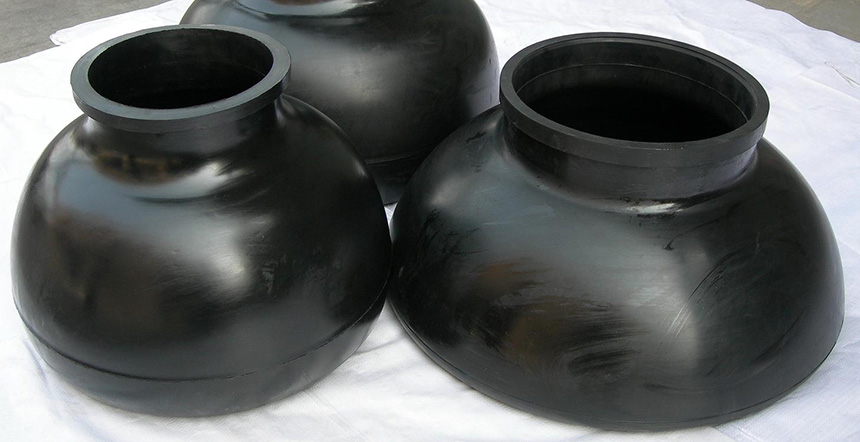

Mud Pump Air Bag Capsule Pictures
Mud Pump Air Bag Capsule Features
Mud pump air bag capsule have the characteristics of absorbing pressure pulsation, smooth flow, increasing system life, simplifying maintenance, high pressure resistance and improving work efficiency. These characteristics make it play an important role in the mud pump system, providing reliable mud delivery and pumping effect.
The purpose of the air bag capsule in the mud pump is to utilize the internal volume of the air bag to effectively store and compensate for the liquid being discharged into a specific section of the pump's pipeline. This helps reduce the hydraulic shock caused by the pumped liquid.
When the mud pump's instantaneous displacement exceeds its average displacement, the pressure in the discharge line rises momentarily, resulting in compression of the gas volume within the air bag.

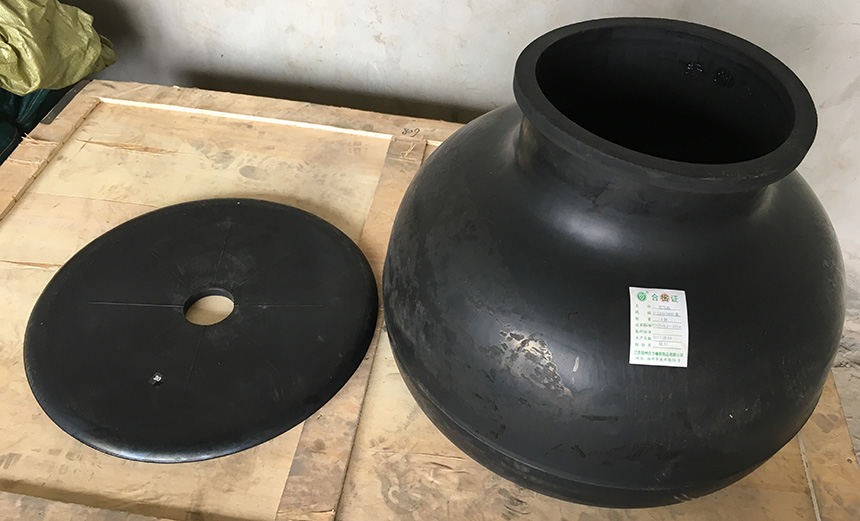

Mud Pump Air Bag Capsule Pictures
Mud Pump Air Bag Capsule Features
Mud pump air bag capsule have the characteristics of absorbing pressure pulsation, smooth flow, increasing system life, simplifying maintenance, high pressure resistance and improving work efficiency. These characteristics make it play an important role in the mud pump system, providing reliable mud delivery and pumping effect.
The purpose of the air bag capsule in the mud pump is to utilize the internal volume of the air bag to effectively store and compensate for the liquid being discharged into a specific section of the pump's pipeline. This helps reduce the hydraulic shock caused by the pumped liquid.
When the mud pump's instantaneous displacement exceeds its average displacement, the pressure in the discharge line rises momentarily, resulting in compression of the gas volume within the air bag.
